6/02
4-145
DC1632/2240
REP 14.4, REP 14.5
Repairs and Adjustments
Prelaunch Training/Review
REP 14.4 Rear Left Middle Cover
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Open Left Cover Assembly.
3. Remove Power Switch Cover (REP 14.5).
4. Remove Upper Rear Left Cover (Figure 1).
a. Remove Screw (1).
b. Lift slightly to disengage hidden tab and remove Upper Rear Left Cover.

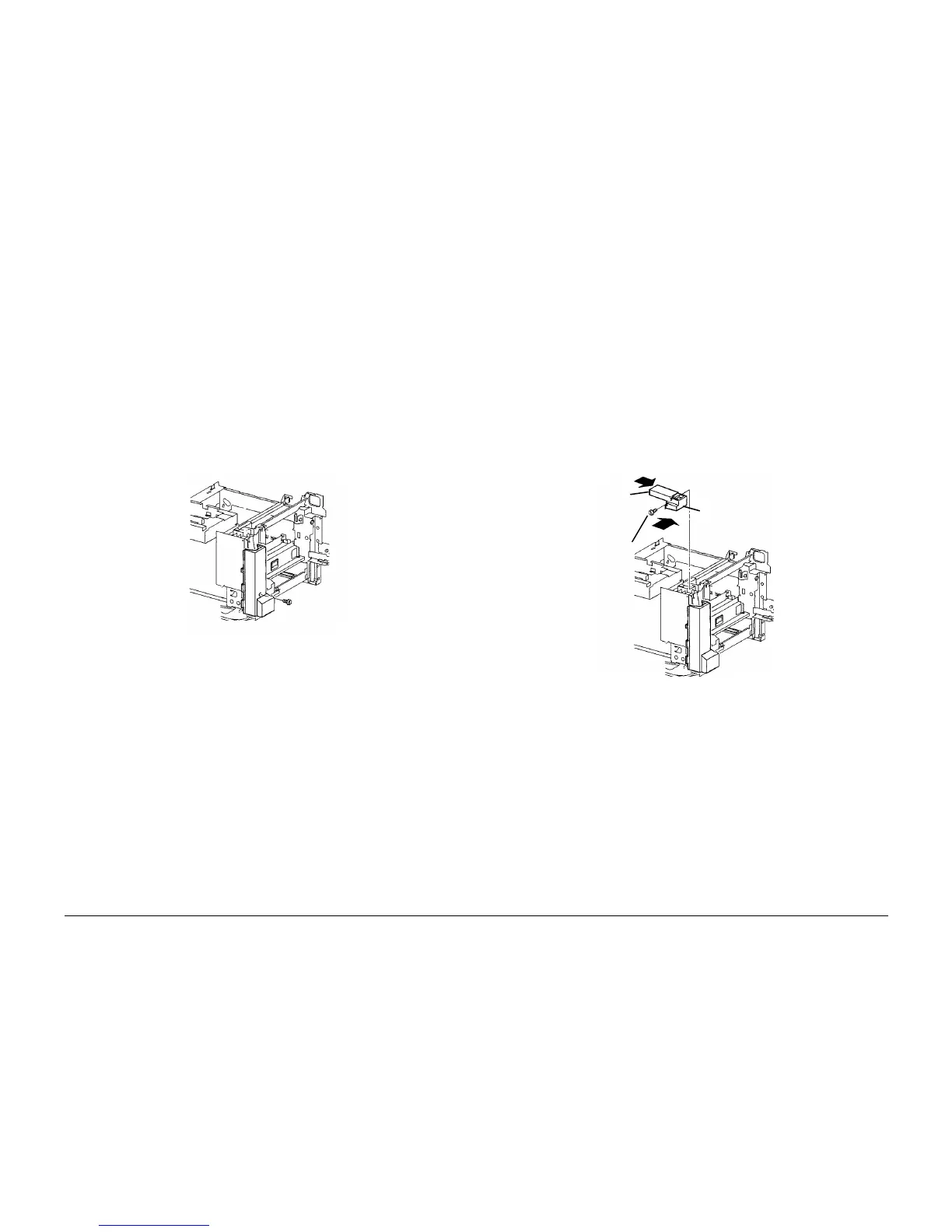

Figure 1 Removing Upper Rear Left Cover
REP 14.5 Rear Left Upper Cover
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Open Left Cover Assembly.
3. Remove Power Switch Cover (Figure 1).
a. Remove Screw (1).
b. Push end of cover in direction shown to release Hidden Tabs (2).
c. Pull up to release Hidden Tab (1) and remove Power Switch Cover.
Figure 1 Removing Power Switch Cover
Hidden
Tabs (2)
Hidden
Tab (1)
Screw
