Repairs and Adjustments
Prelaunch Training/Review
REP 7.7 Tray 4
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 4.
2. Remove Tray 4 (Figure 1).
a. Pull out Tray 4.
b. Remove Transport Screws (2).
c. Remove Tray Lock Screws (2).
d. Remove Tray Lock.
e. Pull out Tray 4 to remove it.

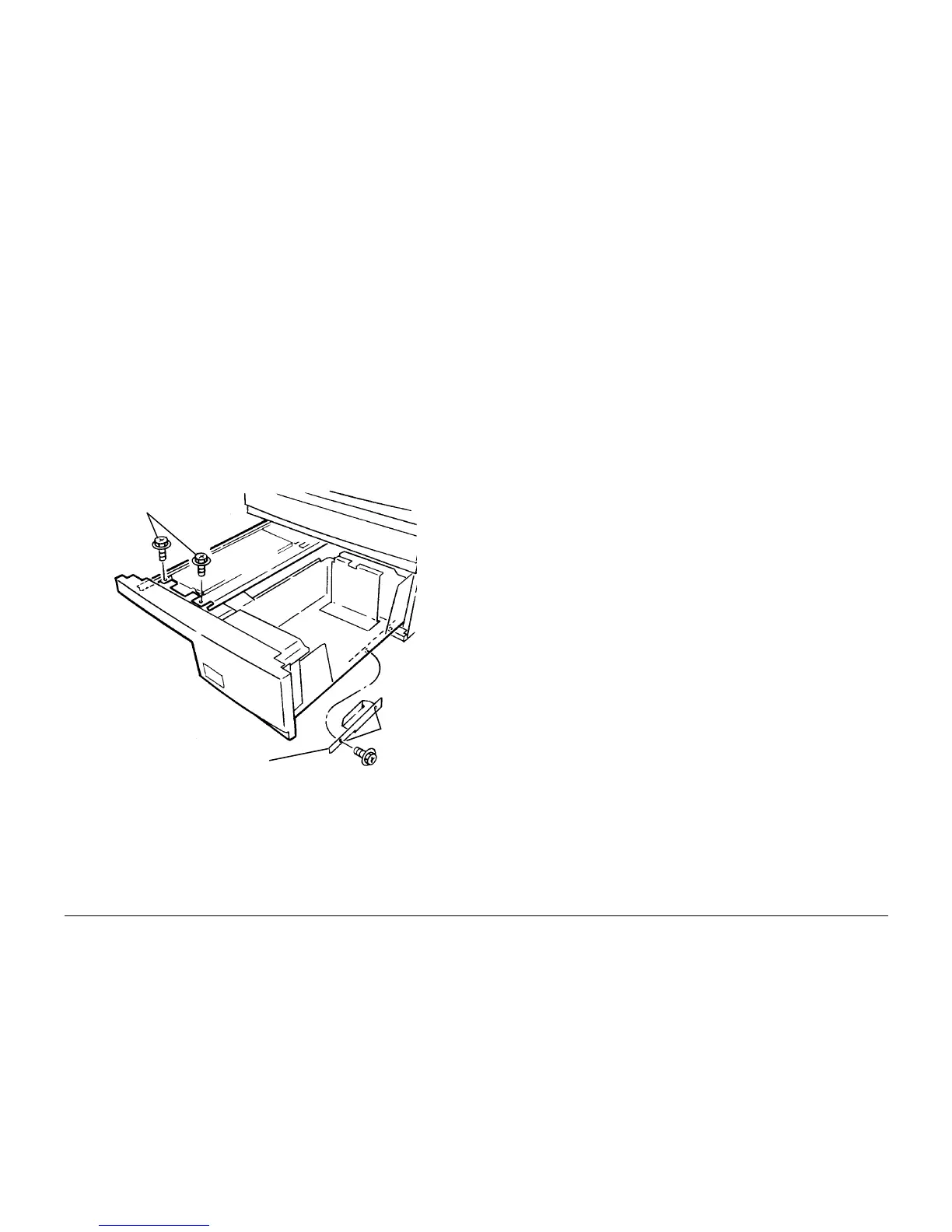

Figure 1 Removing Tray 4
REP 7.8 Tray 1
Parts List on PL 2.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 1.
2. Lift end of tray to disengage lock on rail (not visible) and remove tray.
Transport
Screws (2)
Tray Lock
Tray
Lock
Screws
(2)
