6/02
4-103
DC1632/2240
REP 12.3
Repairs and Adjustments
Prelaunch Training/Review
REP 12.3 Entrance Sensor
Parts List on PL 17.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the H Transport Assembly (REP 12.1).
2. Remove the following:
a. H Transport Front Cover (PL 17.3)
b. H Transport Rear Cover (PL 17.3)
c. Stop (PL 17.3)
3. Remove the Entrance Upper Cover (REP 12.17).

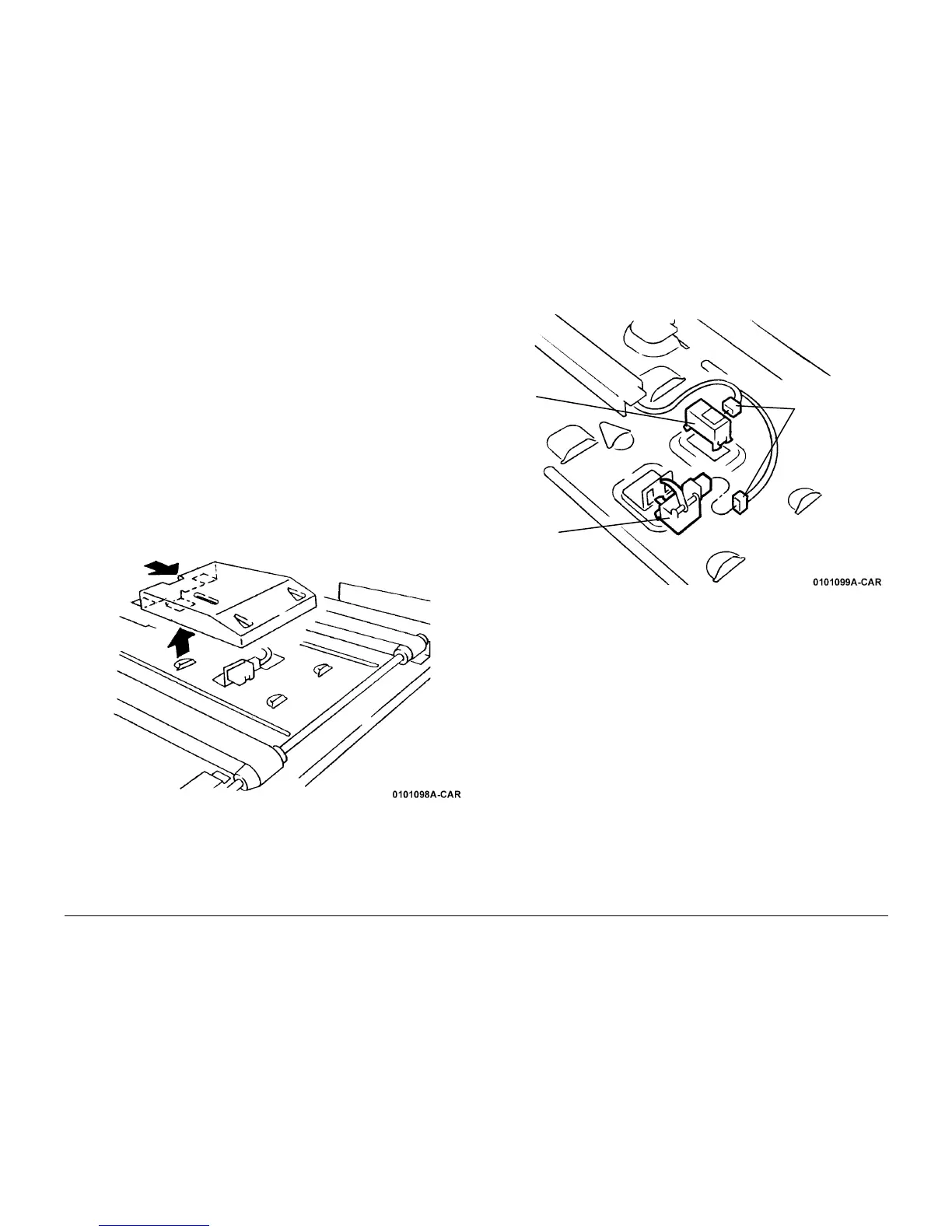

4. Remove the Cover (Figure 1).
a. Push up the hook (2).
b. Remove the Cover, while moving it in the arrow direction.
Figure 1 Removing the Cover
5. Remove the H Transport Entrance Sensor and Top Tray Full Sensor (Figure 2).
Figure 2 Removing Entrance Sensor and Top Tray Full Sensor
Entrance
Sensor
Top Tray Full
Sensor
Disconnect
and Remove
Sensors
To Next Page
