Xerox DocuColor 1632 Service Manual

6/02
4-79
DC1632/2240
REP 9.14, REP 9.15
Repairs and Adjustments
Prelaunch Training/Review
REP 9.14 MOB Sensor Assembly
Parts List on PL 1.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Cartridge (REP 9.4).
3. Remove Fuser Front Cover (REP 14.8).
4. Release and move Xerographic Release Lever half way down.
5. Remove Dispenser Assembly Cover (REP 9.6).
6. Remove Waste Toner Agitator (REP 9.13).
7. Remove MOB Sensor Assembly (Figure 1).
a. Open Harness Clip and remove harness from Clip.
b. Remove Screw and remove Inner Left Harness Cover.
c. Disconnect Harness P/Jís (3)
d. Remove MOB Sensor Assembly Harnesses (violet) from additional harness clips
(not shown).
e. Remove MOB Sensor Assembly Screw and pull out to remove MOB Sensor Assem-
bly. Xerographic Release Lever must be down as shown.

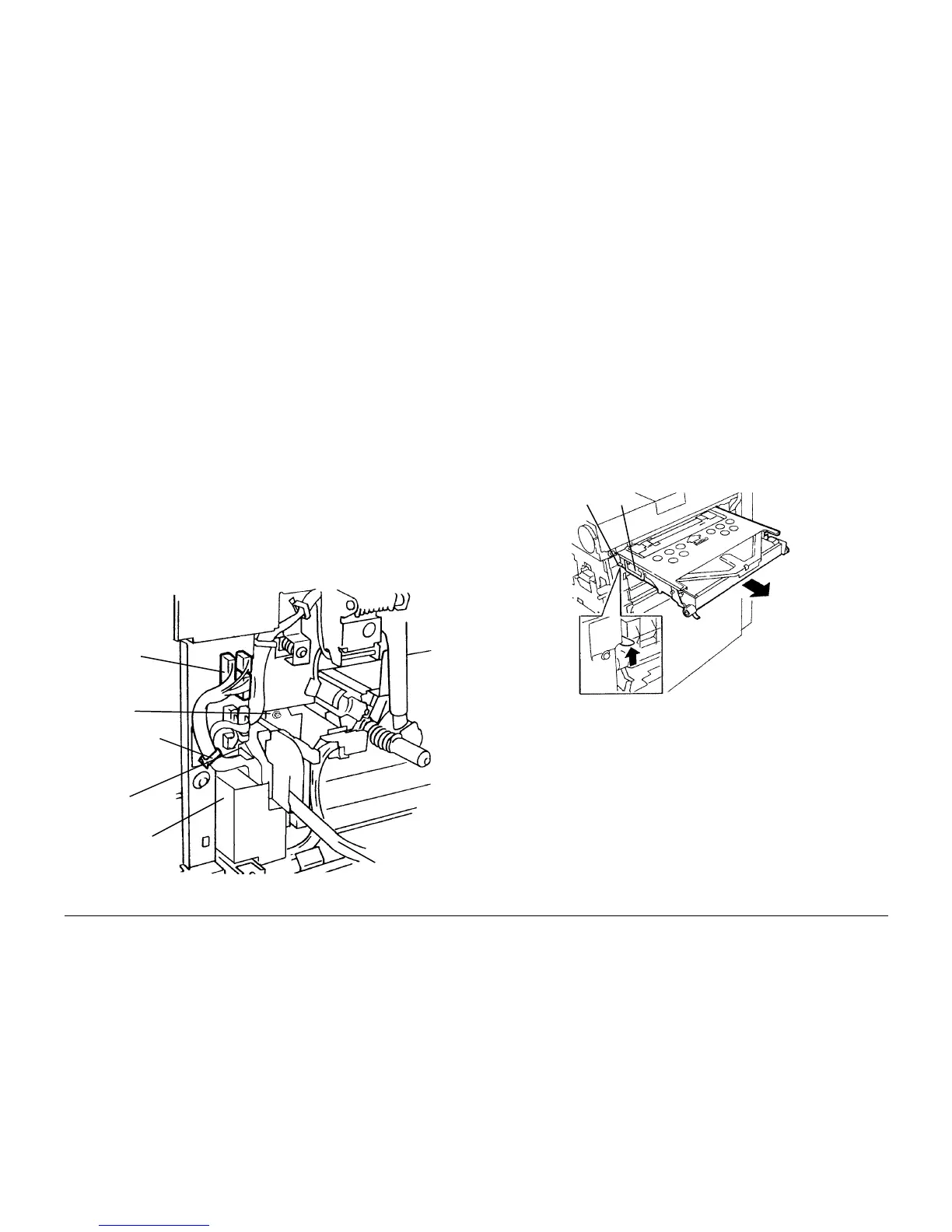

Figure 1 Removing MOB Sensor Assembly
REP 9.15 IBT Belt Assembly
Parts List on PL 5.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Release and move Xerographic Release Lever down.
3. Open Right Side Door.
4. Remove IBT Belt Assembly (Figure 1).
a. Lift to release Slide Lock.
b. Pull out IBT Unit to remove it. Use Handle to transport IBT Unit.
c. Protect IBT Belt Assembly from direct light.
Figure 1 Removing IBT Belt Assembly
Harness Clip
Inner Left
Harness
Cover
Harness
P/Jís (3)
Belt Mark
Sensor
Screw
Xerographic
Release
Lever
Screw
Slide
Lock
Handle
