Xerox DocuColor 1632 Service Manual

6/02
4-120
DC1632/2240
REP 12.11
Prelaunch Training/Review
Repairs and Adjustments
REP 12.11 Stapler Assembly
Parts List on PL 17.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open the Front Cover.
2. Disconnect Stapler P/Jís (2) (Figure 1).

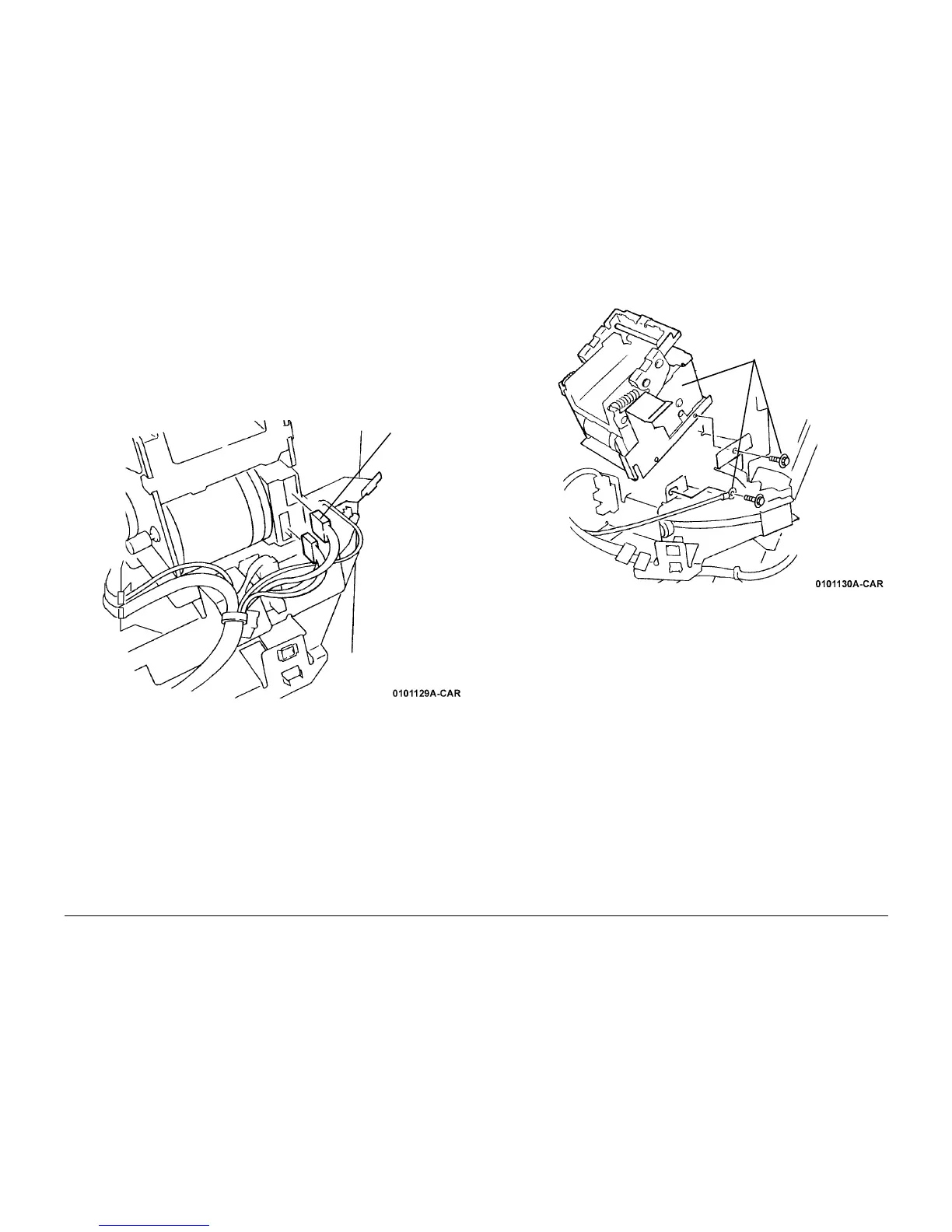

Figure 1 Disconnecting P/Jís
3. Remove the Stapler Assembly (Figure 2).
Figure 2 Removing Stapler Assembly
Disconnect Sta-
pler P/Jís (2)
Remove
Screws (2),
Ground Wire
(1) and Stapler
