6/02
4-22
DC1632/2240
REP 5.5
Prelaunch Training/Review
Repairs and Adjustments
REP 5.5 Feed Motor Assembly
Parts List on PL 20.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 5.18).
2. Remove Feed Motor Assembly (Figure 1).
a. Disconnect connector.
b. Release clamps (3) and remove harness.
c. Loosen Screws (2).
d. Remove Feed Motor Assembly.

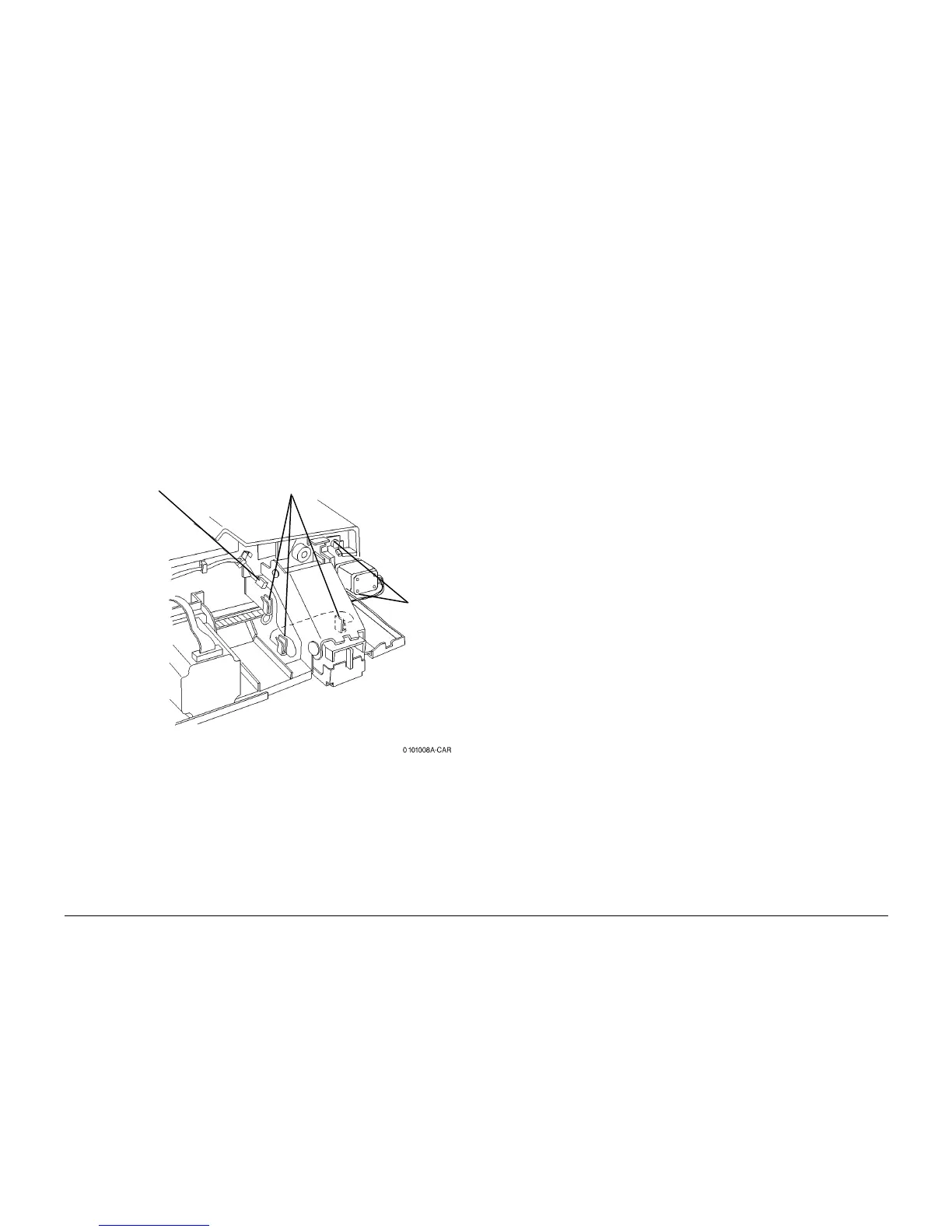

Figure 1 Removing Feed Motor Assembly
Connector
Clamps (3)
Screws (2)
