Xerox DocuColor 1632 Service Manual

6/02
5-7
DC1632/2240
PL 1.1
Parts List
Prelaunch Training/Review

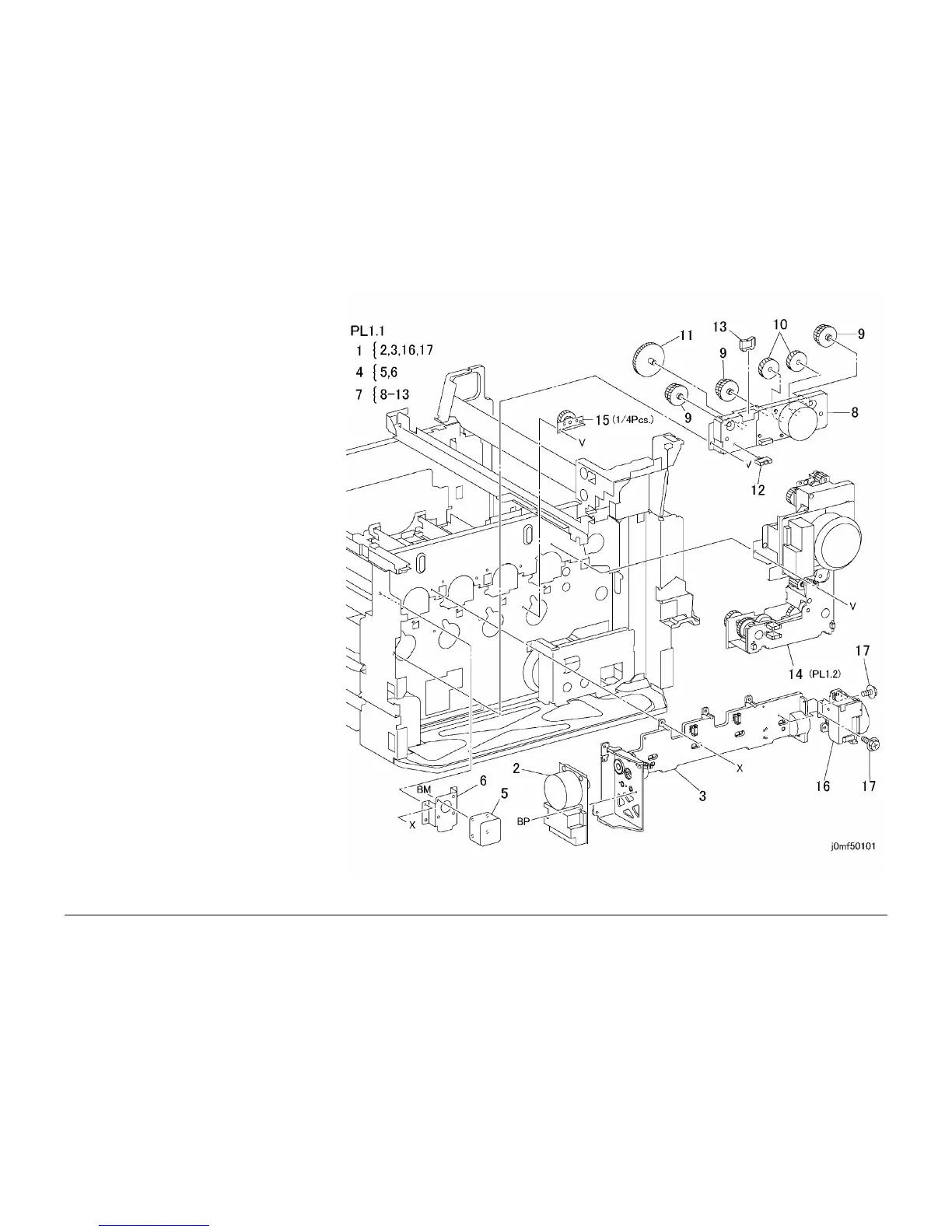

PL 1.1 Drive Unit
Item Part Description
1 007K85750 Drum Motor Assembly (REP 4.4)
2 – Drum Motor (P/O PL 1.1 Item 1)
3 – Gear Bracket (P/O PL 1.1 Item 1)
4 007K87110 IBT Motor Assembly (REP 4.2)
5 – IBT Motor (P/O PL 1.1 Item 4)
6 – Gear Bracket (P/O PL 1.1 Item 4)
7 007K86400 Developer Drive Motor Assembly
(REP 4.3)
8 – Developer Drive Motor (P/O PL 1.1
Item 7)
9 – Gear (47/38T) (P/O PL 1.1 Item 7)
10 – Gear (51/25T) (P/O PL 1.1 Item 7)
11 – Gear (P/O PL 1.1 Item 7) (76T)
12 – Clamp (P/O PL 1.1 Item 7)
13 – Edge Saddle (P/O PL 1.1 Item 7)
14 007K86920 Main Drive Motor Assembly (REP
4.1)
15 007K87220 Developer Gear
16 – Drum Motor (K) (P/O PL 1.1 Item 1)
17 – Screw (P/O PL 1.1 Item 1)
