Xerox DocuColor 1632 Service Manual

6/02
5-78
DC1632/2240
PL 17.13
Prelaunch Training/Review
Parts List

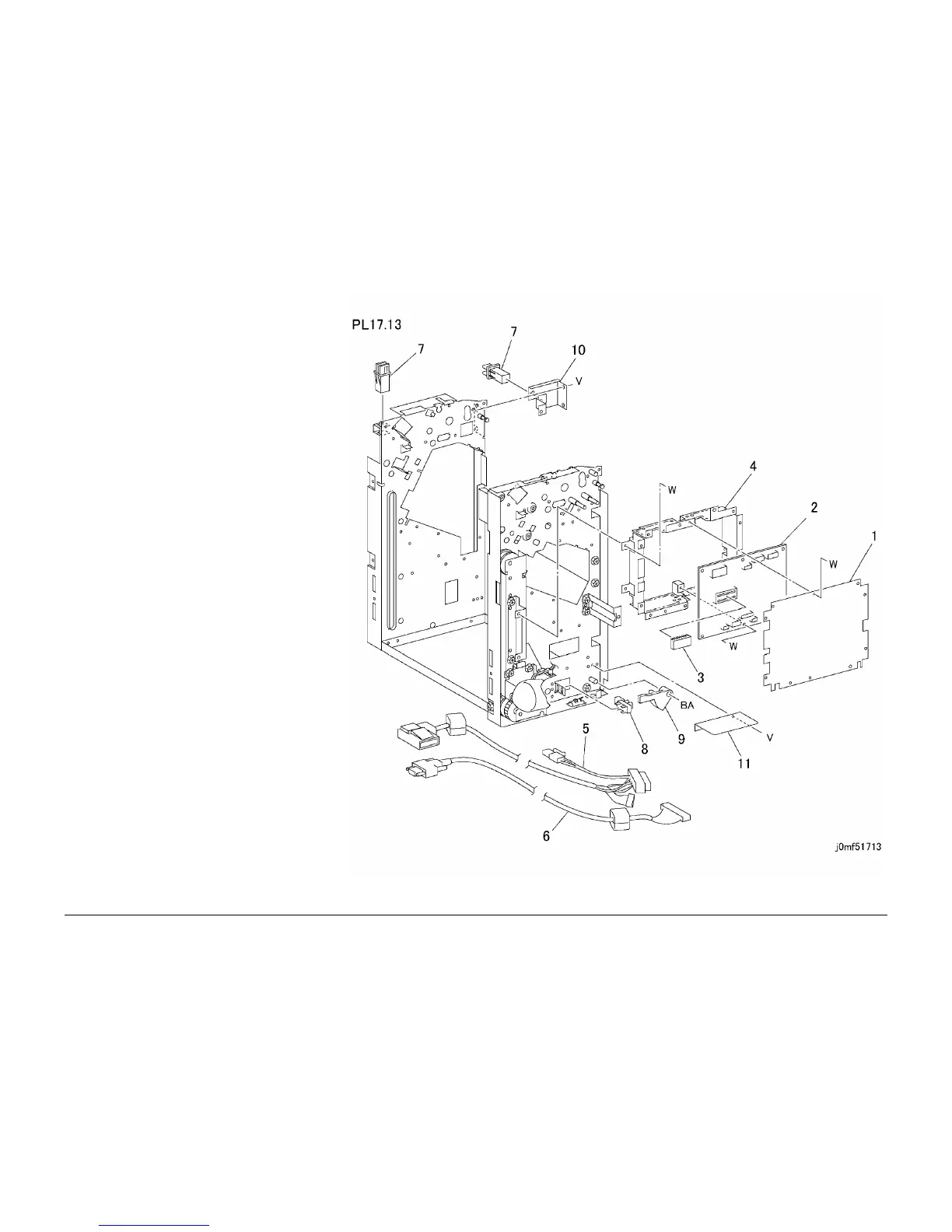

PL 17.13 Electrical Components
Item Part Description
1 – PWB Cover (Not Spared)
2 160K76660 Finisher PWB (REP 12.16)
3 537K64070 ROM
4 – PWB Bracket (Not Spared)
5 962K10120 DC Harness
6 962K10130 Cable
7 110E97990 Top Cover/Front Door Interlock
Switch
8 130E82530 Docking Interlock Switch
9 – Spring Plate (Not Spared)
10 – Bracket (Not Spared)
11 – Plate (Not Spared)
