6/02
2-153
DC1632/2240
9-413, 9-428
Status Indicator RAPs
Prelaunch Training/Review
9-413 Toner Cartridge (K) Near Empty
The Black Toner Cartridge is nearly empty.
NOTE: Continuous running of high density prints can temporally deplete the toner supply.
Initial Actions
ï Ensure that there is toner and the toner is evenly distributed in the cartridge (K).
ï Check the ATC Sensor (K) for blockage or contaminants.
ï Check the drive system from the Main Drive Motor to the Developer Housing (K) for dam-
age.
Procedure
Enter dC330 [009-004]. The Toner Dispense Motor (K) energizes (PL 6.1).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330. Stack the codes [004-004, Main Motor] and [009-013, Dev. Clutch (K)]. The
Black Developer Assy. energizes (PL 1.1).
YN
Go to OF 99-6 Motor Open RAP (refer to BSD 4.1 and BSD 9.13 for circuit).
Check ADJ 9.3. The ATC Sensor (K) fail judgement is OK.
YN
Go the 9-383, ATC Sensor Failure (K) RAP.
After checking that no failures are detected during normal operation, go to call closeout.

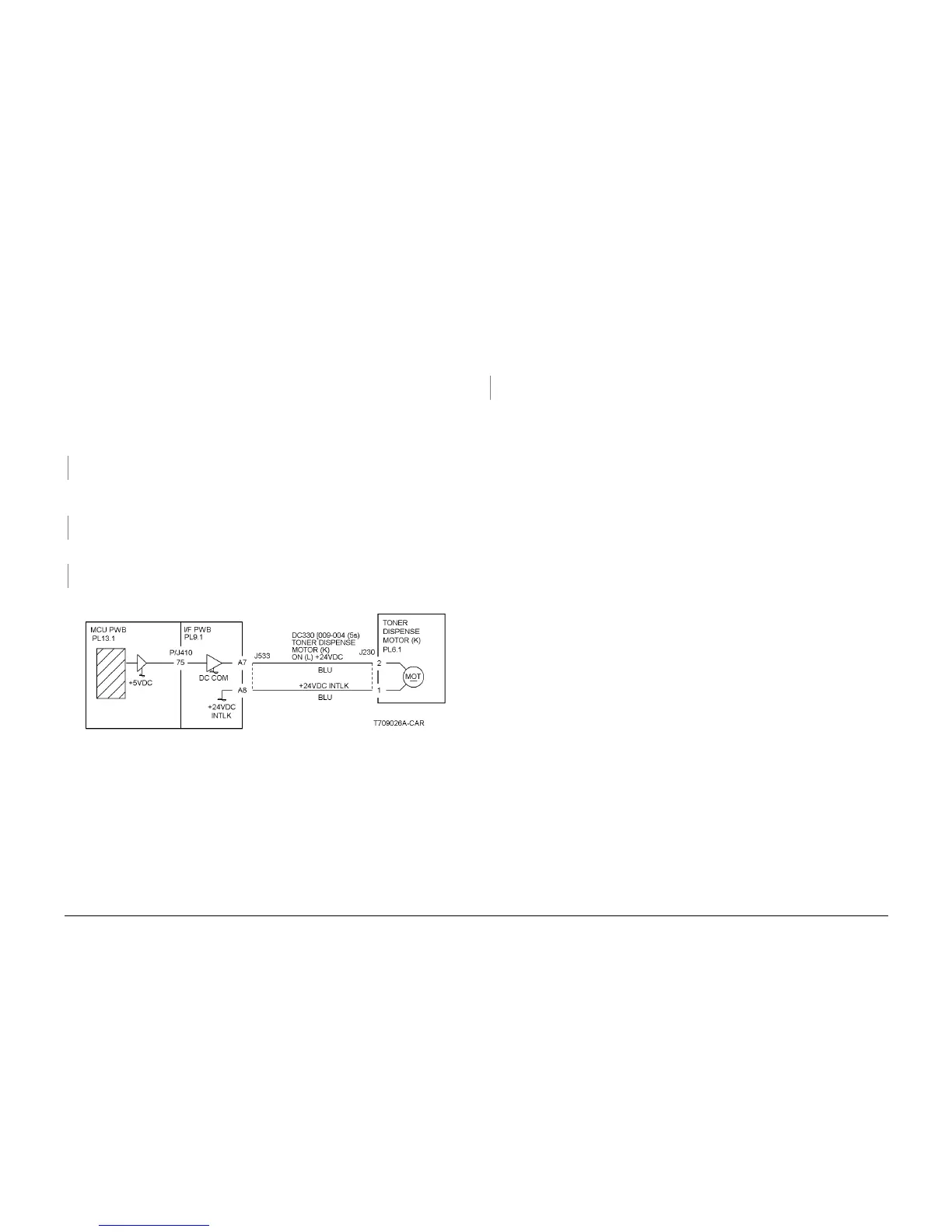

Figure 1 Toner Dispense Motor K
9-428 Change Drum Cartridge (K) Soon
The Drum Cartridge (K) needs to be replaced soon/reached end of life.
Procedure
Replace the Black Drum Cartridge (refer to Section 6, Machine Consumables). The problem
is corrected.
YN
Replace the MCU PWB (PL 13.1).
Return to Service Call Procedures.
