Xerox DocuColor 1632 Service Manual

6/02
4-135
DC1632/2240
REP 12.17
Repairs and Adjustments
Prelaunch Training/Review
REP 12.17 Entrance Upper Cover
Parts List on PL 17.3
Removal
1. Remove the H Transport Assembly (REP 12.1).
2. Remove the following:
a. H Transport Front Cover (PL 17.3)
b. H Transport Rear Cover (PL 17.3)
c. Stop (PL 17.3)
3. Remove the H Transport Cover (Figure 1).

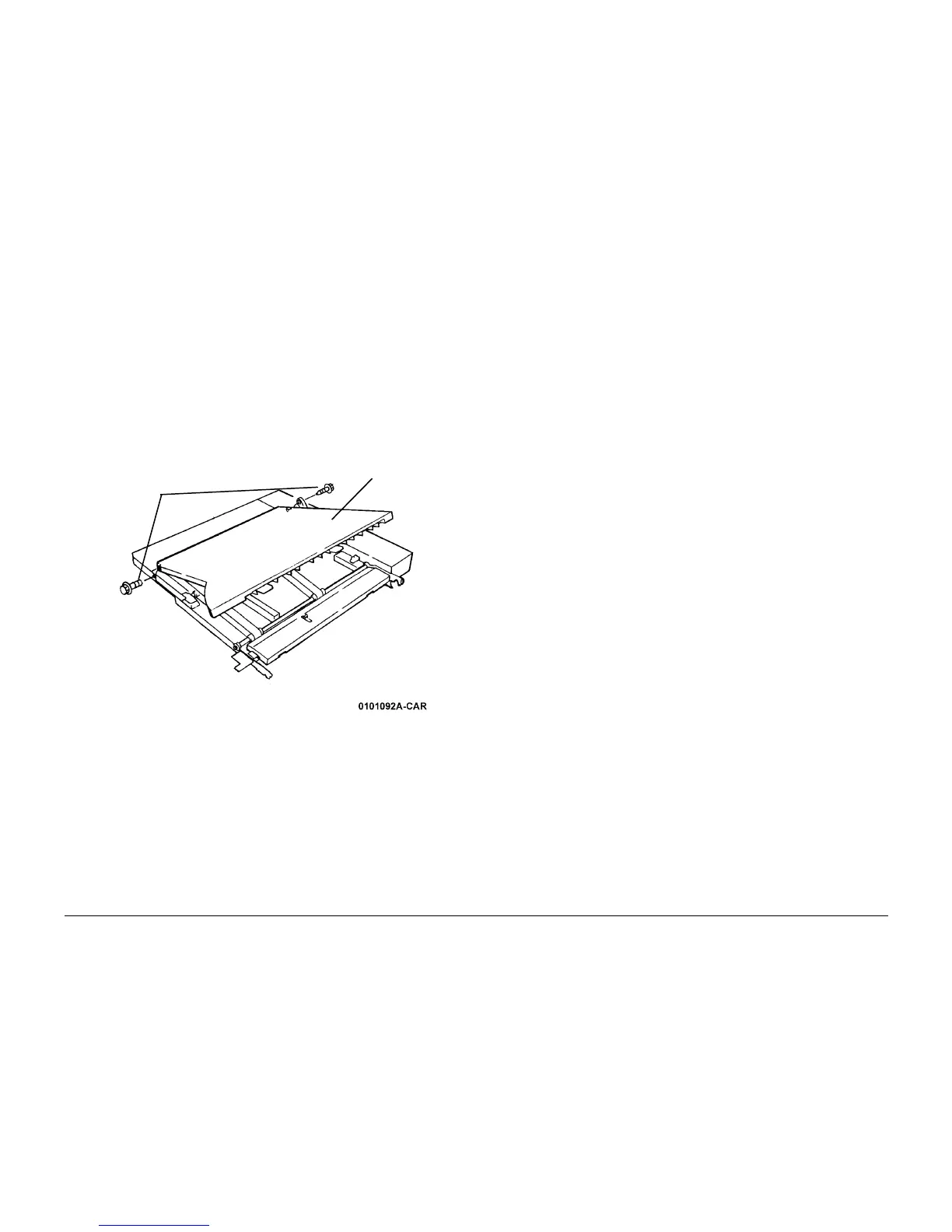

Figure 1 Removing the H Transport Cover
1
Remove
Screw (2)
2
Remove
Cover
