9-412 Toner Cartridge (C) Near Empty
The Cyan Toner Cartridge is nearly empty/empty.
NOTE: Continuous running of high density prints can temporarily deplete the toner supply.
Initial Actions
ï Ensure that there is toner and the toner is evenly distributed in the cartridge (C).
ï Check the ATC Sensor (C) for blockage or contaminants.
ï Check the drive system from the Developer Drive Motor to the Developer Housing (C) for
damage.
Procedure
Enter dC330 [009-003]. The Toner Dispense Motor (C) energizes (PL 6.1).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [009-014]. The Developer Motor energizes (PL 1.1).
YN
Go to OF 99-6 Motor Open RAP.
Perform ADJ 9.3. The ATC Sensor (C) fail judgement is OK.
YN
Go the 9-383, ATC Sensor Failure (C) RAP.
After checking that no failures are detected during normal operation, go to call closeout.

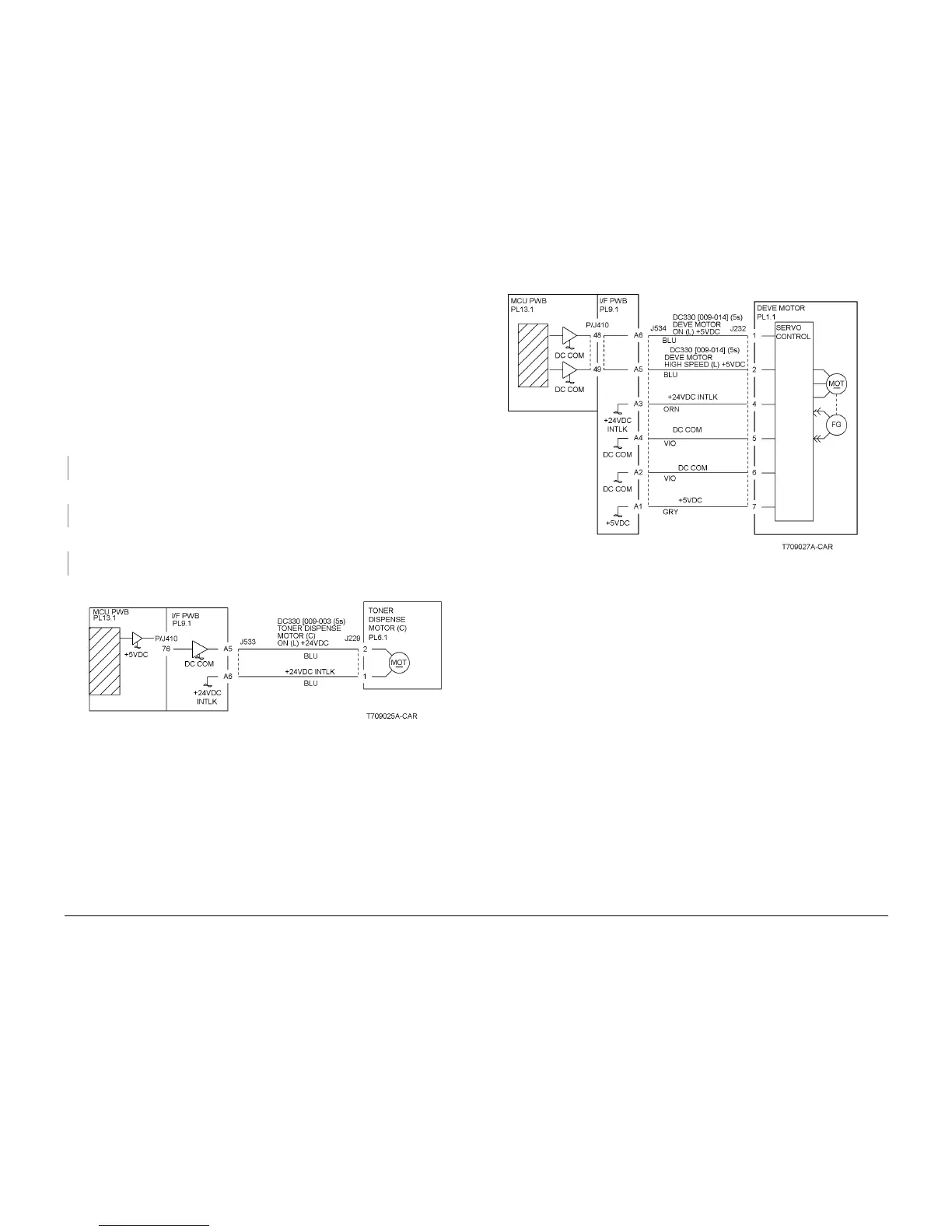

Figure 1 Toner Dispense Motor C
Figure 2 The Developer Motor
