6/02
4-115
DC1632/2240
REP 12.10
Repairs and Adjustments
Prelaunch Training/Review
REP 12.10 Rail
Parts List on PL 17.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following:
a. Front Cover (PL 17.5)
b. Rear Cover (PL 17.5)
2. Remove Harness from Stapler (Figure 1).

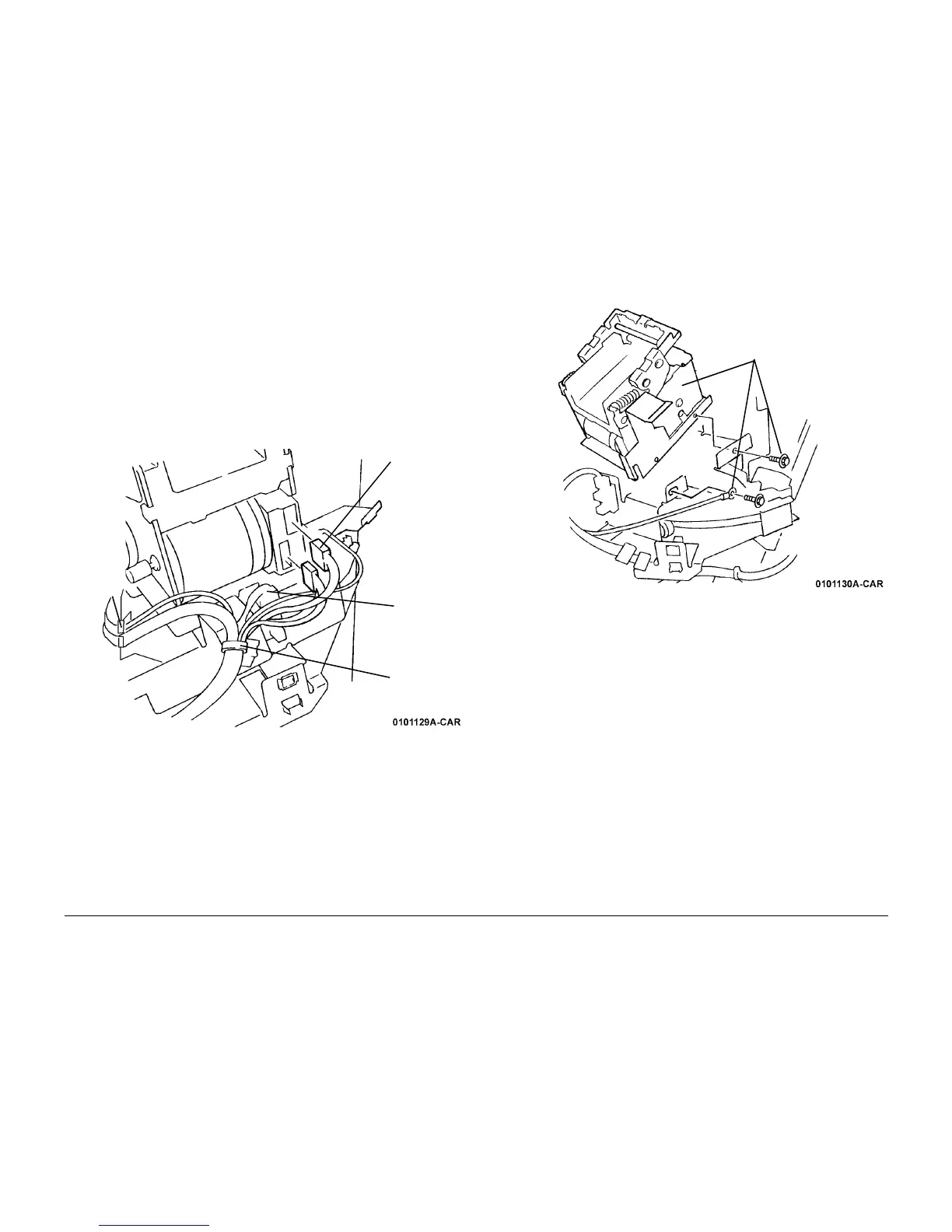

Figure 1 Removing Harness from Stapler
3. Remove Stapler Assembly (Figure 2).
Figure 2 Removing Stapler Assembly
1
Disconnect Sta-
pler P/Jís (2)
2
Disconnect
Sensor
3
Disconnect
Harness Clip
from Frame
4
Disconnect
Harness
from Motor
and remove
Harness
from Guide
Remove
Screws (2),
Ground Wire
(1) and Stapler
