Xerox DocuColor 1632 Service Manual

6/02
4-116
DC1632/2240
REP 12.10
Prelaunch Training/Review
Repairs and Adjustments

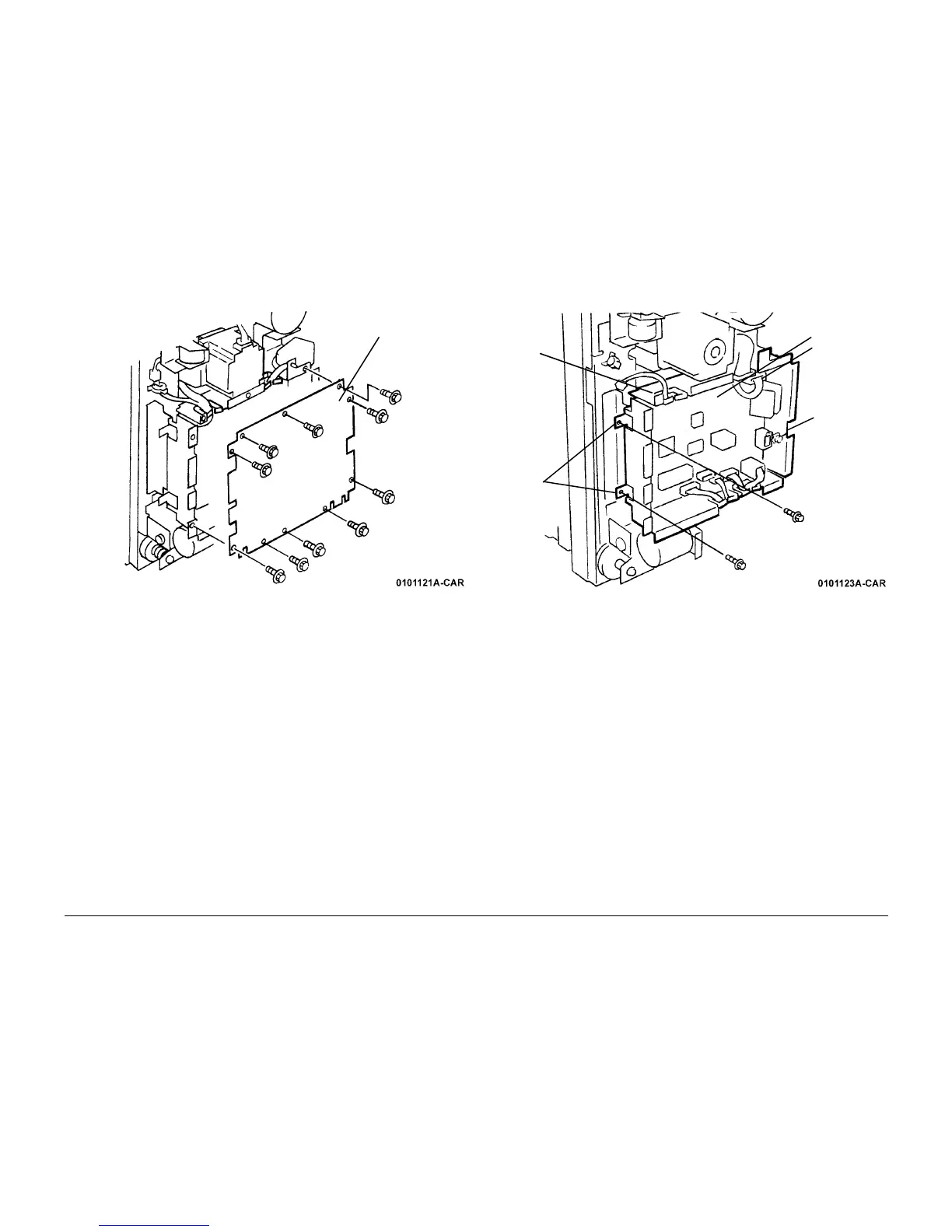

4. Remove the PWB Cover (Figure 3).
Figure 3 Removing the PWB Cover
5. Move the PWB Chassis down (Figure 4).
Figure 4 Moving PWB Chassis Down
Remove Screws (10)
and Cover
1
Disconnect
P848 and
remove from
Guide
2
Disconnect
P849 and
P846 and
remove from
Guide
3
Loosen Screw
4
Remove
Screws (2)
and allow
PWB Chas-
sis to hang
down
