6/02
4-29
DC1632/2240
REP 5.11
Repairs and Adjustments
Prelaunch Training/Review
REP 5.11 Registration Sensor
Parts List on PL 20.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Top Cover.
2. Remove following:
a. Front Cover (PL 20.1).
b. Entrance Tray (PL 20.1).
3. Remove Lower Chute Assembly (REP 5.8).
4. Disconnect P/J580 and remove Registration Sensor (Figure 1).

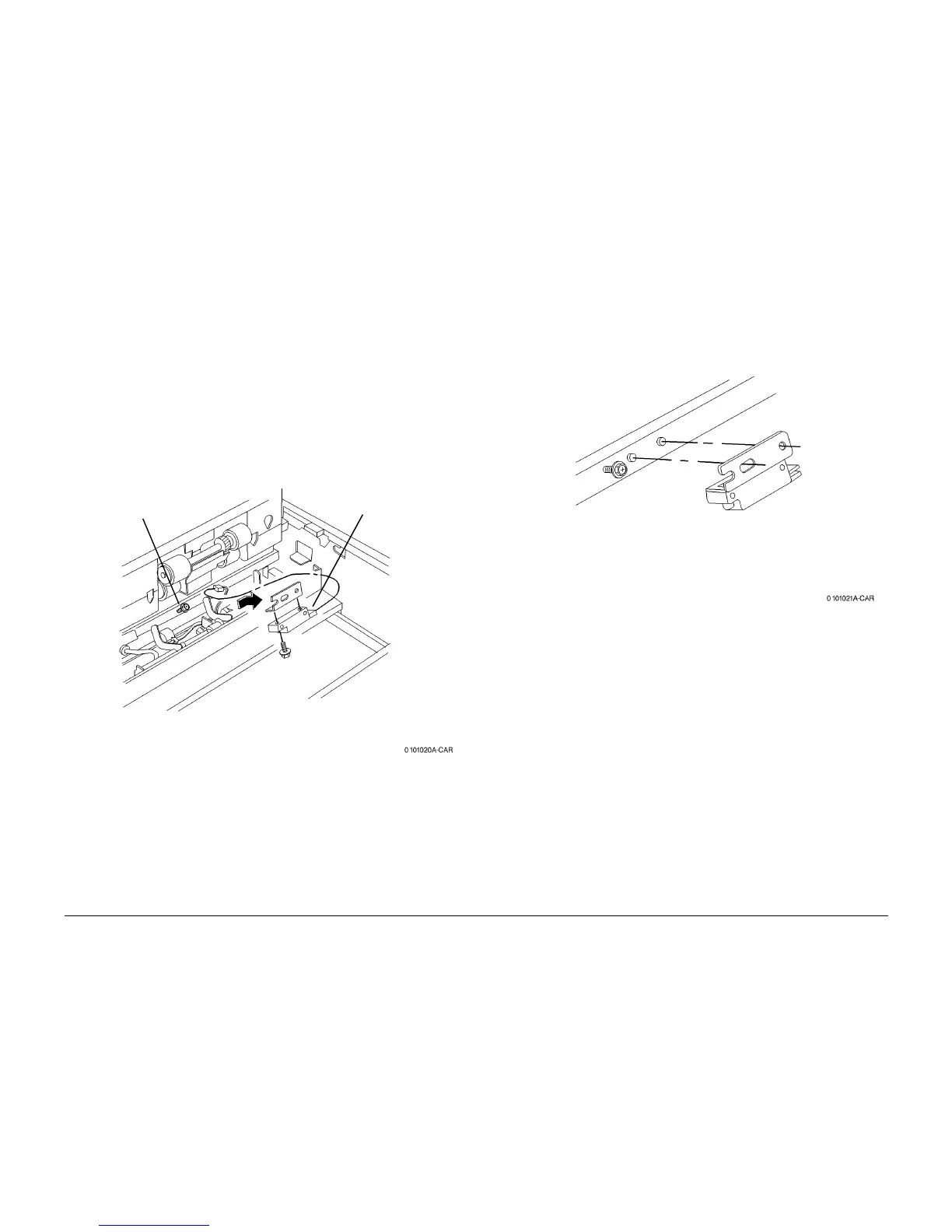

Figure 1 Removing Registration Sensor
Replacement
1. When installing Registration Sensor align holes with bumps and tighten screw (Figure 2).
Figure 2 Installing Registration Sensor
1
Loosen
screw
2
Remove
Registration
Sensor and
disconnect
To Next Page
