6/02
5-49
DC1632/2240
PL 13.1
Parts List
Prelaunch Training/Review

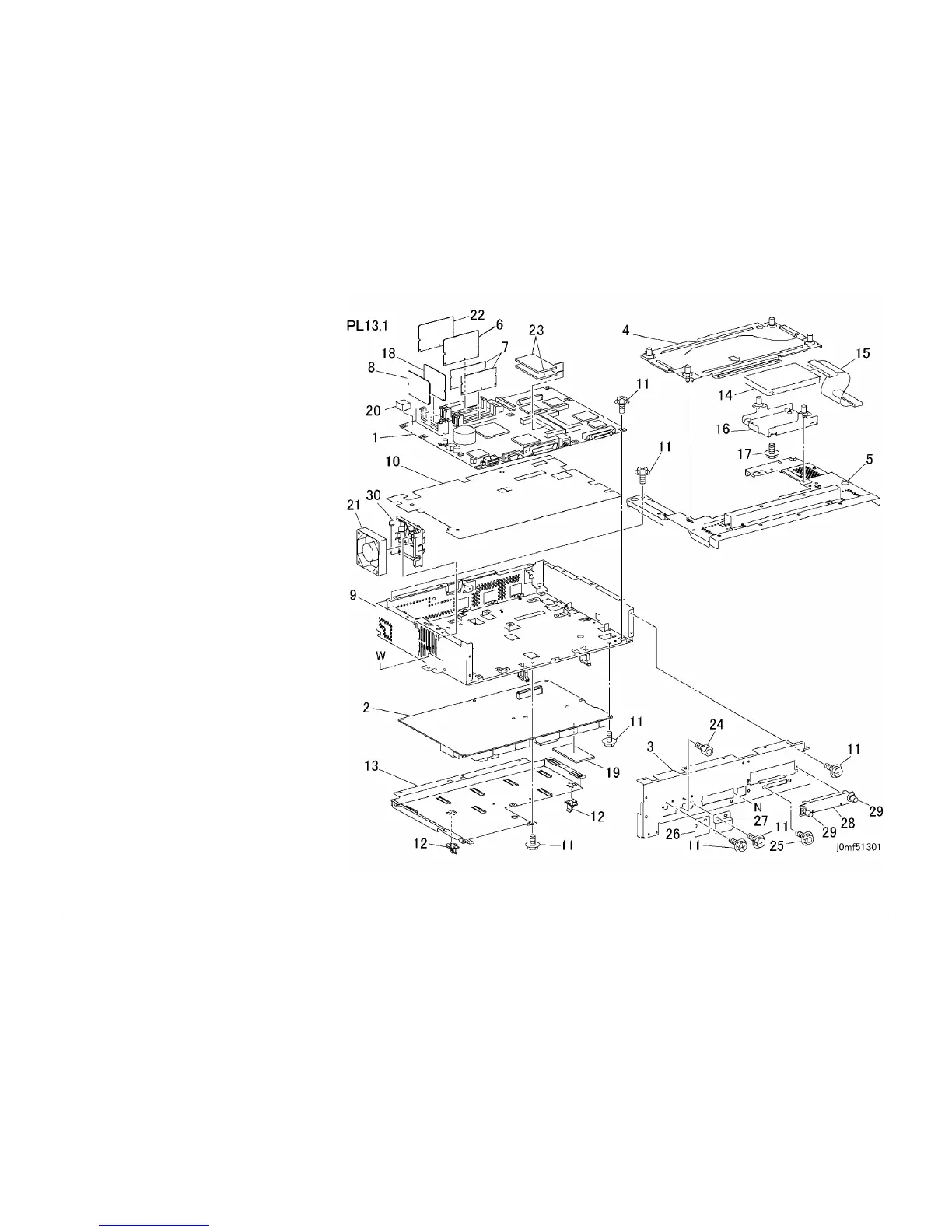

PL 13.1 ESS
Item Part Description
1 160K74231 ESS PWB
2 160K90840 MCU PWB (REP 1.2)
3 – Rear Panel (Not Spared)
4 – DIMM Cover (Not Spared)
5 – Top Cover (Not Spared)
6 537K62680 PS-2 ROM
7 133K22400 SDRAM 256MB
8 160K82222 ESS NVM PWB
9 – ESS Chassis (Not Spared) (REP
1.3)
10 – Seal (Not Spared)
11 – Screw (Not Spared)
12 – Support (Not Spared)
13 – Cover (Not Spared)
14 121K27751 HDD (ADJ 9.8)
15 962K08641 HDD Harness Assembly
16 – Bracket (Not Spared)
17 – Screw (Not Spared)
18 538K94570 Font ROM
19 160K76650 MCU NVM PWB
20 537K61180 MAC ROM
21 127K32920 ESS Fan
22 537K62670 PS-1 ROM
23 133K21100 SDRAM 64MB
– 133K21200 SDRAM 128MB
24 – Screw (Not Spared)
25 – Screw (Not Spared)
26 – Blind Panel (Not Spared)
27 – Blind Panel (Not Spared)
28 – Option Panel (Not Spared)
29 – Screw (Not Spared)
30 – Fan Guard (Not Spared)
To Next Page
