6/02
2-102
DC1632/2240
7-115
Prelaunch Training/Review
Status Indicator RAPs
7-115 Tray 3 Misfeed
The Take Away Sensor does not detect paper after feeding from Tray 3.
Initial Actions
ï Check condition and specification of paper in Tray 3.
ï Check the paper path for obstructions.
ï Check for wear and clean the Tray 3 Feeder Roll, Take Away Roll and the Nudger Roll.
Procedure
Enter dC330 [008-102] and press Start. Block and unblock the Tray 3 Feed Out Sensor (PL
15.10). The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-005] and press Start. The Tray 3 Feed/Lift motor energizes (PL 15.6).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [008-029] and press Start. The Take Away Motor 1 energizes (PL 15.9).
YN
Go to OF 99-6 Motor Open RAP.
Check the wires and connectors. If the check is OK, replace the Tray Module PWB (PL 16.15).

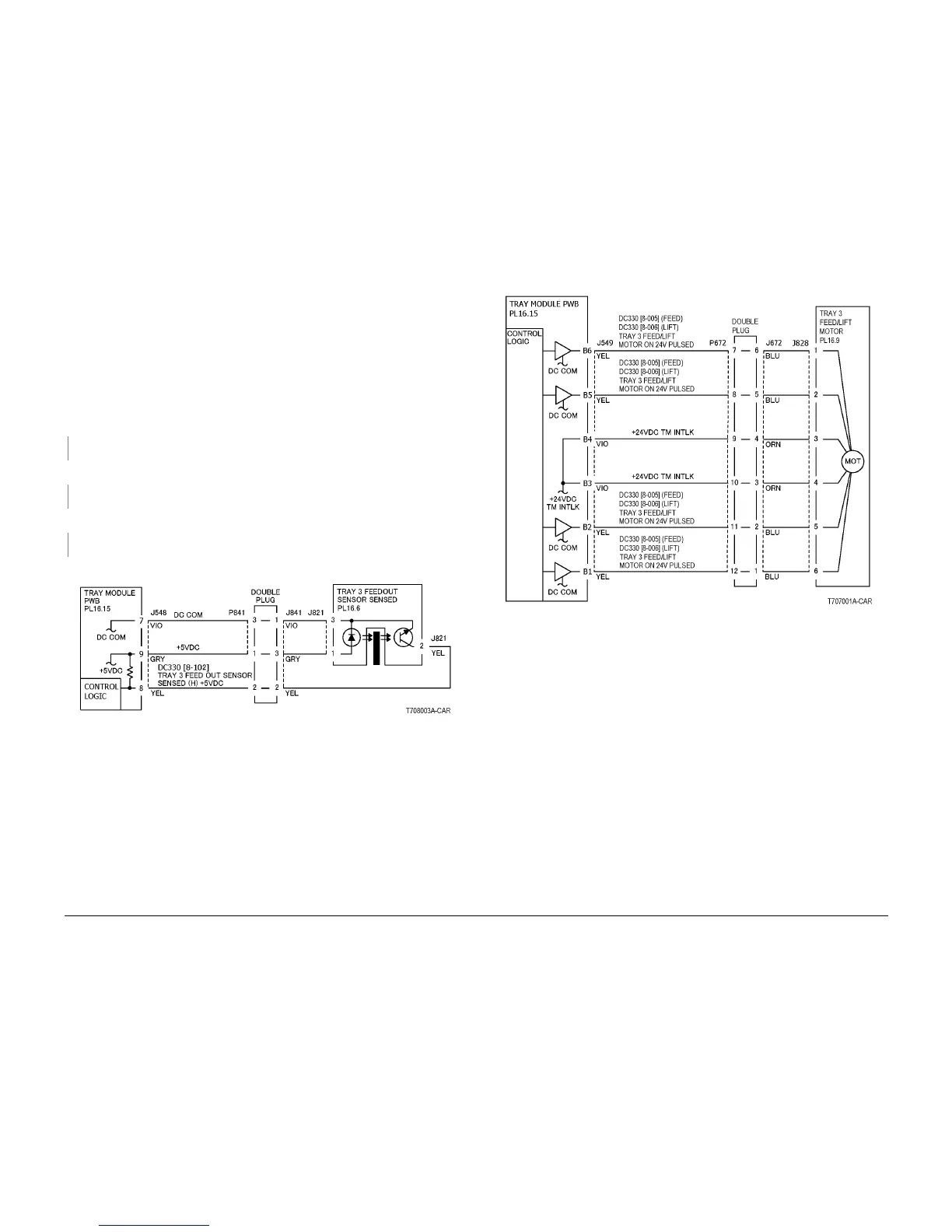

Figure 1 Tray 3 Feedout Sensor CD
Figure 2 Tray 3 Feed/Lift Motor CD
To Next Page
