6/02
4-65
DC1632/2240
REP 8.2
Repairs and Adjustments
Prelaunch Training/Review
REP 8.2 Duplex Chute
Parts List on PL 2.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove Power Switch Cover (REP 14.6).
3. Remove Upper Rear Left Cover (REP 14.4).
4. Close Left Cover Assembly.
5. Remove Tray 5 (REP 7.1).
6. Open and close Left Cover Assembly to allow Duplex Paper Guide to swing down.
7. Swing Duplex Paper Guide back and forth while carefully pushing Duplex Paper Guide
toward rear. Key in front hinge pin will enter hinge pin slot and front hinge pin will disen-
gage hinge pin hole. Move Duplex Paper Guide toward front to disengage rear hinge pin.
Replacement
Install Left Cover Assembly on hinge pins, manually align marks on Motion Damper, then tip
up transport to engage Motion Damper gears and connect stop arm on Stop Pin (Figure 3).
CAUTION
Before closing Left Cover Assembly to connect harness, hold up black plastic Duplex Baffle
while closing transport.

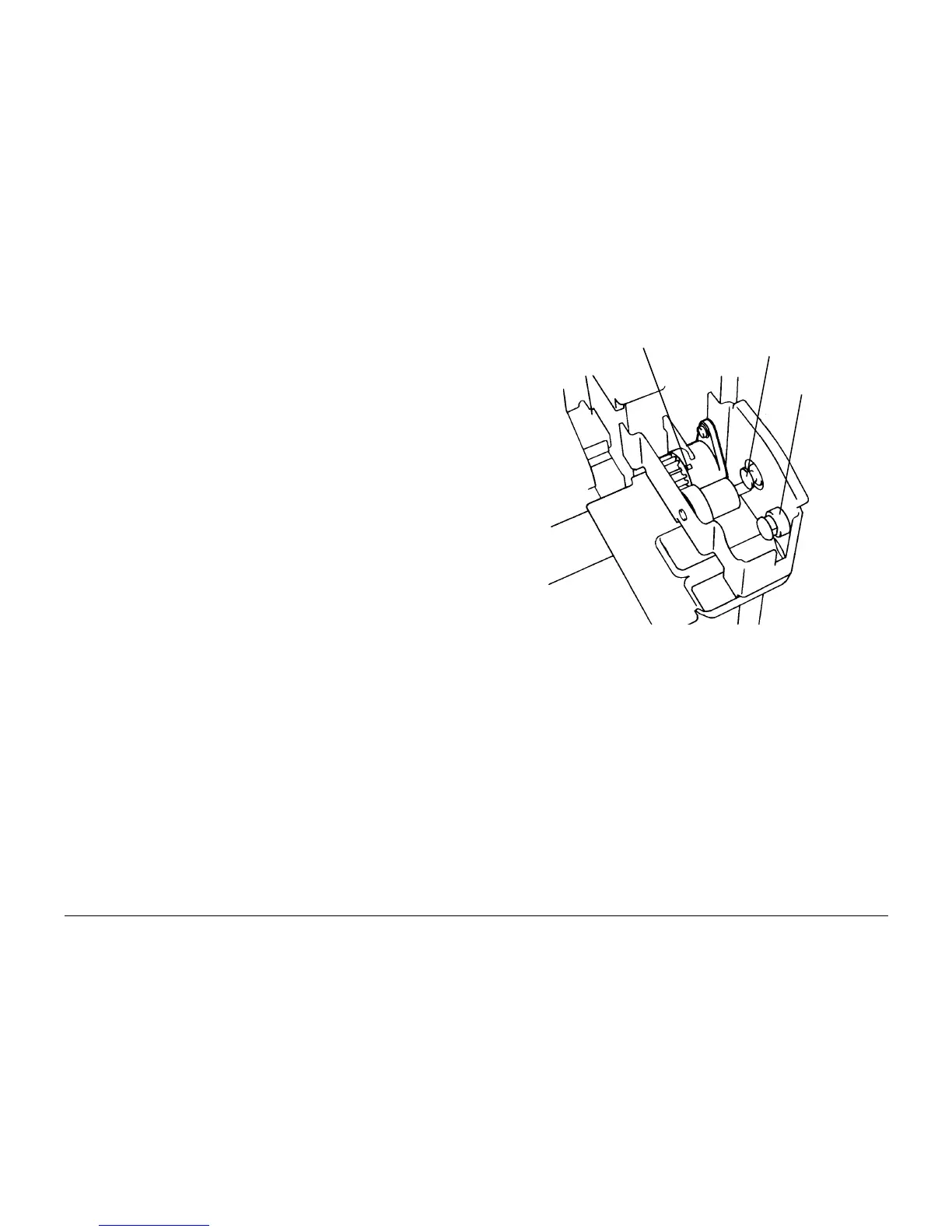

Figure 1 Aligning Marks on Motion Damper
Hinge
Pin
Marks on
Motion
Damper
Stop Pin
To Next Page
