Xerox DocuColor 1632 Service Manual

6/02
2-246
DC1632/2240
12-961
Prelaunch Training/Review
Status Indicator RAPs
12-961 Mix Full Stack
ï Compared to the maximum paper size that was loaded at the previous job, the paper size
(either feed direction or width direction) of the next job is bigger.
ï Staple mode has been changed while the width of the maximum paper size that was
loaded at the previous job is less than 279.4mm.
ï The maximum paper size that was loaded at the previous job is "unknown".
Procedure
Remove the Finisher Front Cover.
Enter dC330 [012-204] and press Start. Actuate the Stack A Sensor with a sheet of paper.
The display changes.
YN
Check the Stack A Sensor using the Generic Transmissive Sensor RAP.
Enter dC330 [012-205] and press Start. Actuate the Stack B Sensor with a sheet of paper.
The display changes.
YN
Check the Stack B Sensor using the Generic Transmissive Sensor RAP.
Enter dC330 [012-200] and press Start. Actuate the Actuator of the Stack Paper Sensor. The
display changes.
YN
Check the Paper SensoR using the Generic Transmissive Sensor RAP.
Enter dC330 [012-050] (up) or [12-051] (down) and press Start. The Stacker Tray moves.
YN
The Stacker Motor energizes.
YN
With [12-050] (up) running +24 VDC is measured between the Finisher PWB p/j
(+) and Finisher PWB Chassis (-).
YN
Replace the Finisher PWB (PL 17.13).
With [12-050] (up) running +24 VDC is measured between the Stacker Motor p/j
(+) and Finisher PWB Chassis (-).
YN
Check the wire between the Finisher PWB p/j and the Stacker Motor p/j for an
open circuit or poor contact.
With [12-050] (up) running +24 VDC is measured between the Stacker Motor p/j
(+) and Finisher PWB Chassis (-).
YN
Replace the Stacker Motor (PL 17.11).
Check the wire between the Finisher PWB p/j and the Stacker Motor p/j for an open
circuit or poor contact.
If no problems are found, replace the Finisher PWB (PL 17.13).
If the problem continues, replace the Stacker Motor (PL 17.11).
Check the following:
Remove the other mechanical causes of the Stacker Tray not operating.
ï The Stacker Motor Gear for wear and damage
ï The Stacker Tray for dragging and improper installation
ï The Stacker Elevator Belt/rack/gear for wear and damage
Replace the Finisher PWB (PL 17.13).

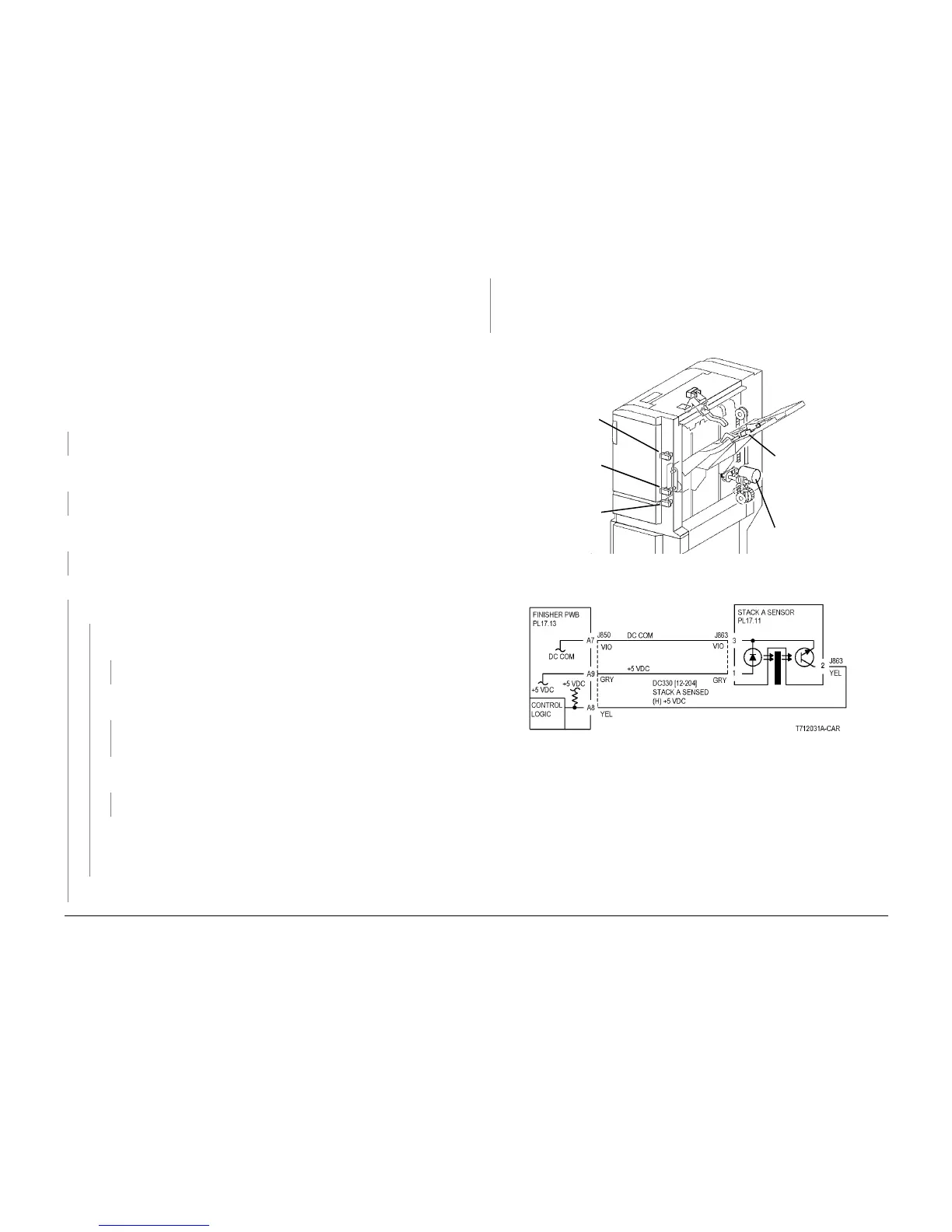

Figure 1 Component Location
Figure 2 Stack A Sensor CD
Upper
Limit
Sensor
Stack A
Sensor
Stack B
Sensor
Stack
Paper
Sensor
Stacker
Motor
A
A
