REP 5.15
Repairs and Adjustments
Prelaunch Training/Review
REP 5.15 Registration Pinch Roll
Parts List on PL 20.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
NOTE: Do not damage or scratch surface of Registration Pinch Roll. (Scratches may cause
skewing.)
1. Remove following:
a. Front Cover (PL 20.1)
b. Rear Cover (REP 5.18).
c. Registration Gate Solenoid (REP 5.2).
2. Remove Gate (Figure 1).

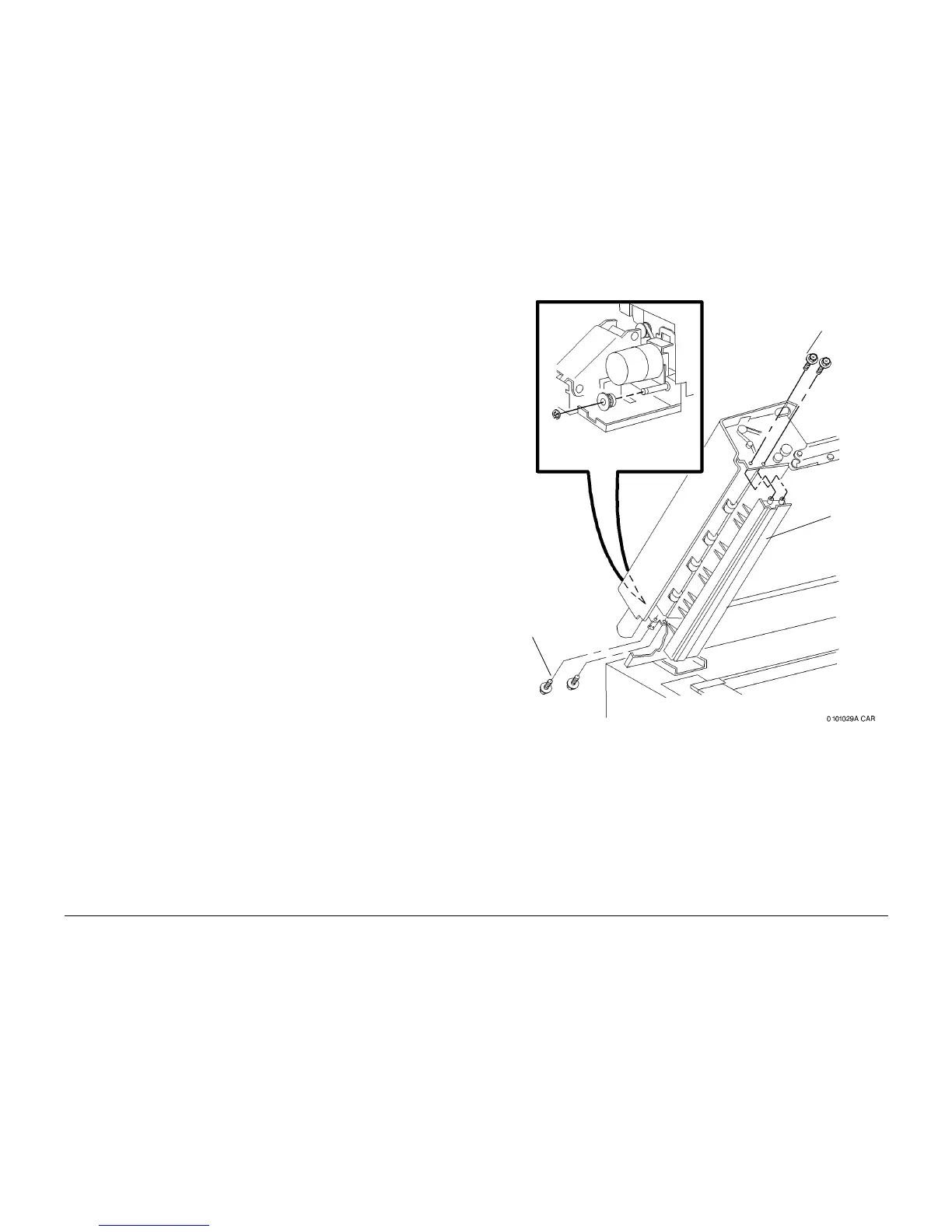

Figure 1 Removing Gate
2
Remove
screws (4)
4
Remove
Gate
3
Remove
Screws (2)
1
Remove Belt from Pulley. Remove
E-Ring and Pulley
To Next Page
