Xerox DocuColor 1632 Service Manual

6/02
4-34
DC1632/2240
REP 5.15
Prelaunch Training/Review
Repairs and Adjustments
3. Remove Gate (Figure 2).

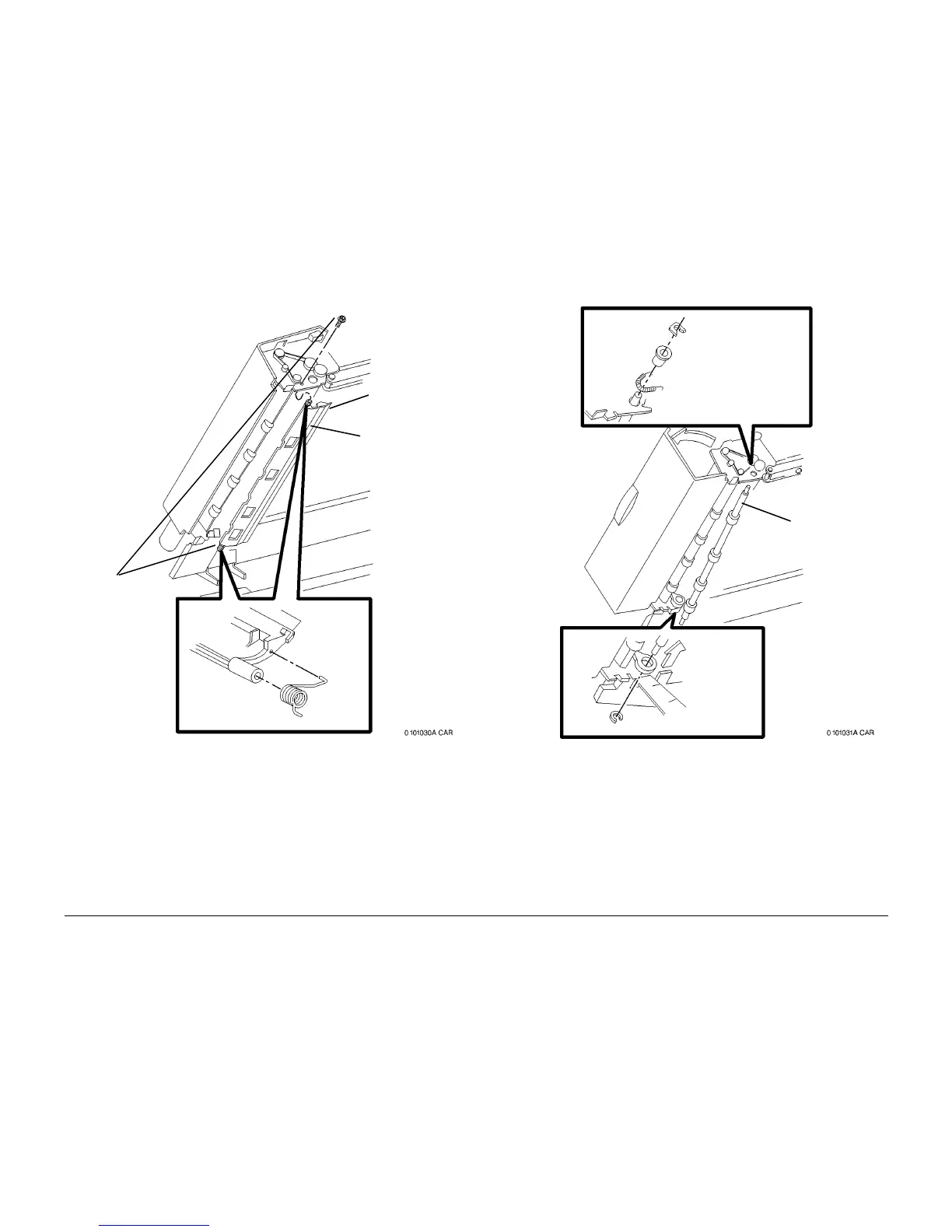

Figure 2 Removing Gate
4. Remove Registration Pinch Roll (Figure 3).
Figure 3 Removing Registration Pinch Roll
1
Observe position
of Springs
3
Remove
Screws (2)
4
Remove Gate while
containing Springs
2
Close DADF
CAUTION
Plastic edge on
Gate is fragile
2
Remove
C Clip
and
longer
Spring
1
Remove C
Clip, shorter
Spring, and
Bearing
3
Remove Regis-
tration Pinch Roll
