Xerox DocuColor 1632 Service Manual

6/02
4-72
DC1632/2240
REP 9.7
Prelaunch Training/Review
Repairs and Adjustments
REP 9.7 Toner Dispenser
Parts List on PL 6.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Front Cover (REP 14.8).
3. Release and move Xerographic Release Lever half way down.
4. Remove Dispenser Assembly Cover (REP 9.6).
5. Remove Drum Cartridges as required.
CAUTION
Y must be removed first, followed in order by M, C, then K. They must be reinstalled in reverse
order of removal, which is install K, C, M, and then Y.
6. Prepare to remove Toner Transport (Figure 1).
a. Carefully pull out Toner Outlet Door while holding Housing back to shut off toner out-
let.

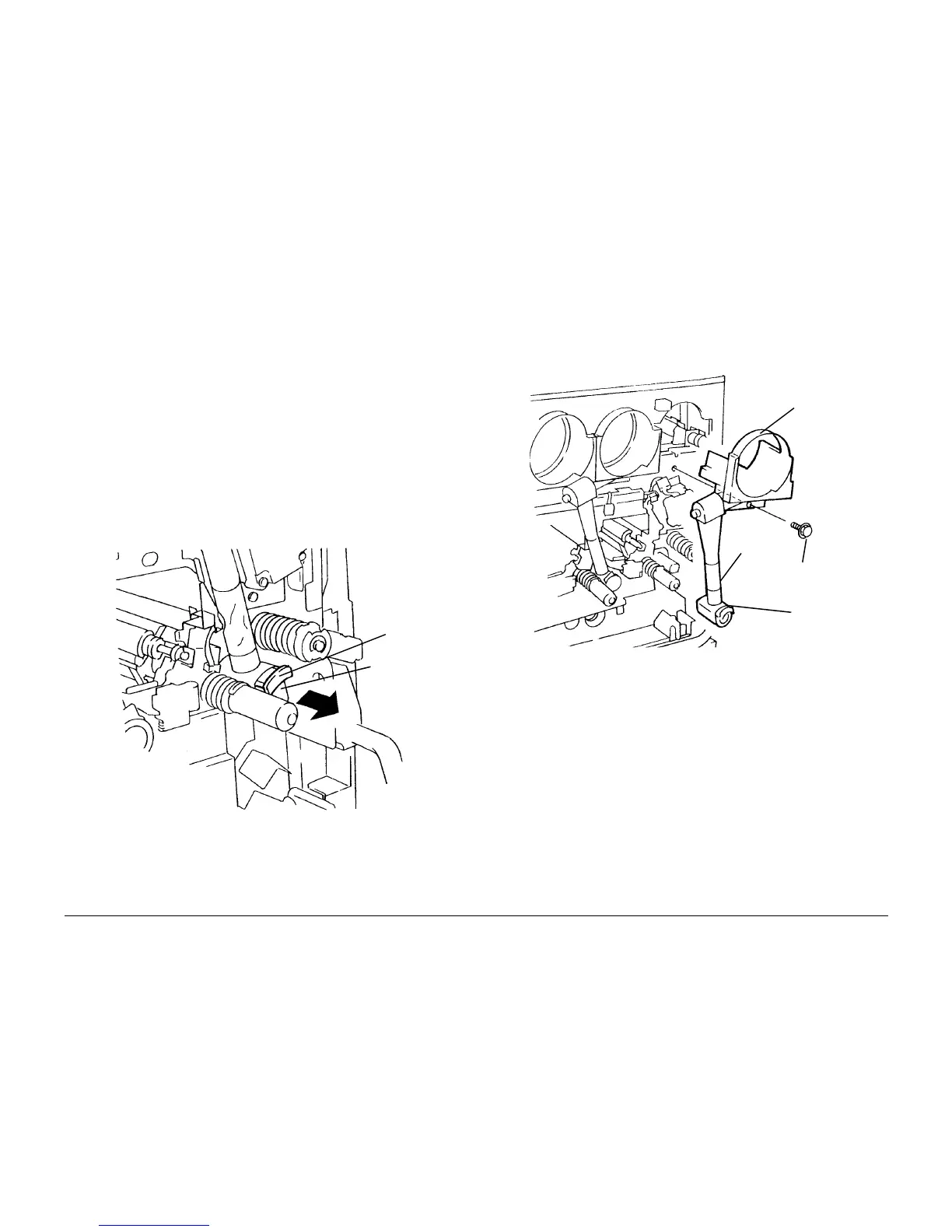

Figure 1 Closing Toner Outlet
7. Remove Toner Transport (Figure 2).
a. Remove Screw,
CAUTION
Connection Tube may separate from upper or lower housing.
Agitator may disconnect if flex coupling is compressed enough so agitator hits inside bot-
tom of lower housing
b. Pull out Upper and Lower Housings together while ensuring flexible Connection
Tube remains connected.
Figure 2 Removing Toner Transport
Toner
Outlet
Door
Housing
Upper
Housing
Lower
Housing
Screw
Connection
Tube
