6/02
5-9
DC1632/2240
PL 1.3
Parts List
Prelaunch Training/Review

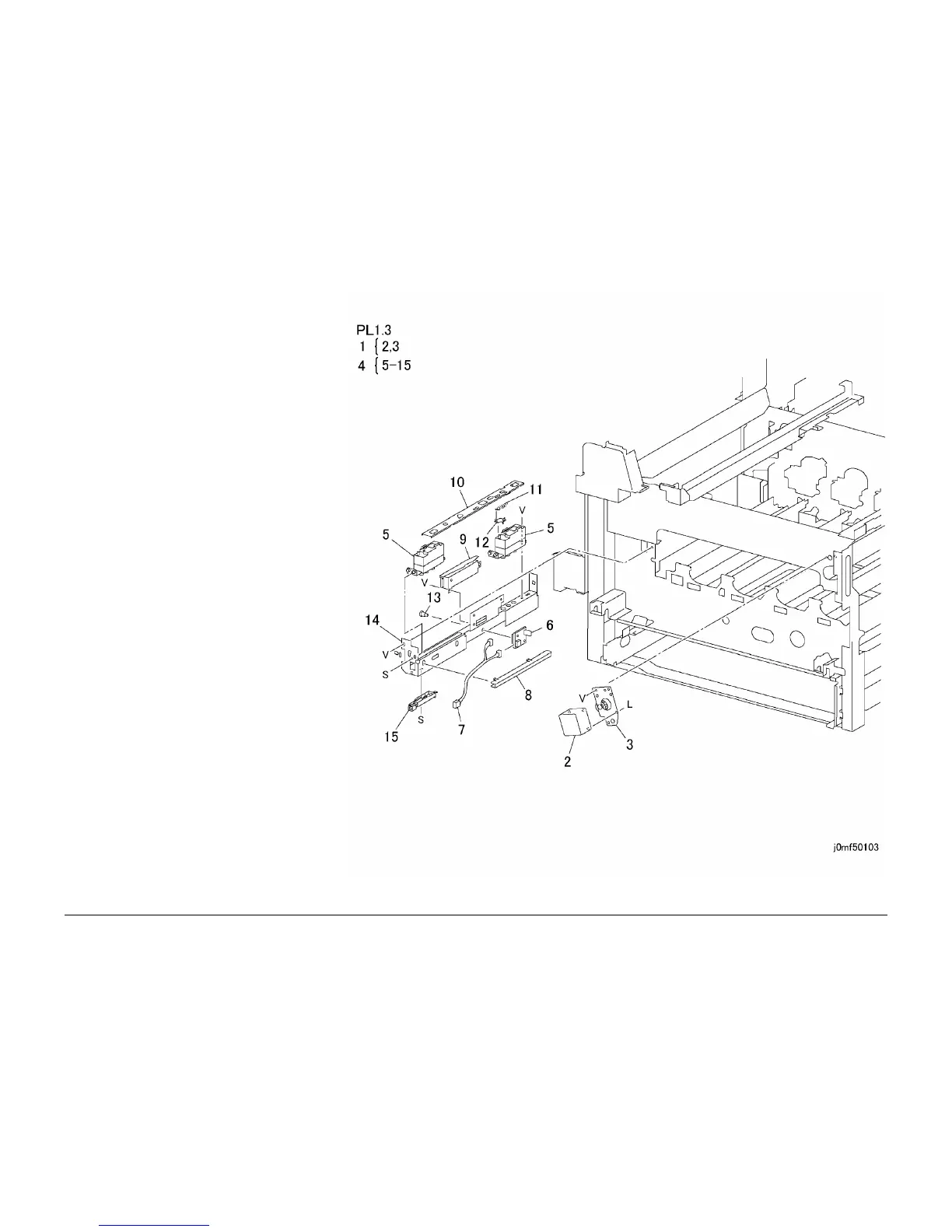

PL 1.3 IBT Steering Motor and MOB
Sensor
Item Part Description
1 007K85580 IBT Steering Motor Assembly (REP
9.12)
2 – IBT Steering Motor (P/O PL 1.3
Item 1)
3 – Plate (P/O PL 1.3 Item 1)
4 130K60865 MOB Sensor Assembly (REP
9.14,ADJ 9.6)
5 – MOB Sensor (P/O PL 1.3 Item 4)
6 – Environment Sensor (P/O PL 1.3
Item 4)
7 – Wire Harness (P/O PL 1.3 Item 4)
8 – Cover (P/O PL 1.3 Item 4)
9 – ADC Sensor (P/O PL 1.3 Item 4)
10 – Shutter (P/O PL 1.3 Item 4)
11 – Spring (P/O PL 1.3 Item 4)
12 – Link (P/O PL 1.3 Item 4)
13 – Spacer (P/O PL 1.3 Item 4)
14 – MOB Bracket (P/O PL 1.3 Item 4)
15 – Slide (P/O PL 1.3 Item 4)
