DC1632/2240

PL 17.11

Prelaunch Training/Review

Parts List

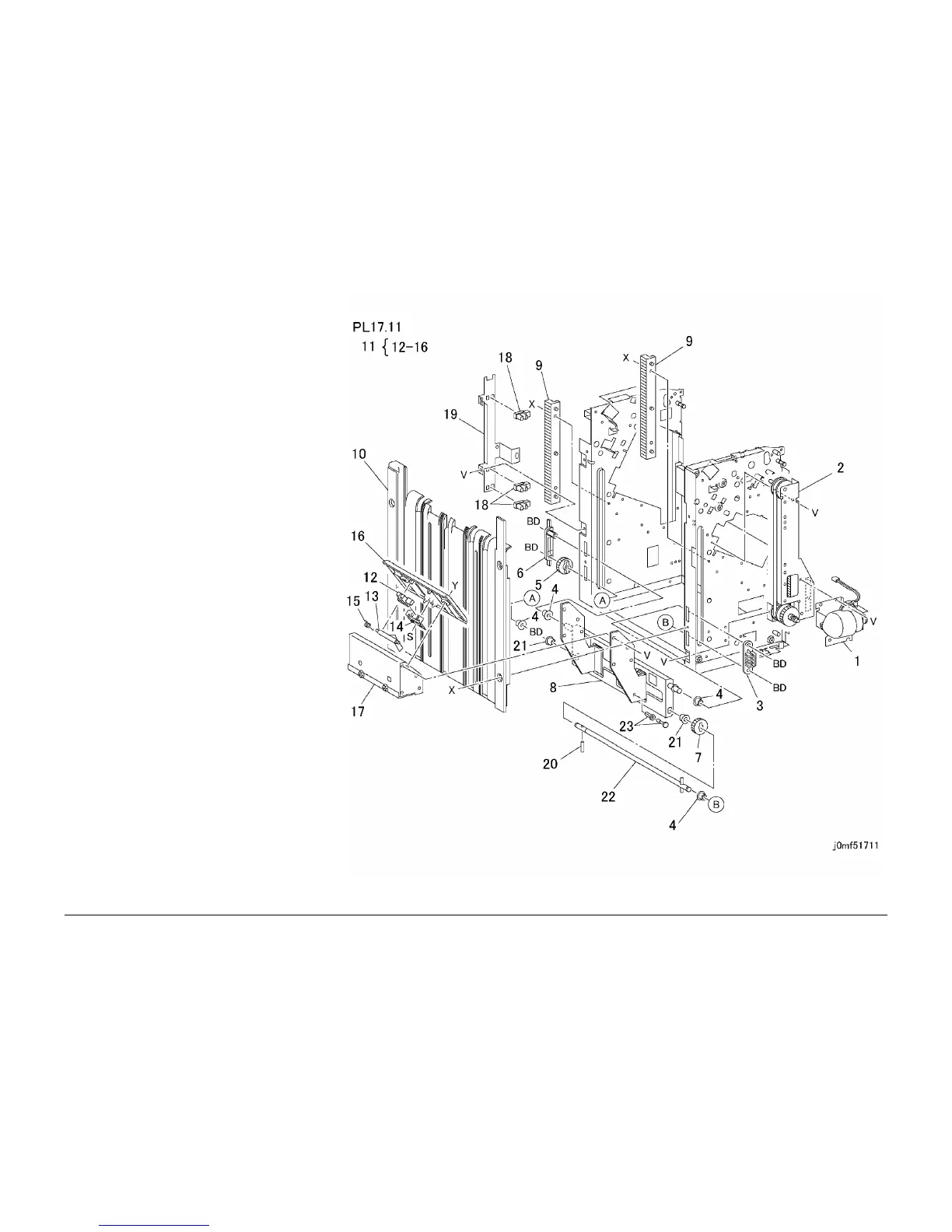

PL 17.11 Elevator

Item Part Description

1 127K33420 Stacker Motor Assembly (REP

12.13)

2 015K50680 Front Elevator Bracket (REP 12.14)

3 019E50340 Clamp

4 – Bearing (Not Spared)

5 007E67830 Rear Gear

6 – Actuator (Not Spared)

7 007E67840 Front Gear

8 – Bracket (Not Spared)

9 007E67820 Rack

10 – Tray Guide (Not Spared)

11 015K51640 Paper Stack Sensor Assembly

12 130E82530 Sensor

13 – Actuator (P/O PL 17.11 Item 11)

14 – Bracket (P/O PL 17.11 Item 11)

15 – Spring (P/O PL 17.11 Item 11)

16 – Cover (P/O PL 17.11 Item 11)

17 – Bracket (Not Spared)

18 – Sensor (Not Spared)

19 – Bracket (Not Spared)

20 – Pin (Not Spared)

21 – Bearing (Not Spared)

22 – Shaft (Not Spared)

23 – Rivet (Not Spared)
