REP 9.22
Prelaunch Training/Review
Repairs and Adjustments
REP 9.22 Transfer Belt
Parts List on PL 5.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
CAUTION
Cover Transfer Belt in a black bag.
NOTE: Keep your hand off Transfer Belt.
1. Remove IBT Belt Assembly (REP 9.15).
2. Remove IBT Cleaner Assembly (REP 9.16).
3. Remove Stand Plate (Figure 1).
a. Remove Screw (2).
b. Remove Stand Plate in direction of arrow.

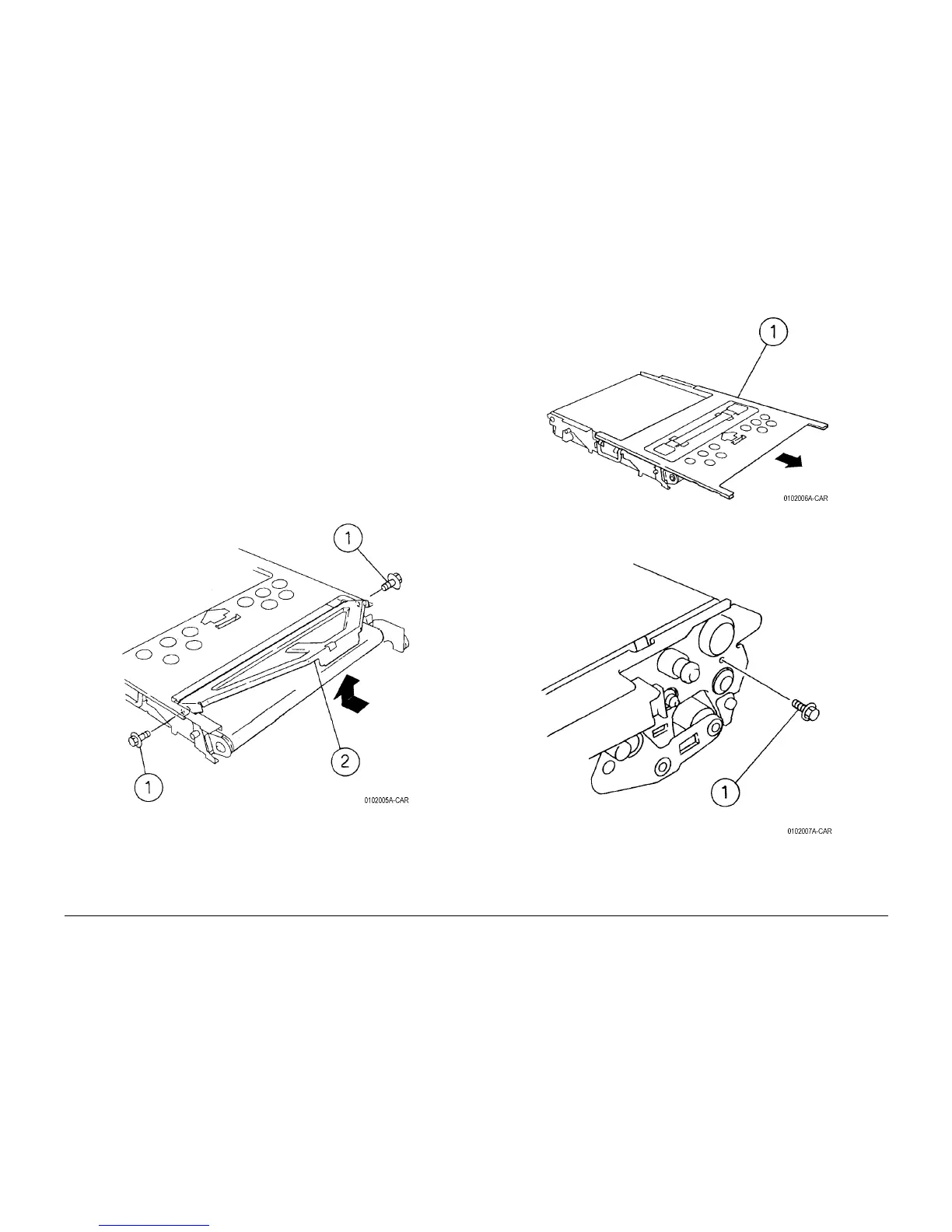

Figure 1 Removing Stand Plate
4. Remove Handle (Figure 2).
Figure 2 Removing Handle
5. Remove screws on both sides (Figure 3).
Figure 3 Removing Screws (both sides)
To Next Page
