Xerox DocuColor 1632 - PL 2.9 Left Cover Assembly: 2 of 2

6/02
5-18
DC1632/2240
PL 2.9
Prelaunch Training/Review
Parts List

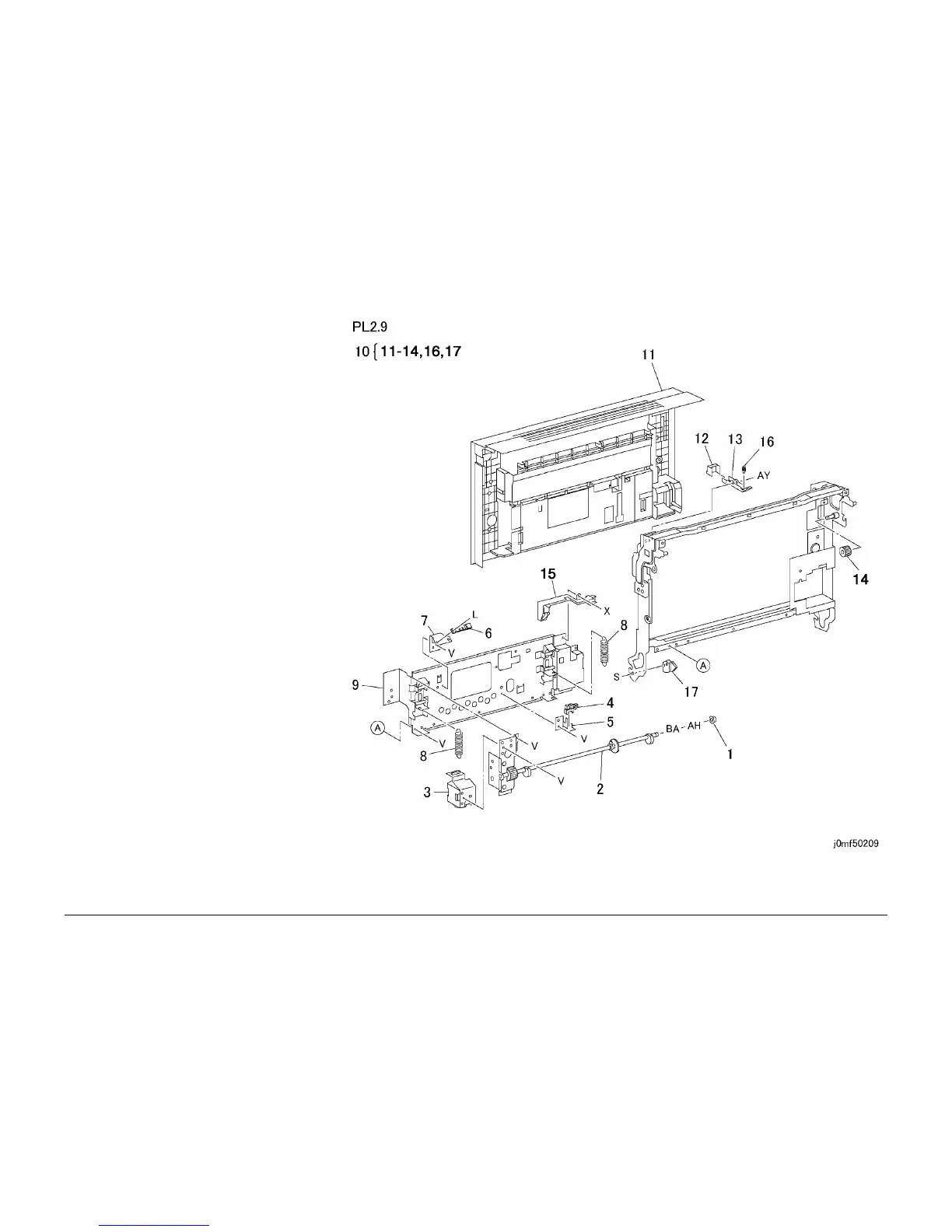

PL 2.9 Left Cover Assembly: 2 of 2
Item Part Description
1 – Bearing (Not Spared)
2 007K85522 Gear
3 127K29511 2nd BTR Retract Motor
4 130E82190 2nd BTR Retract Sensor
5 – Bracket (Not Spared)
6 130E84300 POB Sensor
7 – Bracket (Not Spared)
8 – Spring (Not Spared)
9 – Bracket (Not Spared)
10 802K27073 Left Cover Assembly (REP 8.1)
11 – Left Cover (P/O PL 2.9 Item 10)
12 – Lever (P/O PL 2.9 Item 10)
13 – Bracket (P/O PL 2.9 Item 10)
14 – Gear (21T) (P/O PL 2.9 Item 10)
15 – Connector Assembly
16 – Spring (P/O PL 2.9 Item 10)
17 007K86931 Damper Gear (45T)
