6/02
2-100
DC1632/2240
7-110
Prelaunch Training/Review
Status Indicator RAPs
7-110 Tray 2 Misfeed
The Take Away Sensor does not detect paper after feeding from Tray 2.
Initial Actions
ï Check condition and specification of paper in Tray 2.
ï Check the paper path for obstructions.
ï Check for wear and clean the Tray 2 Feeder Roll, Take Away Roll and the Nudger Roll.
Procedure
Enter dC330 [008-106] and press Start. Block and unblock the Take Away Sensor (PL 16.6).
The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-003] and press Start. The Tray 2 Feed/Lift motor energizes (PL 15.3).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [008-029] then dC330 [008-036] and press Start. The Take Away Motor 1 ener-
gizes (PL 15.9).
YN
Go to OF 99-6 Motor Open RAP.
Check the wires and connectors. If the check is OK, replace the Tray Module PWB (PL 16.15).

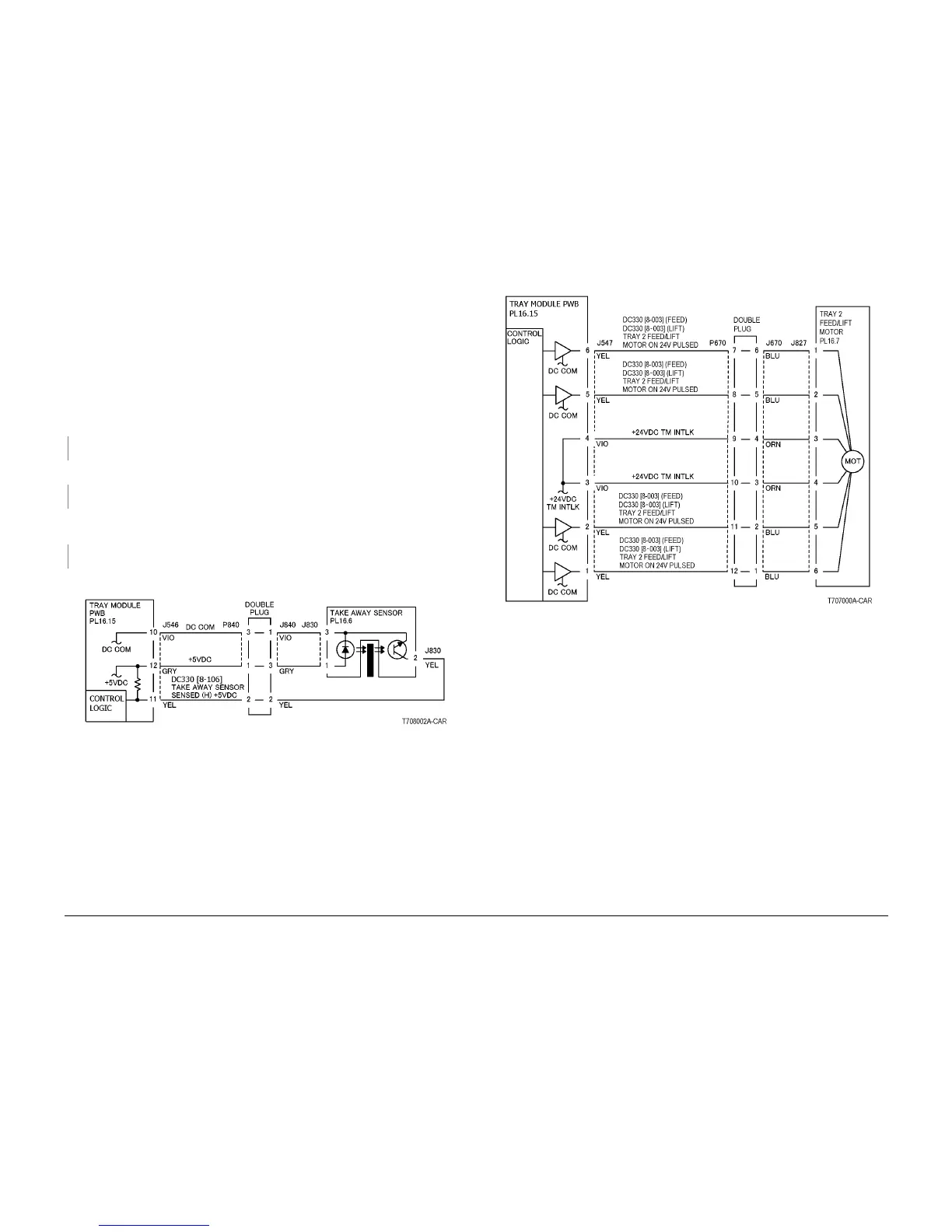

Figure 1 Takeaway Sensor CD
Figure 2 Tray 2 Feed/Lift Motor CD
To Next Page
