DC1632/2240
REP 14.2, REP 14.3
Prelaunch Training/Review
Repairs and Adjustments
REP 14.2 Rear Cover
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (Figure 1).
a. If optional feeder is installed, open Harness Cover and disconnect Harnesses
b. Remove Screws (4).
c. Remove Rear Cover.

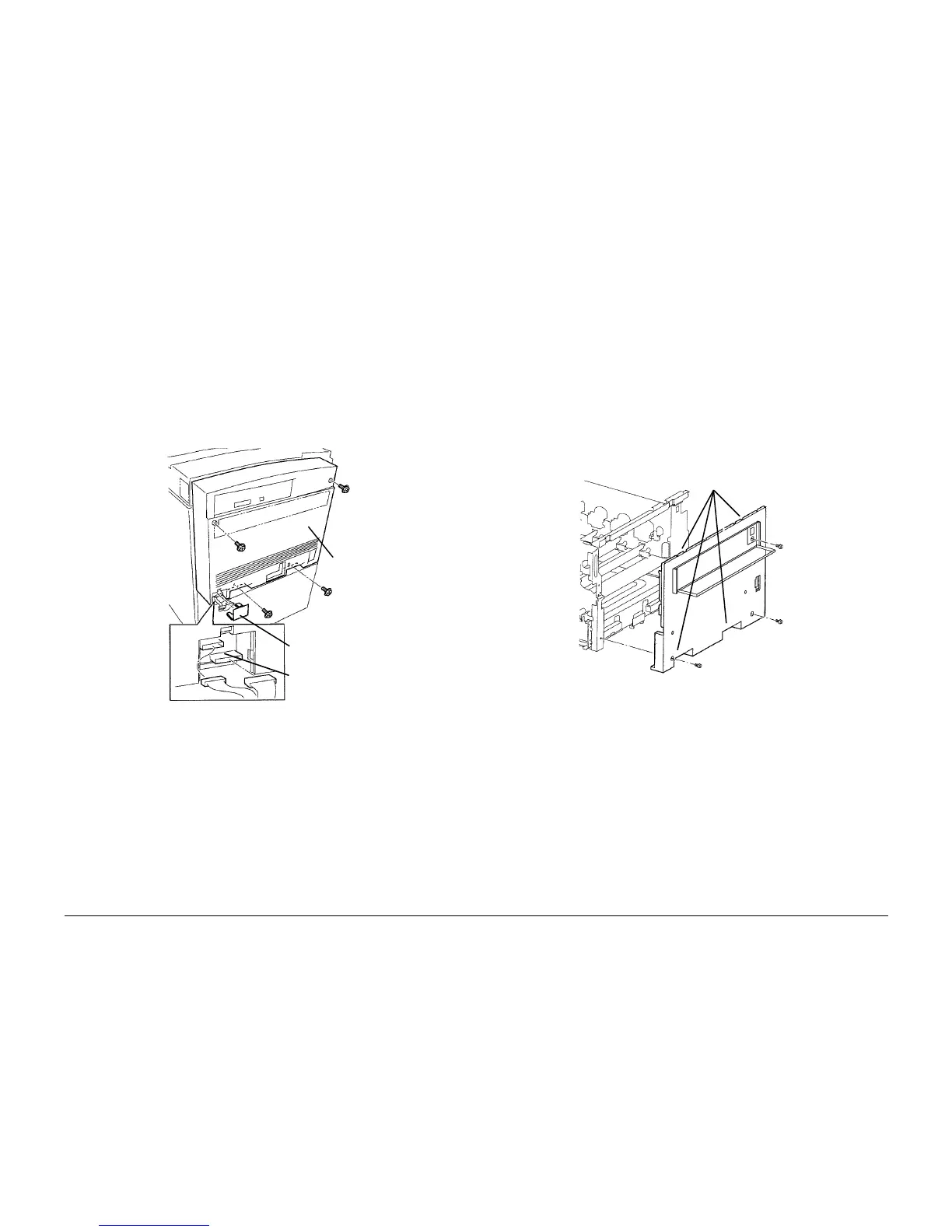

Figure 1 Removing Rear Cover
REP 14.3 Right Cover
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Right Cover (Figure 1).
a. Open Right Door.
b. Remove Screws (3).
c. Push cover down, or allow cover to drop slightly to release Hidden Tabs, then pull
cover away and remove it.
Figure 1 Removing Right Cover
Harness Cover
Harnesses
Screws (4)
Rear
Cover
Hidden Tabs
