6/02
4-60
DC1632/2240
REP 7.11
Prelaunch Training/Review
Repairs and Adjustments
REP 7.11 Tray 3 Feeder
Parts List on
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Tray 2.
2. Pull out Tray 3 and Tray 4.
3. Open the Left Cover.
4. Remove the Lower Chute.
5. Remove the Tray 3 Feeder Assembly (Figure 1).

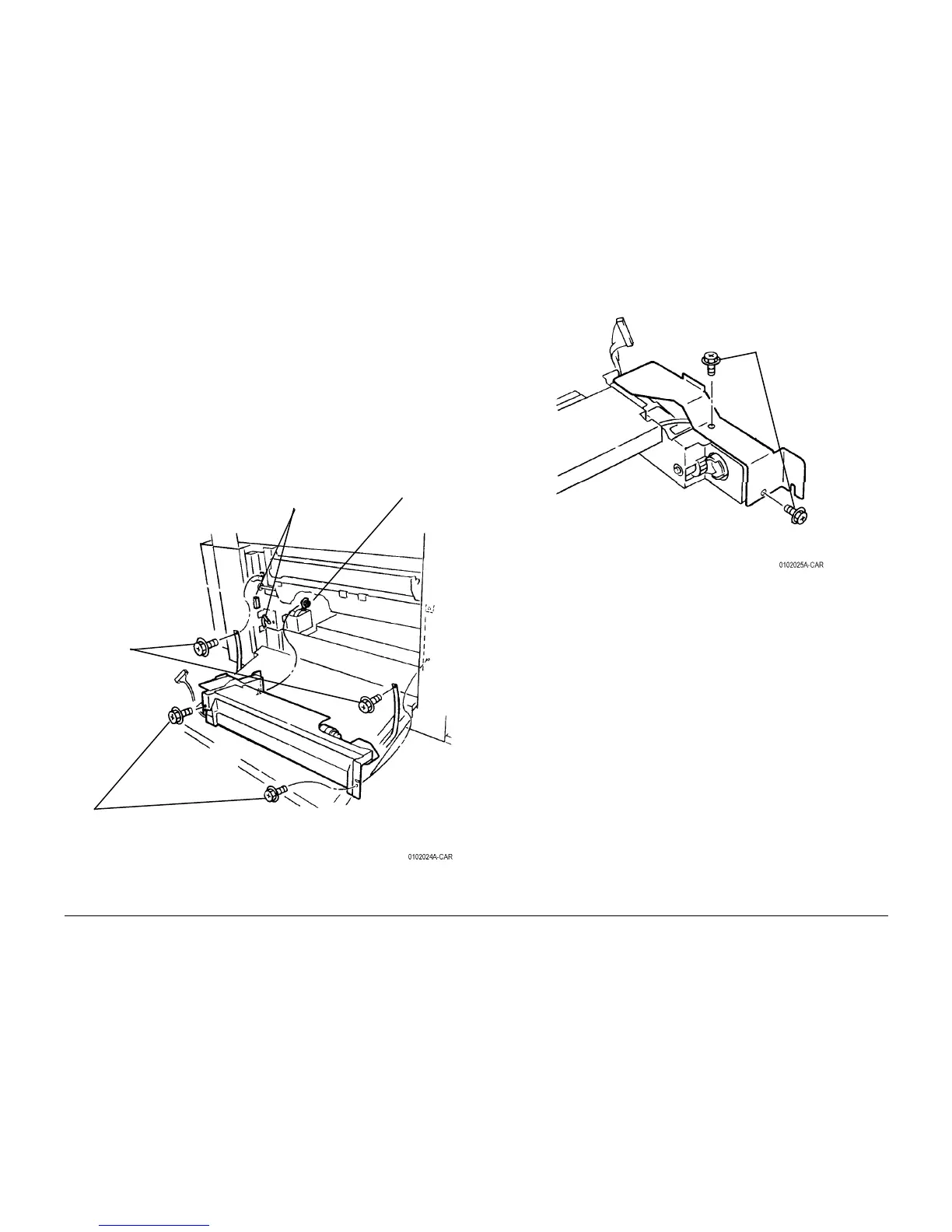

Figure 1 Removing the Tray 3 Feeder Assembly
6. Remove the Tray 3 Feeder from mounting bracket (Figure 2).
Figure 2 Removing Tray 3 Feeder from Bracket
1
Remove
Screws (2)
2
Release Wire
Harness and
disconnect P/J
3
Loosen
Screw (1)
4
Remove Screws
(2) and Tray 3
Feeder Assembly
Remove the
Screws (2)
and Bracket
To Next Page
