REP 14.6 Left Lower Cover Assembly
Parts List on PL 2.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Lower Left Cover (Figure ).
a. Open Left Lower Cover Assembly.
b. Carefully observe position of wiring harness for later reinstallation.
c. Disconnect harness connector and remove harness from harness guide.
d. Use flat tipped screwdriver to pry out Pivot Lock.
e. Remove Pivot Pin Sleeve.
f. Remove Lower Left Cover.

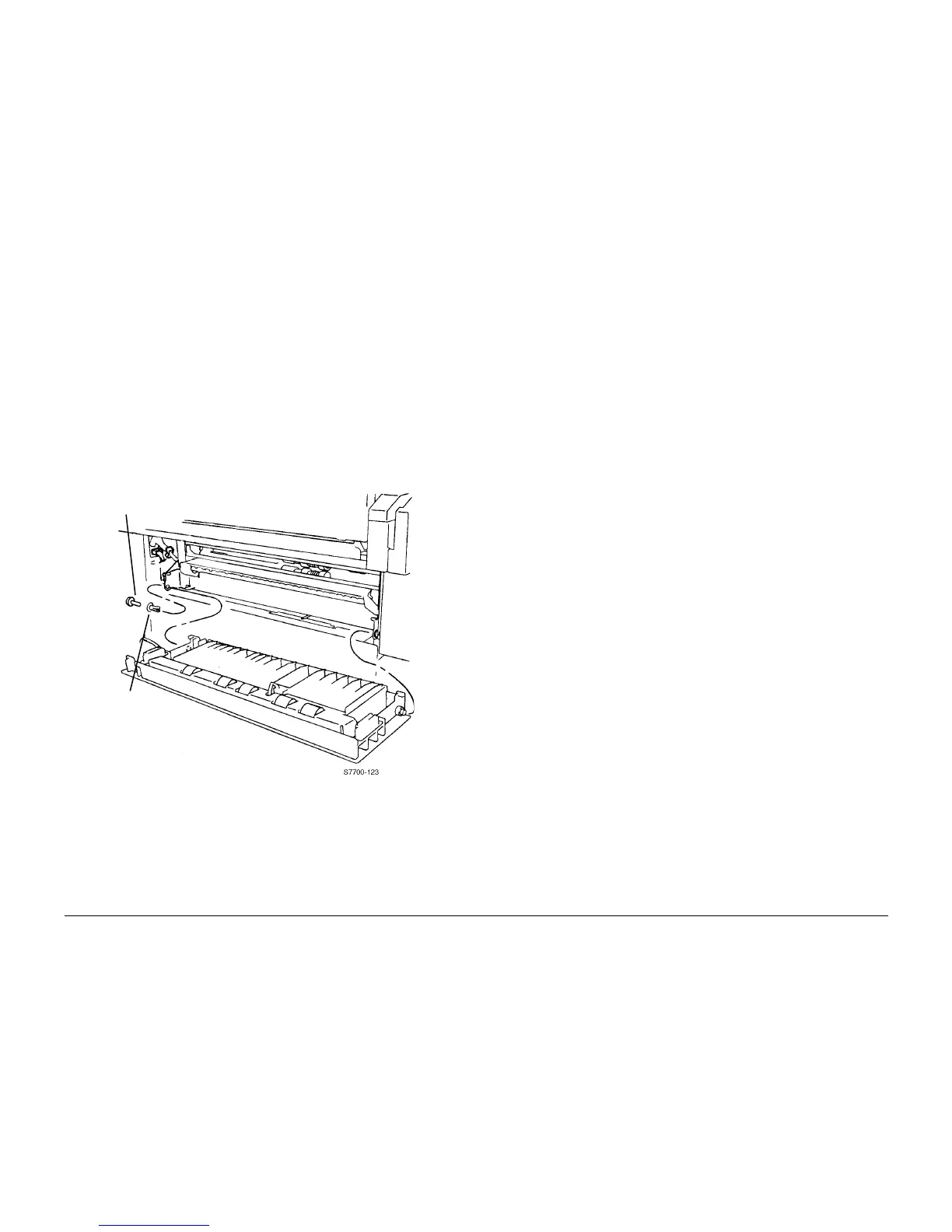

Figure 1 Removing Left Lower Cover Assembly
Replacement
NOTE: Partially install Pivot Sleeve. Then install Left Lower Cover Assembly and push in Pivot
Sleeve.
REP 14.7 Cover Assembly
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover.
a. Open Tray 1 approximately 100 mm for possible cover support.
b. Open Front Cover.
c. Remove screw to disconnect Support Strap from cover.
d. Repeat c for other strap.
e. Remove screws (2) on Hinge Pin Locks and remove hinge pin locks.
f. Remove Front Cover.
Pivot
Lock
Pivot
Sleeve
