6/02
4-21
DC1632/2240
REP 5.4
Repairs and Adjustments
Prelaunch Training/Review
REP 5.4 DADF Control PWB
Parts List on PL PL 20.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 5.18).
2. Remove DADF Control PWB (Figure1).
a. Disconnect connectors (7).
b. Remove DADF Control PWB from PWB supports (3).

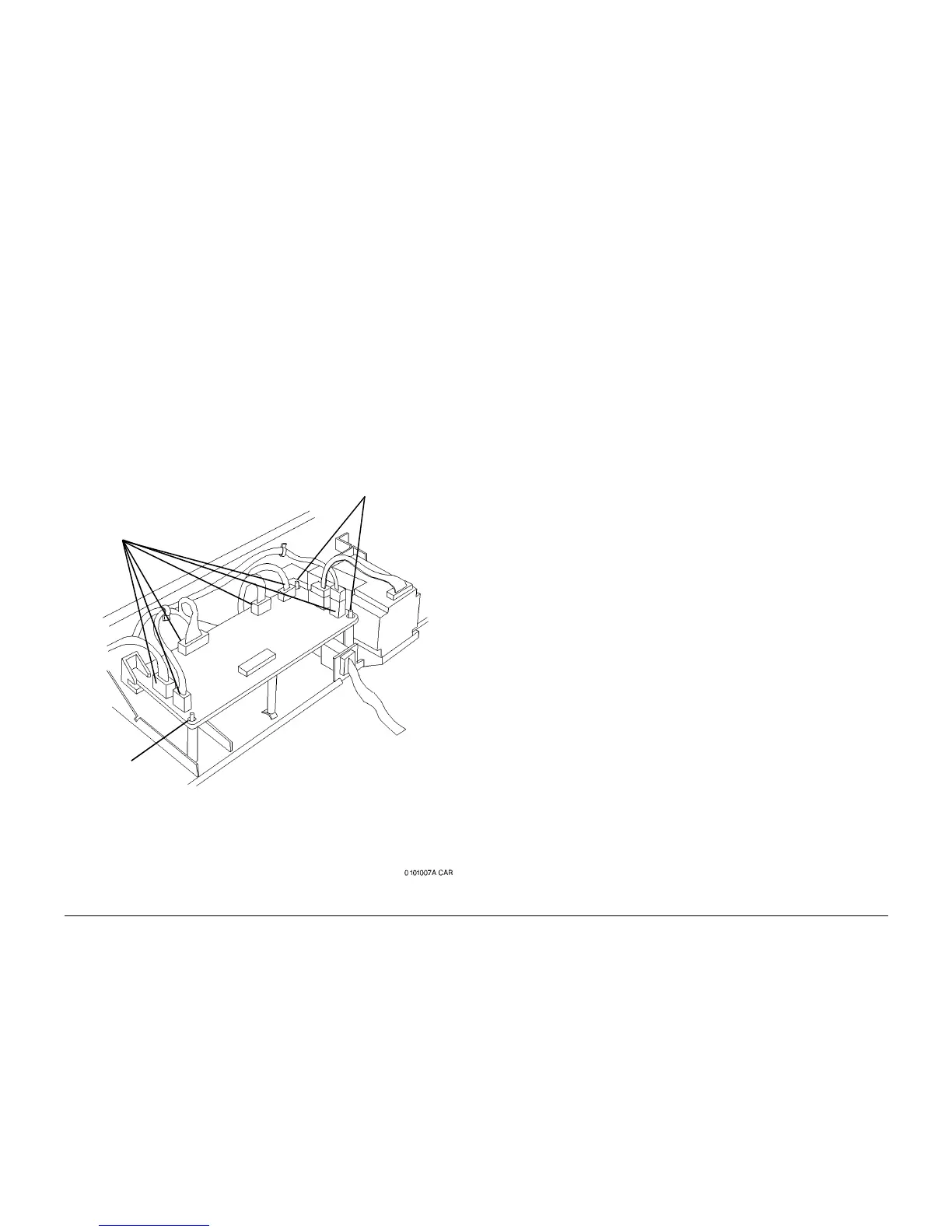

Figure 1 Removing DADF Control PWB
Connectors
Support (1)
Supports (2)
To Next Page
