Xerox DocuColor 1632 Service Manual

6/02
4-141
DC1632/2240
REP 12.20
Repairs and Adjustments
Prelaunch Training/Review
REP 12.20 Lowering Stacker Tray
Parts List on PL 17.1
Purpose
If the need arises to lower the Stacker Tray quickly or without power applied perform following:
1. Remove Finisher Rear Cover (PL 17.5).
2. While holding the Stacker Tray, move the gear outward and the Stacker Tray is released
(Figure 1).

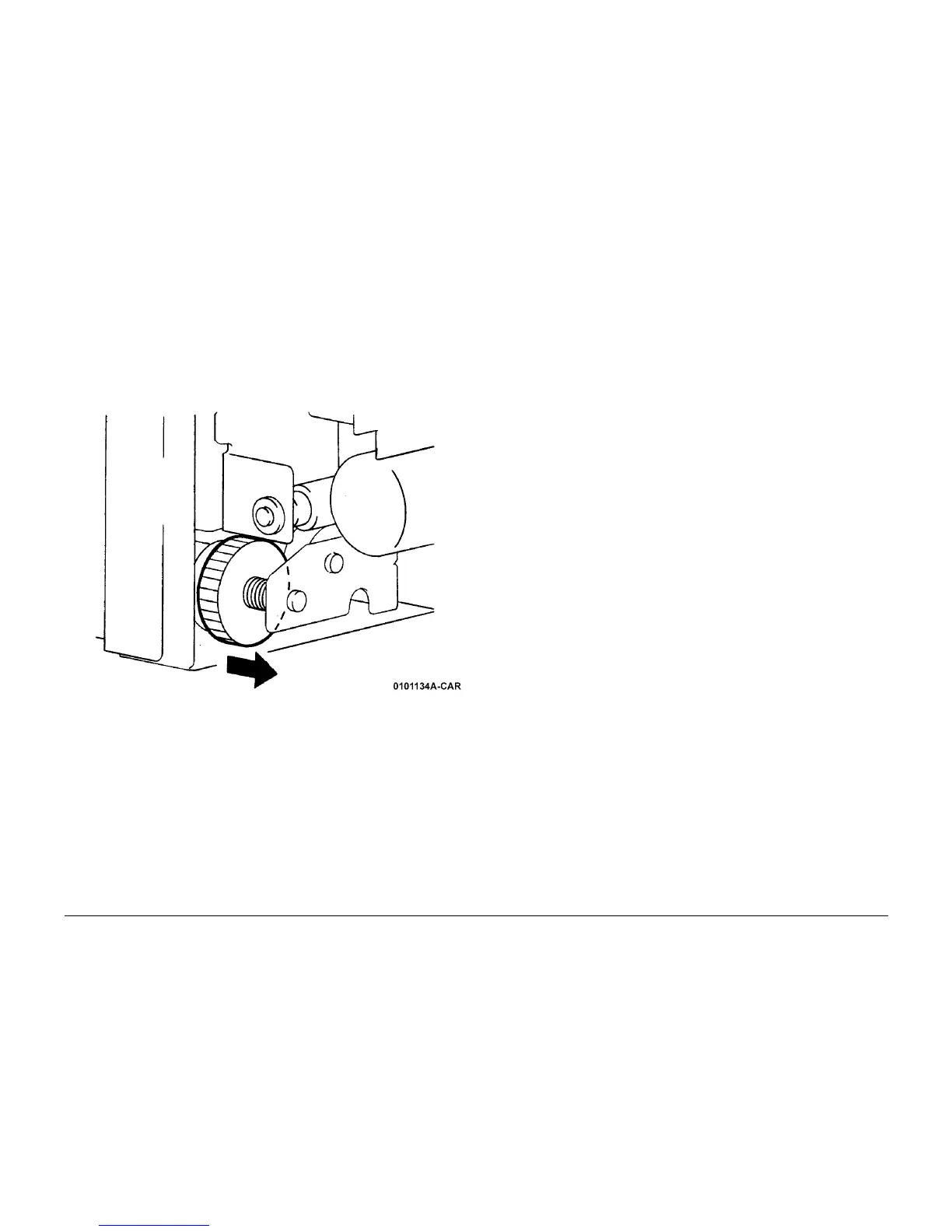

Figure 1 Moving Gear to Lower Stack Tray
