REP 8.1
Repairs and Adjustments
Prelaunch Training/Review
REP 8.1 Left Cover Assembly
Parts List on PL 2.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove Power Switch Cover (REP 14.6).
3. Remove Upper Rear Left Cover (REP 14.4).
4. Close Left Cover Assembly.
5. Remove Tray 5 (REP 7.1).
6. Remove Fuser Front Cover (REP 14.8).
7. Disconnect Electrical Connectors (3) (Figure 1).

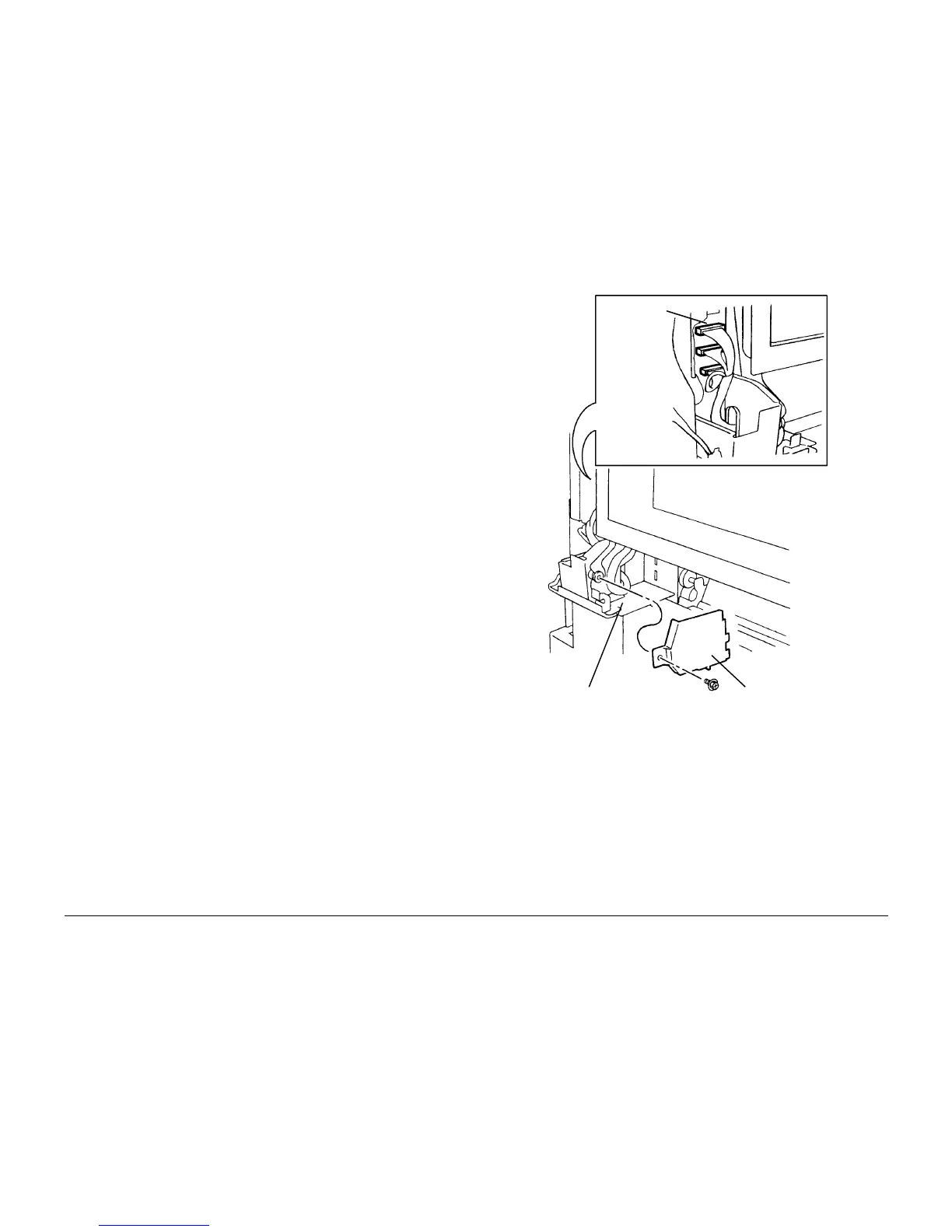

Figure 1 Disconnecting Electrical Connectors (3)
1
Disconnect (3)
2
Remove Screw
and Cover
3
Move Harnesses
into this space
To Next Page
