6/02
4-50
DC1632/2240
REP 6.13
Prelaunch Training/Review
Repairs and Adjustments
REP 6.13 Exposure Lamp
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
CAUTION
Avoid touching exposure lamp with your bare hands during removal or installation. Oil from
your hands will contaminate surface of lamp.
1. Open DADF (REP 5.1).
2. Remove Platen Glass (REP 6.2).
3. Move Full Rate Carriage to frame notch.
4. Remove Exposure Lamp (Figure 1).
a. Disconnect connector.
b. Remove screw.
c. Remove Exposure Lamp.

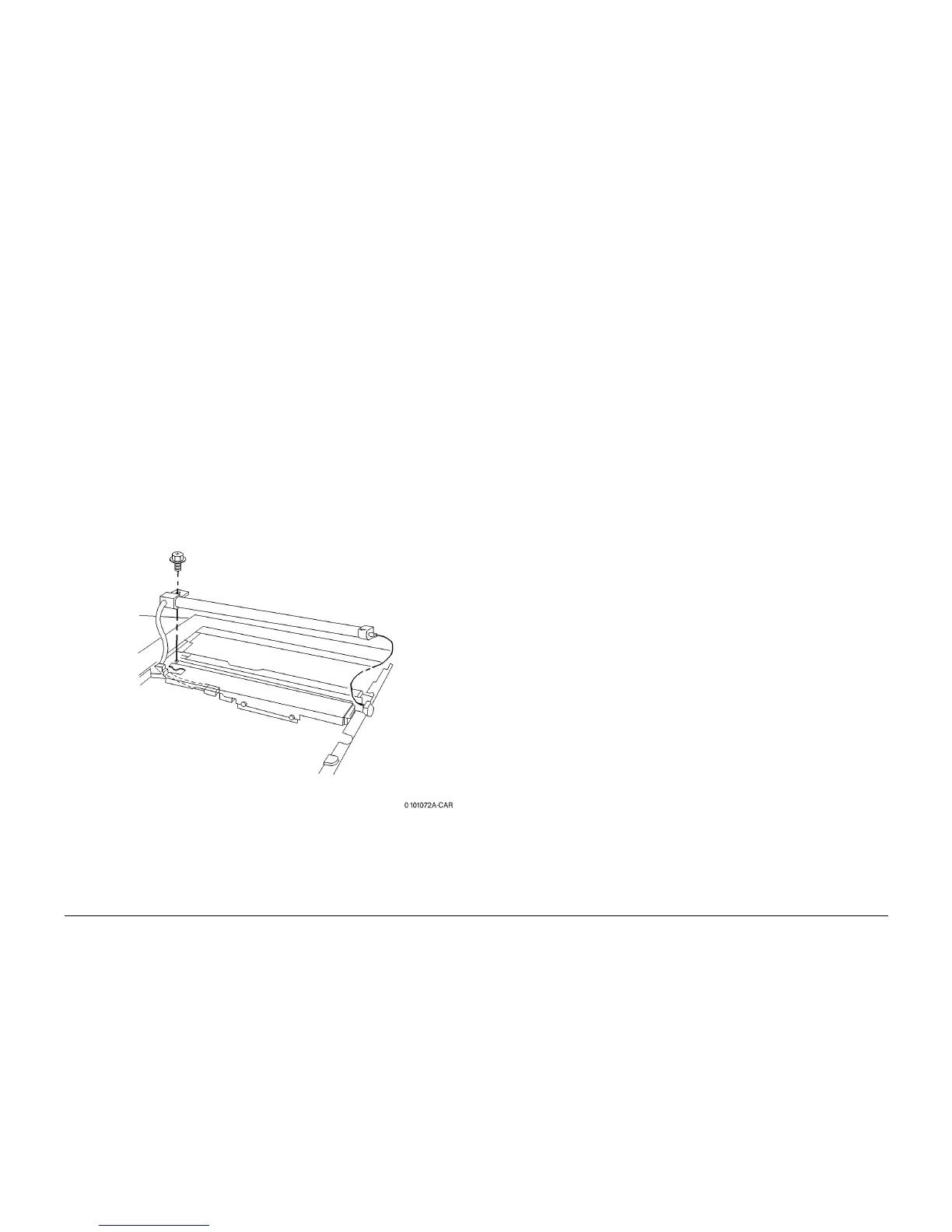

Figure 1 Removing Exposure Lamp
To Next Page
