REP 5.9 Retard Roll
Parts List on PL 20.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Top Cover.
2. Remove following:
a. Front Cover (PL 20.1).
b. Entrance Tray (PL 20.1).
3. Remove Lower Chute Assembly (REP 5.8).
4. Remove Retard Roll (Figure 1).

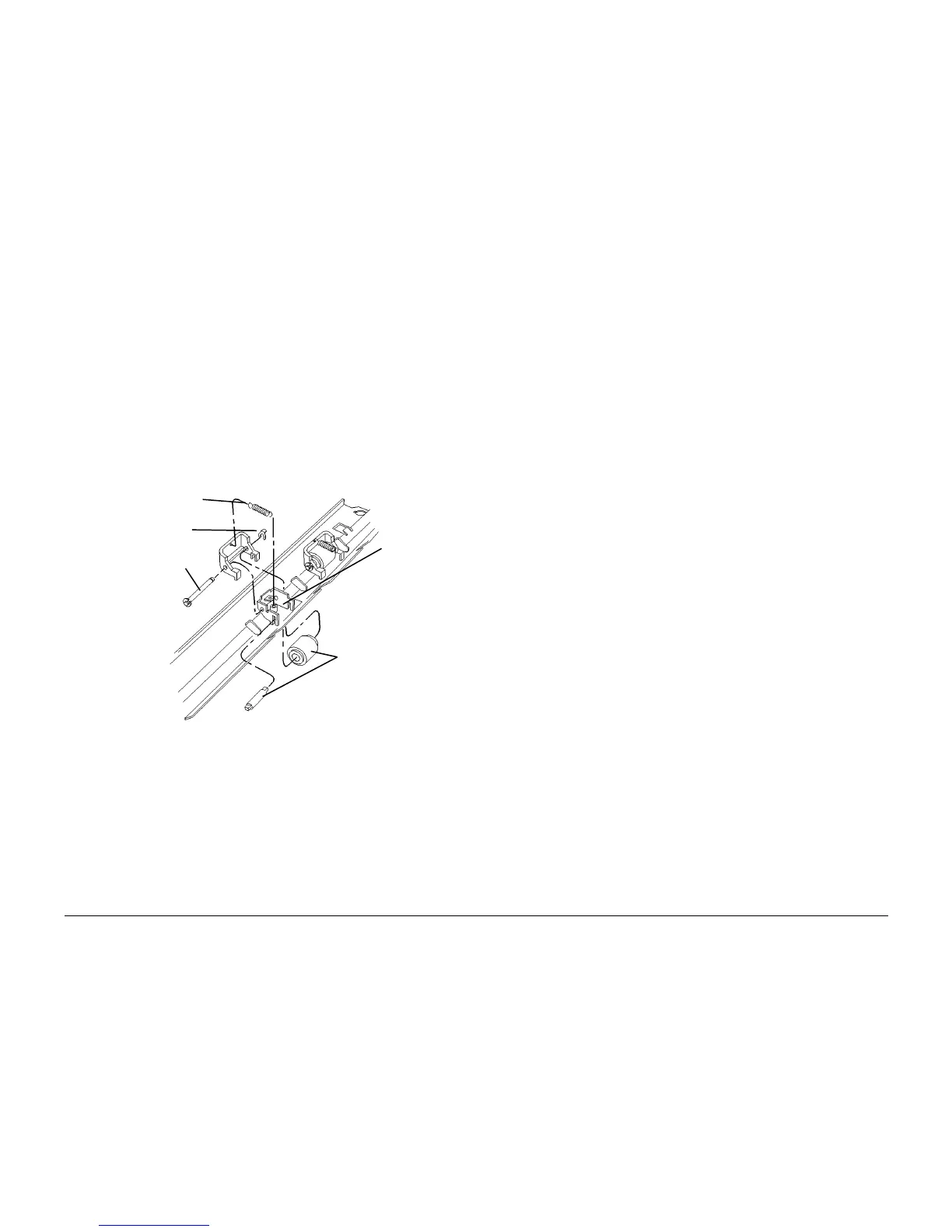

Figure 1 Removing Retard Roll
Replacement
CAUTION
While replacing Retard Roll, make sure that Retard Roll Plastic Guide is in correct position.
2
Remove Spring
3
Remove Clip
4
Remove Shaft
5
Remove
Bracket
6
Remove Shaft
and Retard Roll
1
Make note of
position of
plastic guide
To Next Page
