Xerox DocuColor 1632 Service Manual

6/02
4-59
DC1632/2240
REP 7.10
Repairs and Adjustments
Prelaunch Training/Review
REP 7.10 Tray 2 Feeder
Parts List on
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 2.
2. Remove the Left Lower Cover. (PL 16.16)
3. Remove the Tray 2 Feeder (Figure 1).

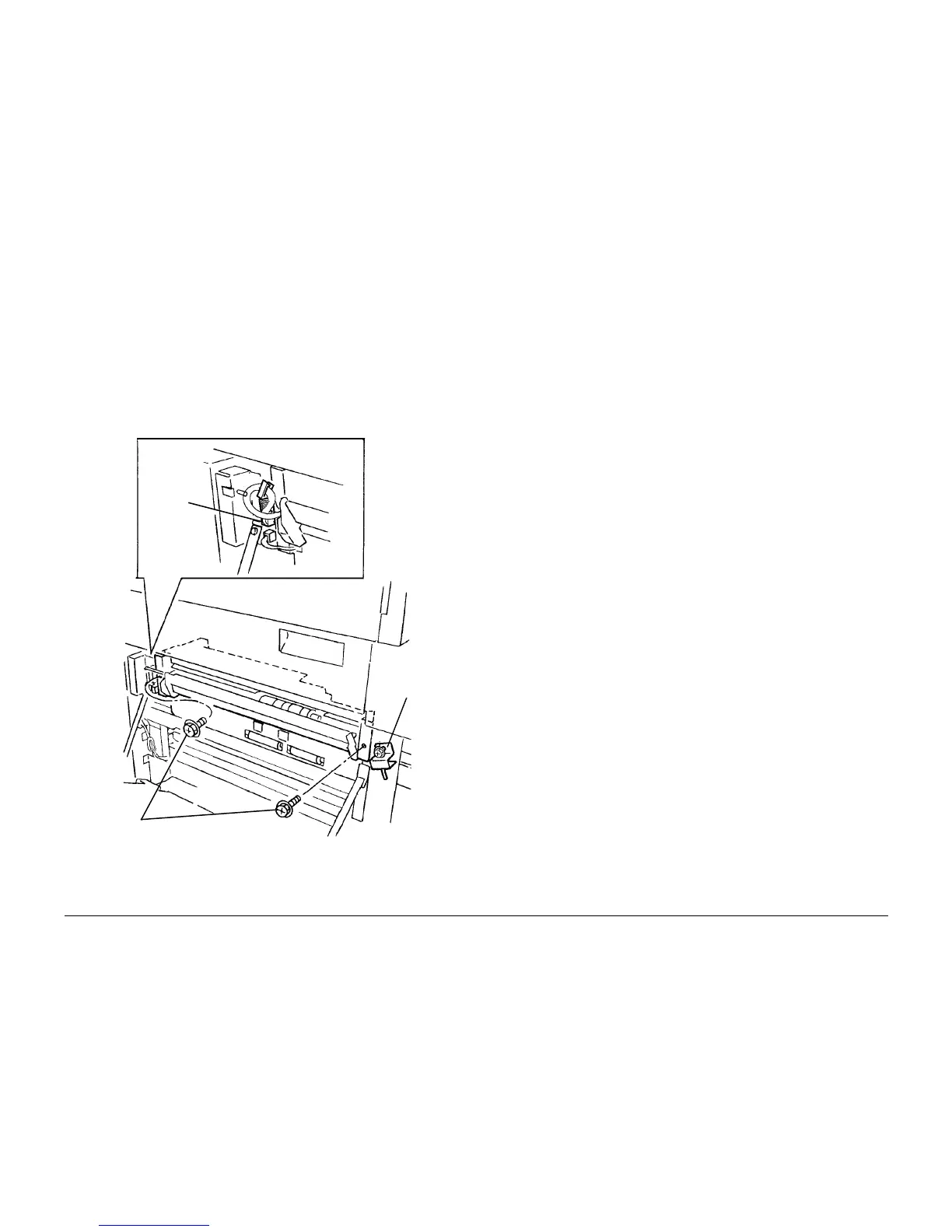

Figure 1 Removing the Tray 2 Feeder
1
Loosen
Screw and
move
Bracket
2
Release
Wire Har-
ness from
Clamp and
disconnect
P/J
3
Remove
Screws (2)
and Feeder
