Xerox DocuColor 1632 Service Manual

6/02
2-417
DC1632/2240
OF 99-5
Status Indicator RAPs
Prelaunch Training/Review
OF 99-5 Solenoid / Clutch Shorted
Procedure
Turn off the power.
Remove the PWB connector. There is 10 Ohmís or less measured between the connector
Pin 3 and the frame.
YN
Replace the PWB.
Check for a short circuit to frame of the circuit between PWB Pin 3 and the solenoid/clutch Pin
2.
If the check is OK, replace the solenoid/clutch.

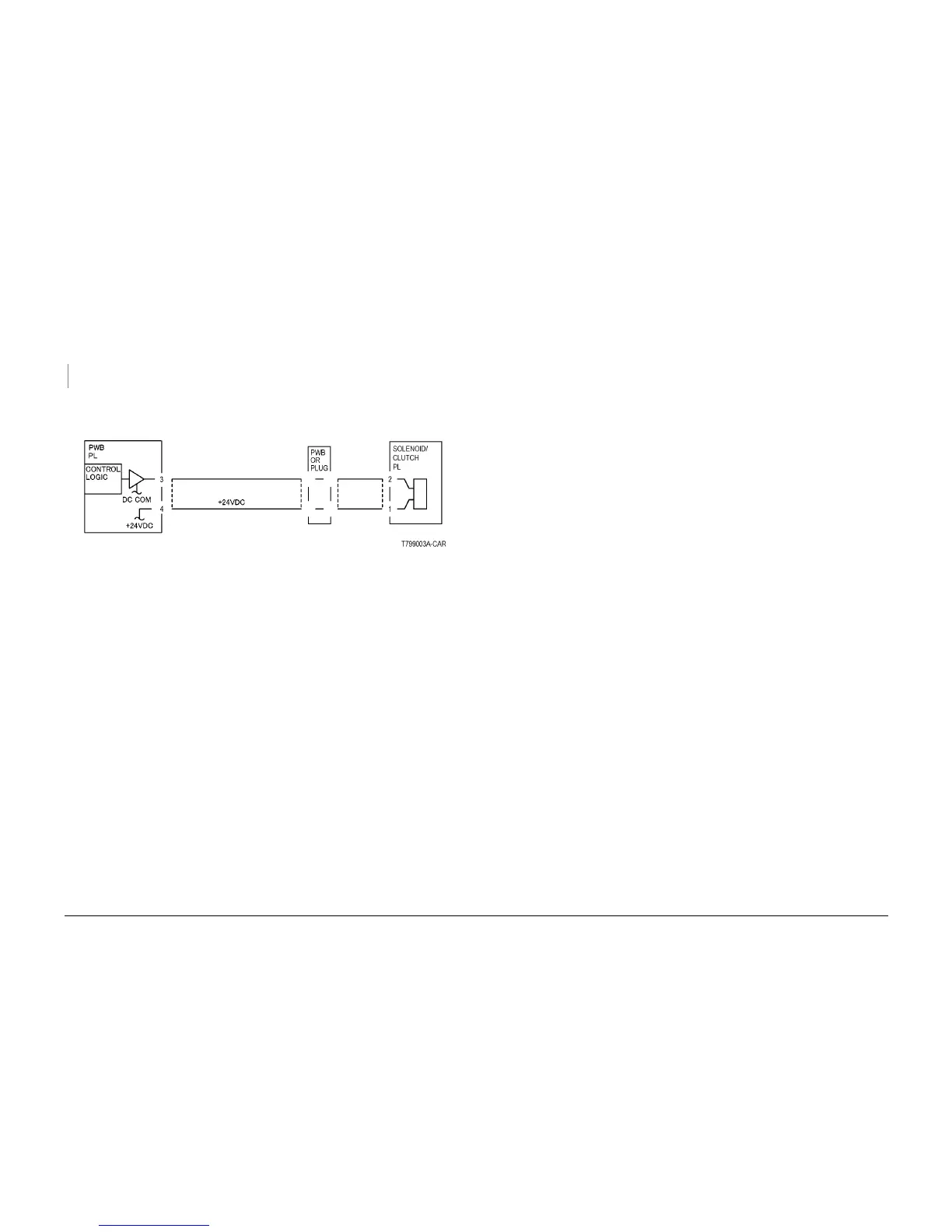

Figure 1 Solenoid/Clutch CD
