Xerox DocuColor 1632

6/02
4-185
DC1632/2240
ADJ 12.1
Repairs and Adjustments
Prelaunch Training/Review
ADJ 12.1 Finisher Alignment
Purpose
Align IOT copy output with entrance to Finisher H Transport.
Adjustment
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Ensure H Transport is set correctly (Figure 1) and (Figure 2).

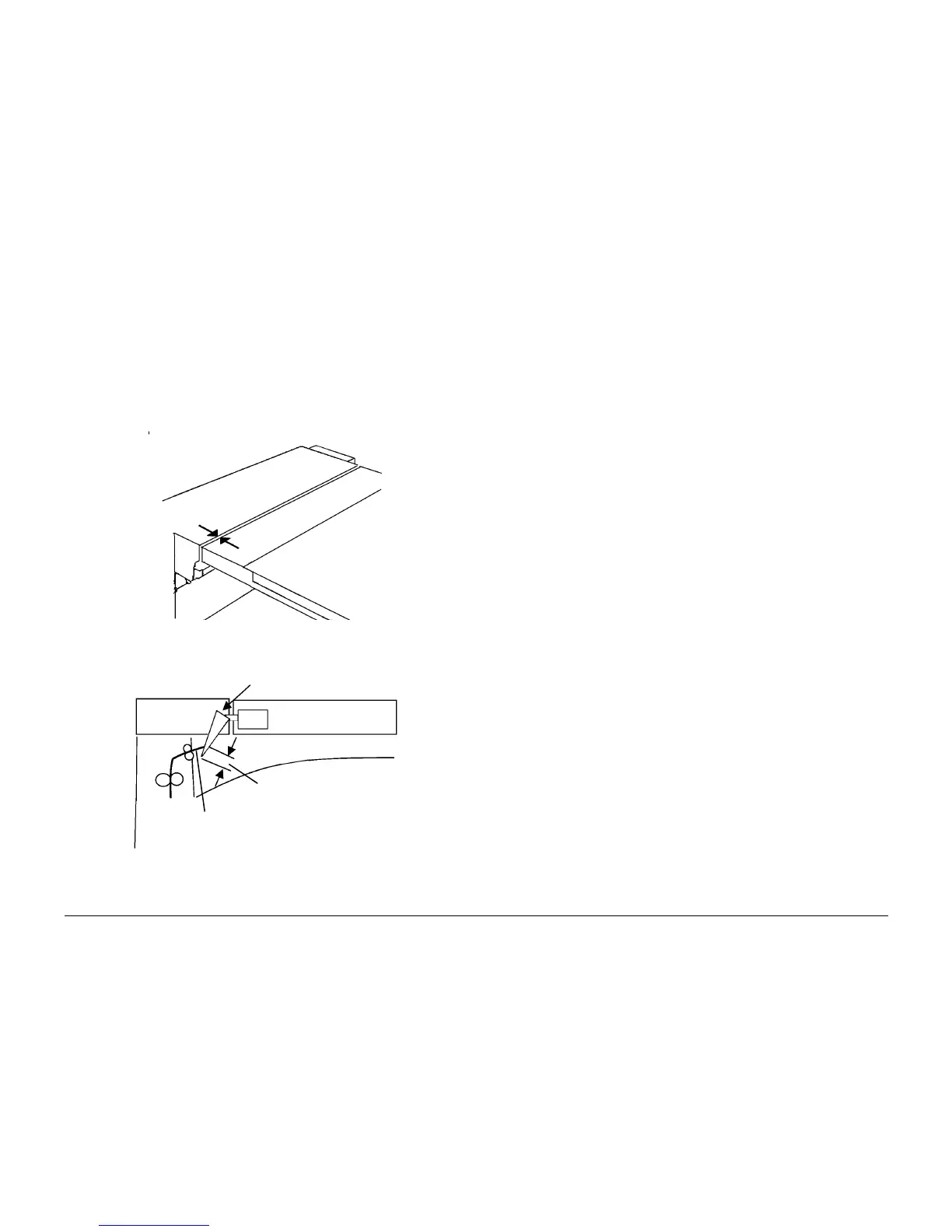

Figure 1 H Transport Clearance
Figure 2 H Transport Gate Clearance
5 mm
max.
10 mm
H Transport Gate
Copy in Exit
