REP 9.16 IBT Cleaner Assembly
Parts List on PL 5.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Release and move Xerographic Release Lever down.
3. Remove Right Cover (REP 14.3).
4. Remove IBT Belt Assembly just enough to access Belt Cleaner (REP 9.15).
CAUTION
In next step, toner may spill out of Belt Cleaner if cleaner is handled carelessly.
5. Remove Screws and remove Belt Cleaner (Figure 2).

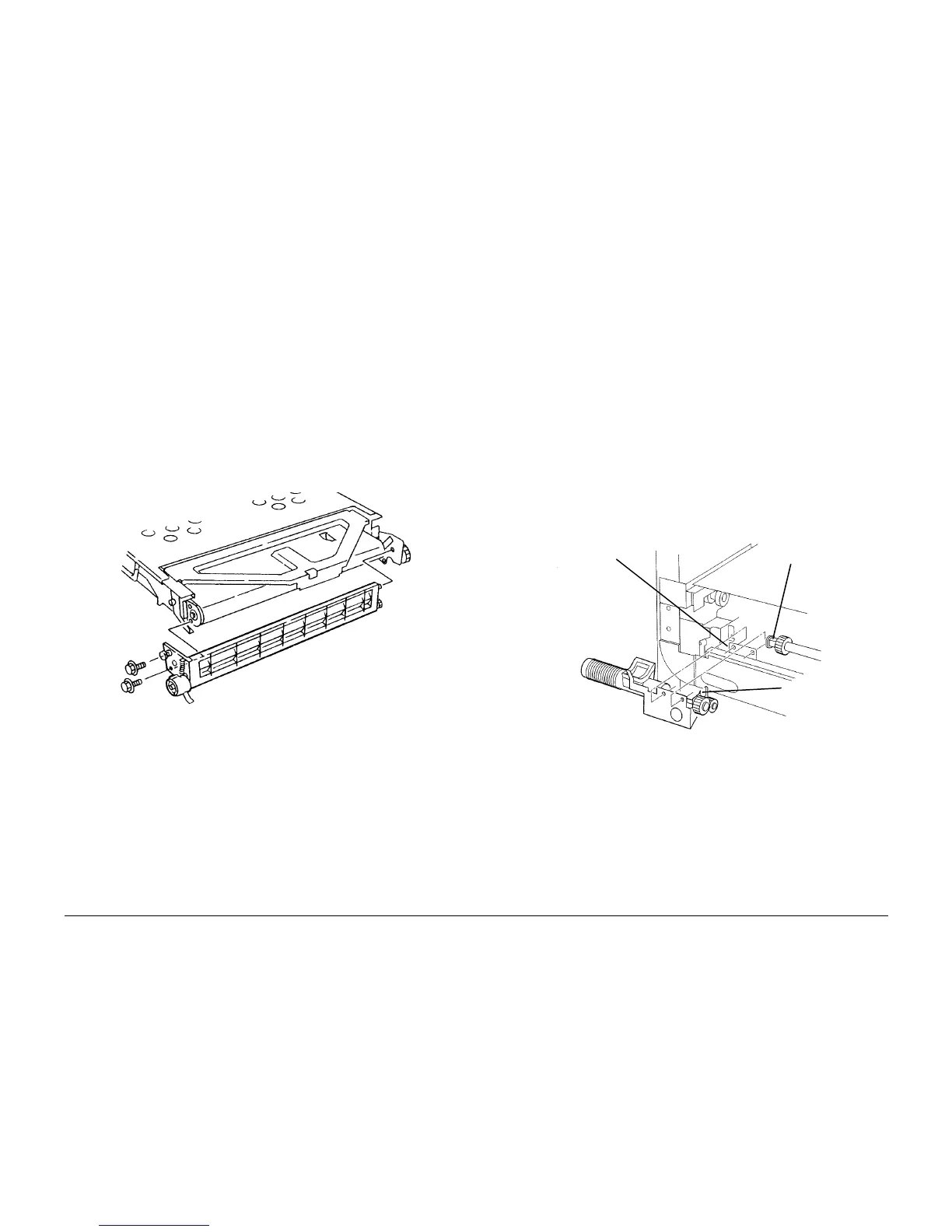

Figure 1 Removing IBT Cleaner Assembly
Replacement
Ensure both rear locating pins engage holes in IBT Belt Assembly frame during installation of
IBT Cleaner Assembly.
REP 9.17 Auger Assembly
Parts List on PL 5.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Cartridge (REP 9.4).
3. Release and move Xerographic Release Lever down.
4. Remove Right Cover (REP 14.3).
5. Remove Belt Module (REP 9.15).
6. Move Xerographic Release Lever to up position.
7. Remove Waste Toner Agitator (Figure 1).
a. Remove Screws (2).
b. Move Waste Auger toward Bearing to disengage Cutout from Bearing.
c. Remove Waste Auger.
Figure 1 Removing Waste Toner Agitator
Replacement
Move Xerographic Release Lever to down position before reinstalling Belt Module.
Screws
(2)
Screws (2)
Cutout
Bearing
