Xerox DocuColor 1632 Service Manual

6/02
2-162
DC1632/2240
9-910, 9-911
Prelaunch Training/Review
Status Indicator RAPs
9-910 Drum (Y) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed.
Procedure
Enter dC330 [009-151, Drum (Y) Data]. The display is H.
YN
Check the wires and connectors. If the check is OK, replace the Yellow Drum Cartridge
(refer to Section 6, Machine Consumables).
Replace the MCU PWB. (PL 13.1).

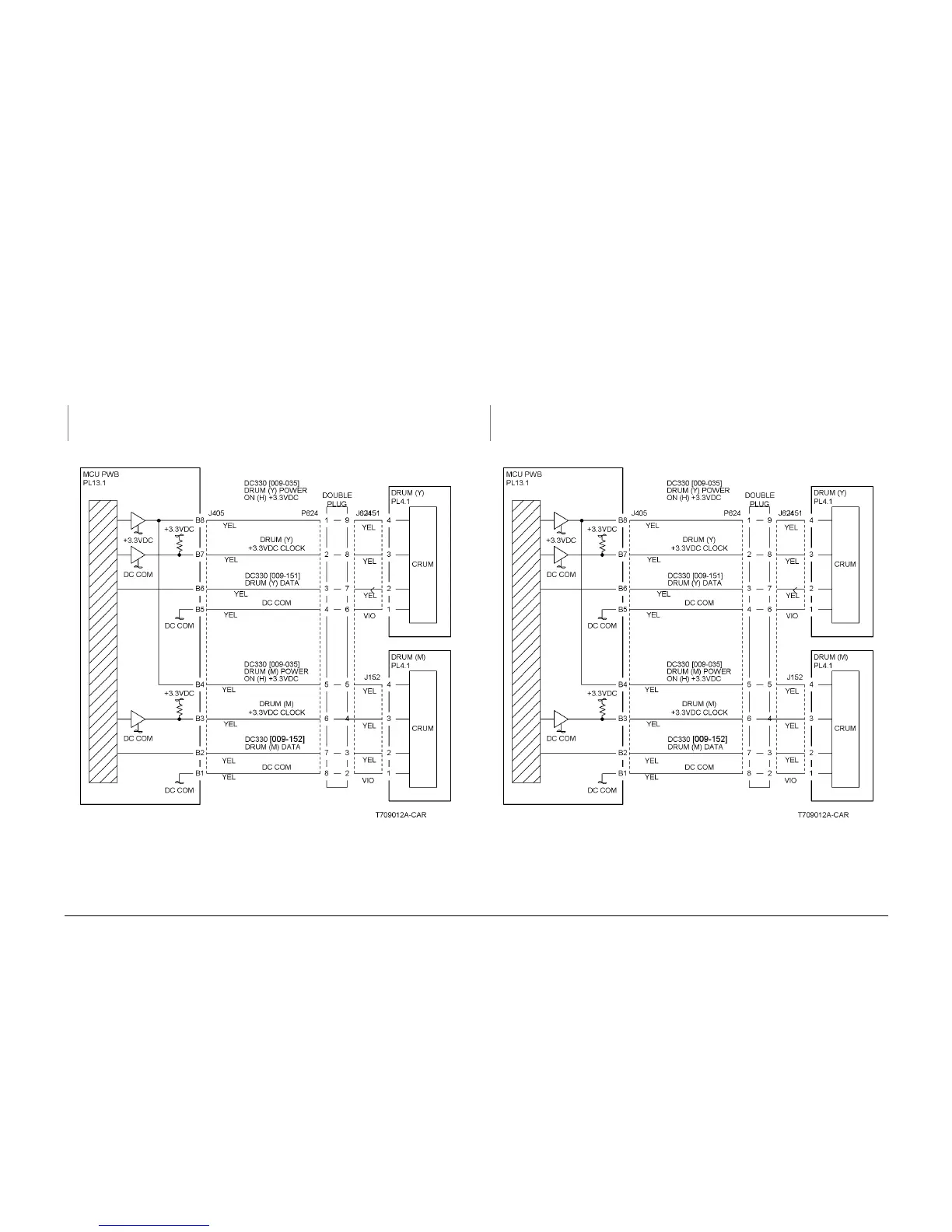

Figure 1 Drum Y Communication
9-911 Drum (M) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed.
Procedure
Enter dC330 [009-152 (Drum (M) Data]. The display is H.
YN
Check the wires and connectors. If the check is OK, replace the Magenta Drum Cartridge
(refer to Section 6, Machine Consumables).
Replace the MCU PWB. (PL 13.1).
Figure 1 Drum M Communication
