Xerox DocuColor 1632 Service Manual

6/02
5-89
DC1632/2240
PL 20.4
Parts List
Prelaunch Training/Review

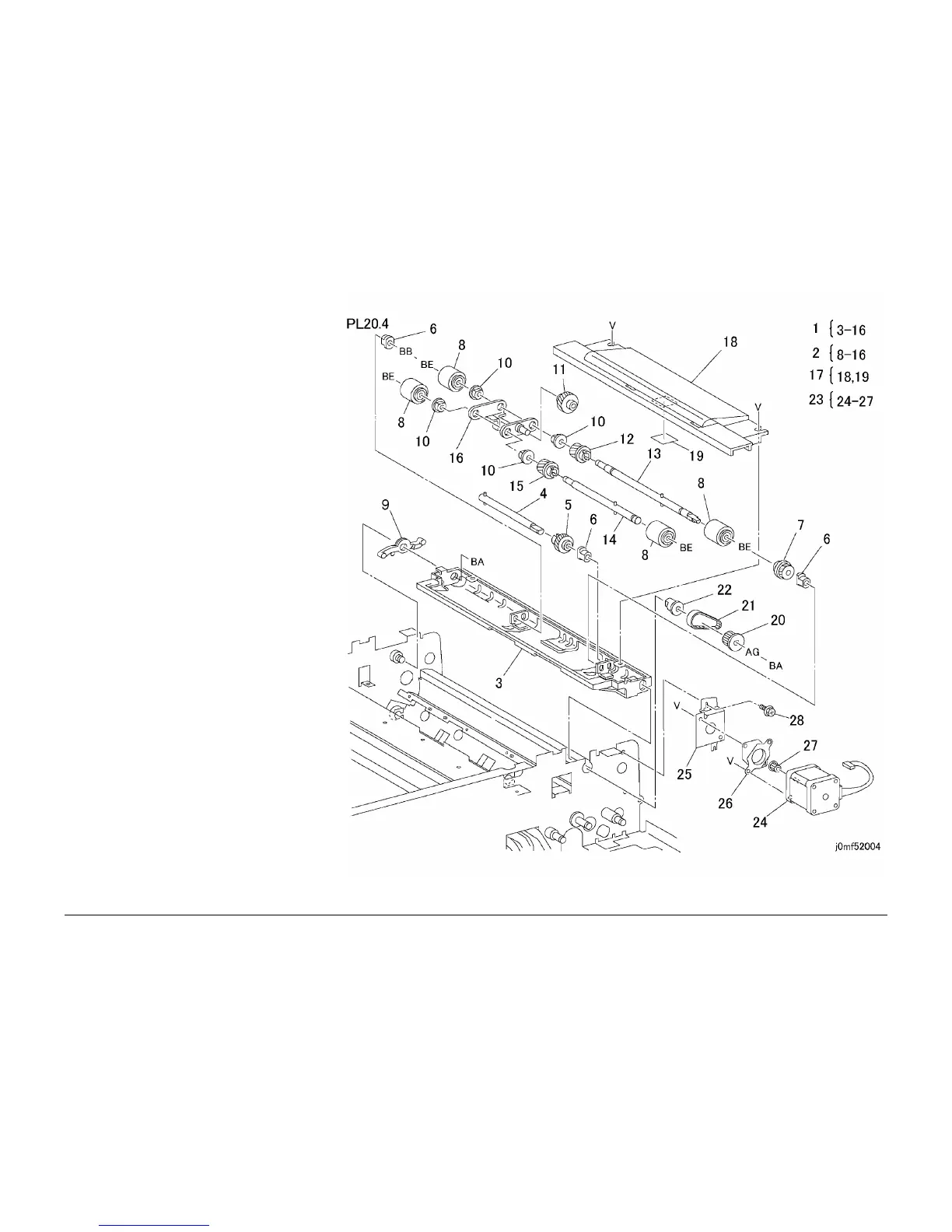

PL 20.4 Document Feed Chute
(Upper), Feed Motor
Item Part Description
1 054K13600 Document Feed Upper Chute
Assembly
2 059K11840 Feed Roll Assembly
3 – Upper Baffle (P/O PL 20.4 Item 1)
4 – Drive Shaft (P/O PL 20.4 Item 1)
5 – Gear (P/O PL 20.4 Item 1)
6 013E92760 Bearing
7 – Gear (P/O PL 20.4 Item 1)
8 600K90370 Roll Kit (2 Rolls/Kit) (REP 5.6 REP
5.7)
9 012E09750 Link
10 413W77359 Bearing
11 – Gear (P/O PL 20.4 Item 1,PL 20.4
Item 2)
12 – Gear (P/O PL 20.4 Item 1,PL 20.4
Item 2)
13 – Feed Shaft (P/O PL 20.4 Item 1,PL
20.4 Item 2)
14 – Nudger Shaft (P/O PL 20.4 Item
1,PL 20.4 Item 2)
15 – Gear (P/O PL 20.4 Item 1,PL 20.4
Item 2)
16 – Housing (P/O PL 20.4 Item 1,PL
20.4 Item 2)
17 802K08320 Inner Cover Assembly
18 – Inner Cover (P/O PL 20.4 Item 17)
19 – Pad (P/O PL 20.4 Item 17)
20 – Pulley (Not Spared)
21 023E20000 Belt
22 – Bearing (Not Spared)
23 127K32680 Feed Motor Assembly (REP 5.5)
24 – Feed Motor (P/O PL 20.4 Item 23)
25 – Motor Bracket (P/O PL 20.4 Item
23)
26 – Damper (P/O PL 20.4 Item 23)
27 – Pulley (P/O PL 20.4 Item 23)
28 – Screw (Not Spared)
