5-195 Document Size Mismatch
Different sized documents are detected in the NO MIX mode.
Procedure
Check the following in dC330:
ï [5-150] DADF Size Sensor 1 (Front)
ï [5-151] DADF Size Sensor 2 (Rear)
The components are good.
YN
Go to the appropriate circuit and check the component.
Check the following:
ï The SIZE SENSOR for correct installation
ï Multiple feed due to an improper retard pressure
ï DADF document skew
ï Document for damage, out of specification and an improper loading
ï The DADF Control PWB for failure (PL 20.3).
ï Different document size (such as Mixed documents)

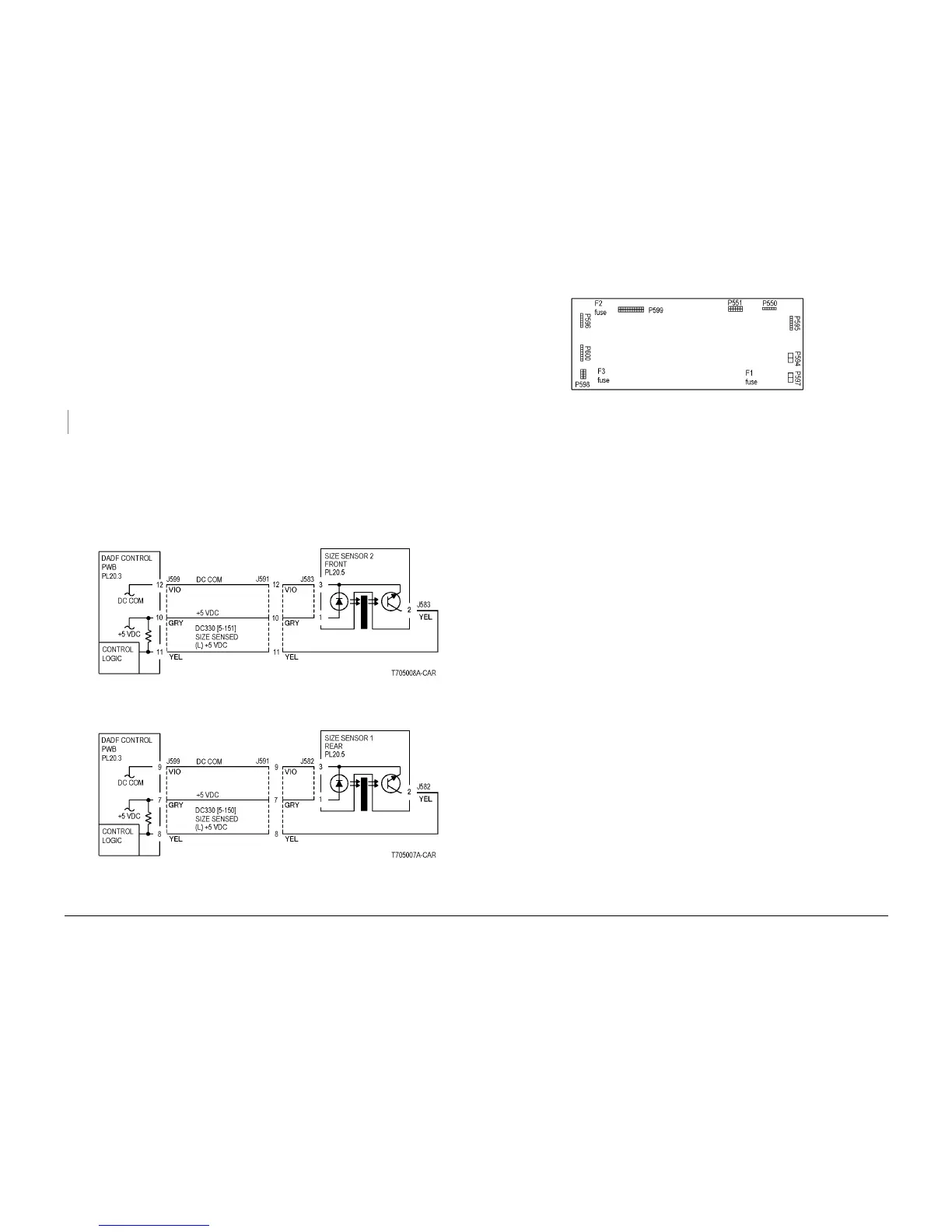

Figure 1 Size Sensor 2 Front CD
Figure 2 Size Sensor 1 Rear CD
Figure 3 DADF Control PWB
