Xerox DocuColor 1632 Service Manual

6/02
5-72
DC1632/2240
PL 17.7
Prelaunch Training/Review
Parts List

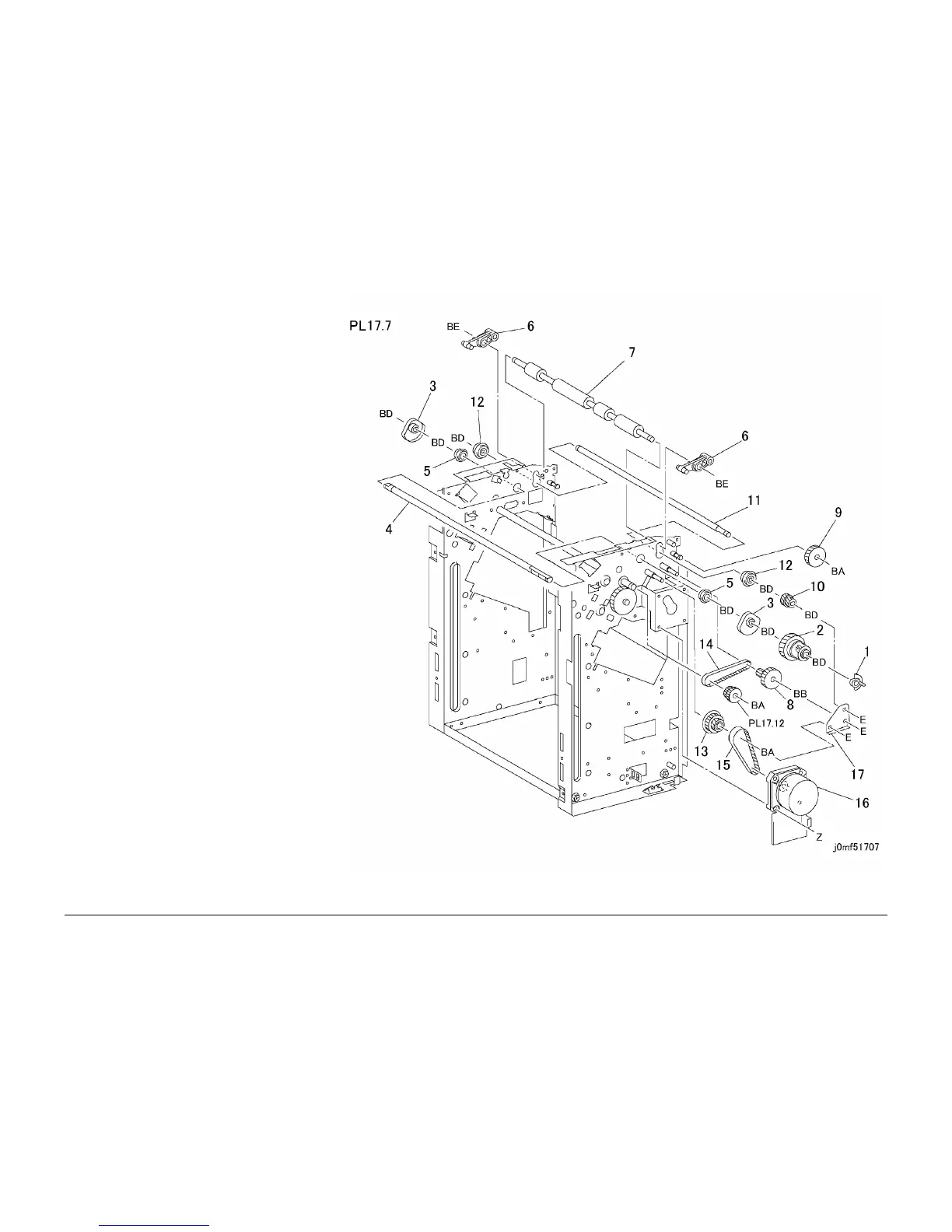

PL 17.7 Paper Transportation: 1 of 2
Item Part Description
1 120E20690 Actuator
2 121K24610 Decurler Cam Clutch
3 008E94070 Cam
4 – Shaft (Not Spared)
5 – Bearing (Not Spared)
6 031E94030 Arm
7 059K20210 Decurler Roll (REP 12.7)
8 007E67740 Gear (40Z/20T)
9 007E67750 Gear (40Z)
10 007E72090 Gear (18Z/21T)
11 – Shaft (Not Spared)
12 – Bearing (Not Spared)
13 007E67730 Gear (23Z/52T)
14 023E20160 Belt (REP 12.9)
15 423W29655 Belt
16 127K32840 Finisher Drive Motor (REP 12.8)
17 – Bracket (Not Spared)
