Xerox DocuColor 1632

6/02
5-38
DC1632/2240
PL 8.1
Prelaunch Training/Review
Parts List

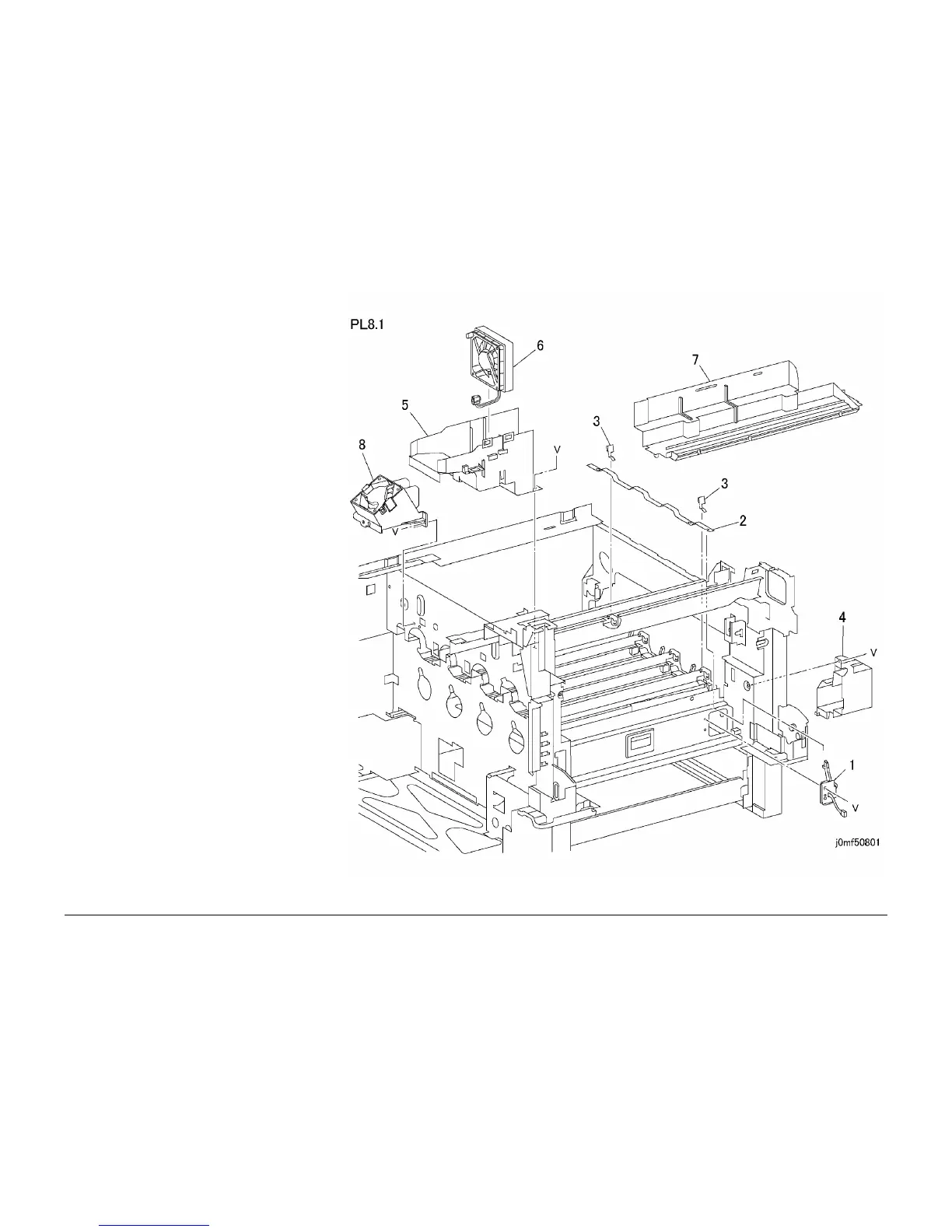

PL 8.1 Air System
Item Part Description
1 127K32730 ROS Shutter Motor (REP 9.2)
2 – Link (Not Spared)
3 – Spring (Not Spared)
4 – Inner Cover (Not Spared) (REP
14.10)
5 – Duct (Not Spared)
6 127K29340 Fuser Fan (REP 10.2)
7 – Duct (Not Spared)
8 127K36640 ROS Fan
