Xerox DocuColor 1632 Service Manual

6/02
5-74
DC1632/2240
PL 17.9
Prelaunch Training/Review
Parts List

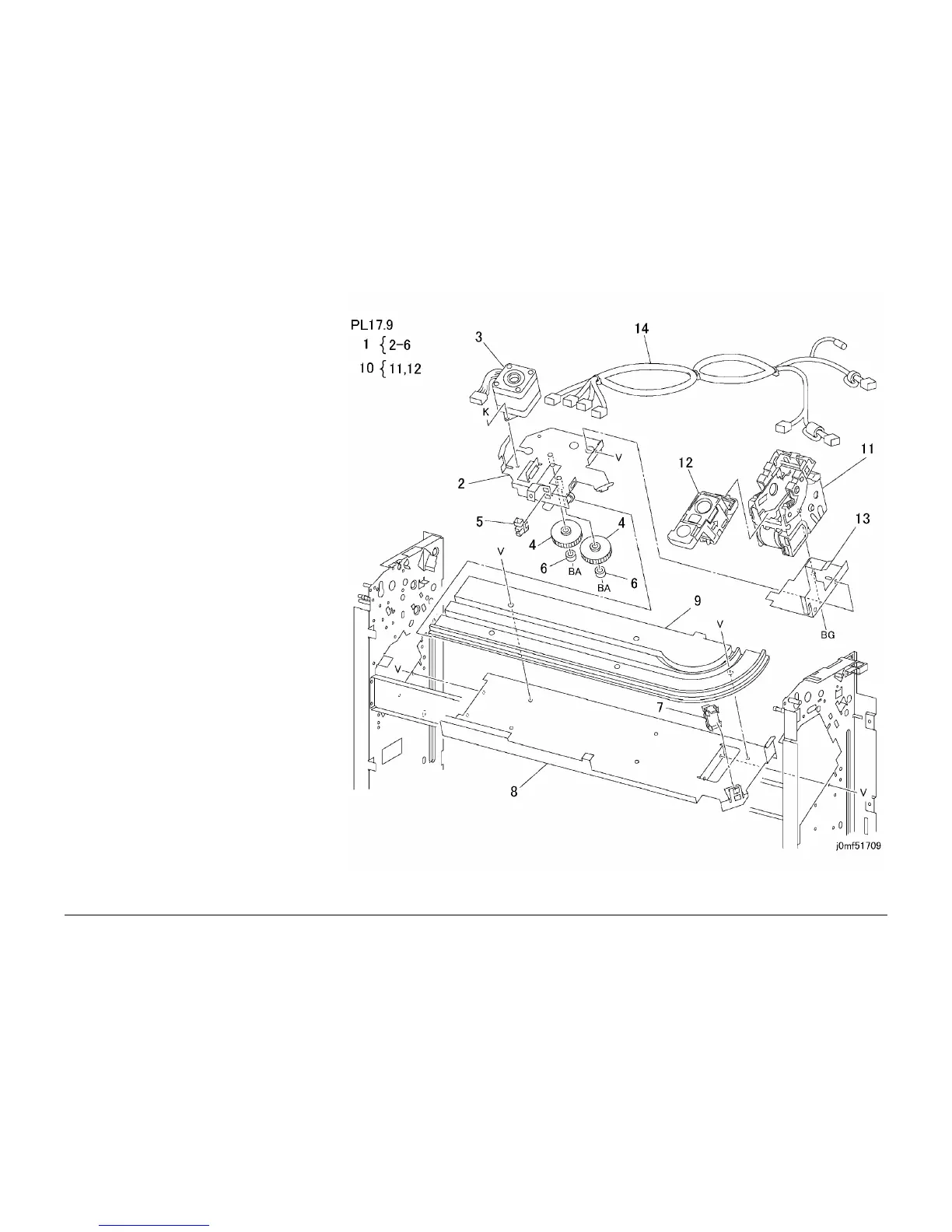

PL 17.9 Stapler Unit
Item Part Description
1 041K94260 Carriage Assembly
2 – Bracket (P/O PL 17.9 Item 1)
3 127K32860 Staple Move Motor
4 – Gear (P/O PL 17.9 Item 1)
5 130E82530 Staple Sensor
6 – Roll (P/O PL 17.9 Item 1)
7 – Staple Front Corner Sensor (Not
Spared)
8 – Plate (Not Spared)
9 001E59600 Rail (REP 12.10)
10 029K91990 Stapler Assembly (REP 12.11)
11 – Stapler (P/O PL 17.9 Item 10)
12 – Cartridge (P/O PL 17.9 Item 10)
13 – Bracket (Not Spared)
14 962K07440 Stapler Harness
