6/02
4-147
DC1632/2240
REP 14.7, REP 14.8
Repairs and Adjustments
Prelaunch Training/Review

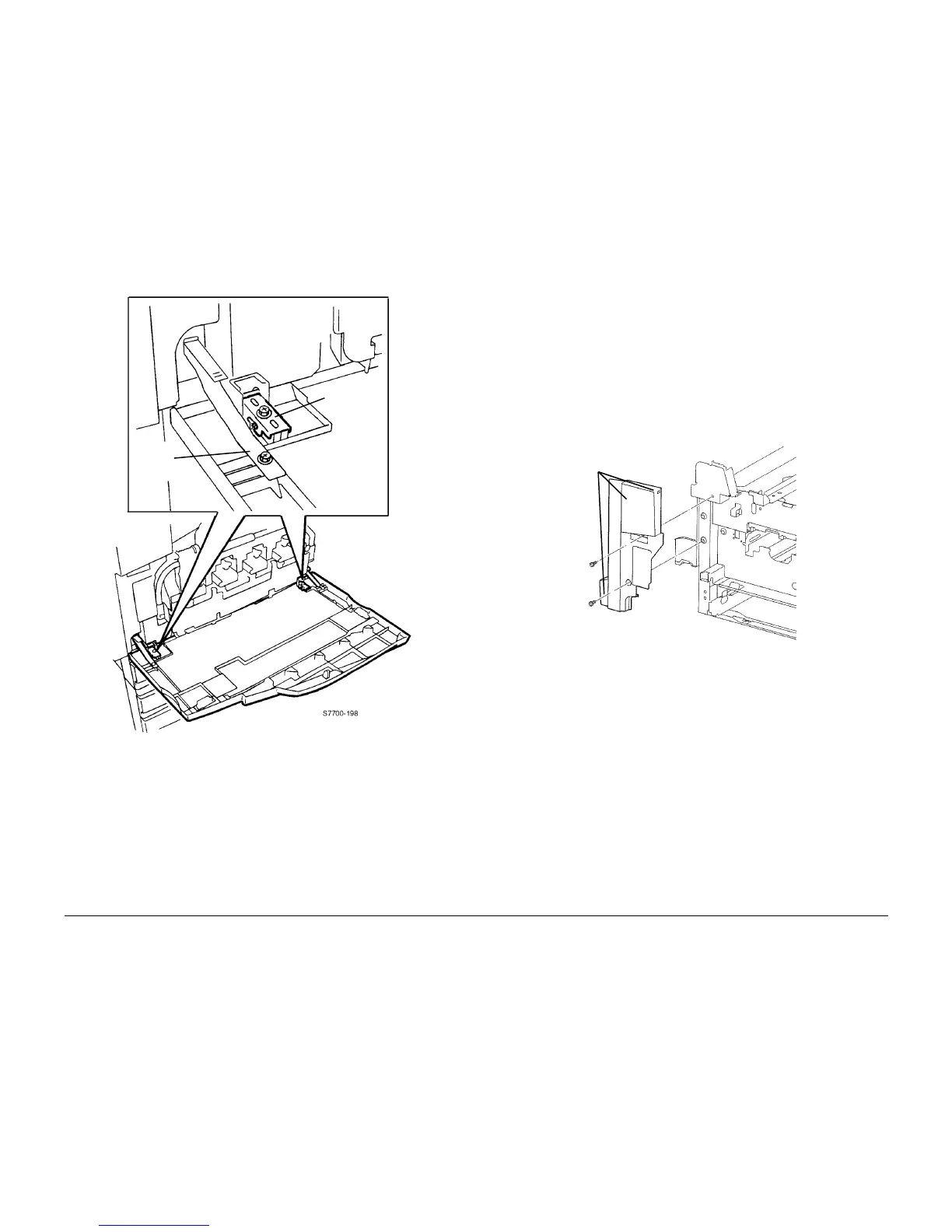

Figure 1 Removing Front Cover
REP 14.8 Fuser Cover
Parts List on PL 10.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (Figure ).
a. Remove Screws (2).
b. Move cover up to release Hidden Tabs (3) and pull out to remove cover.
Figure 1 Removing Fuser Cover
Support
Strap
Hinge Pin
:Locks
Hidden
Tabs
To Next Page
