REP 12.12 Compiler Tray Assembly
Parts List on PL 17.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following parts:
a. Rear Cover (PL 17.5)
b. Stacker Tray (PL 17.1)
c. Right Cover (PL 17.5)
d. Front Cover (PL 17.5)

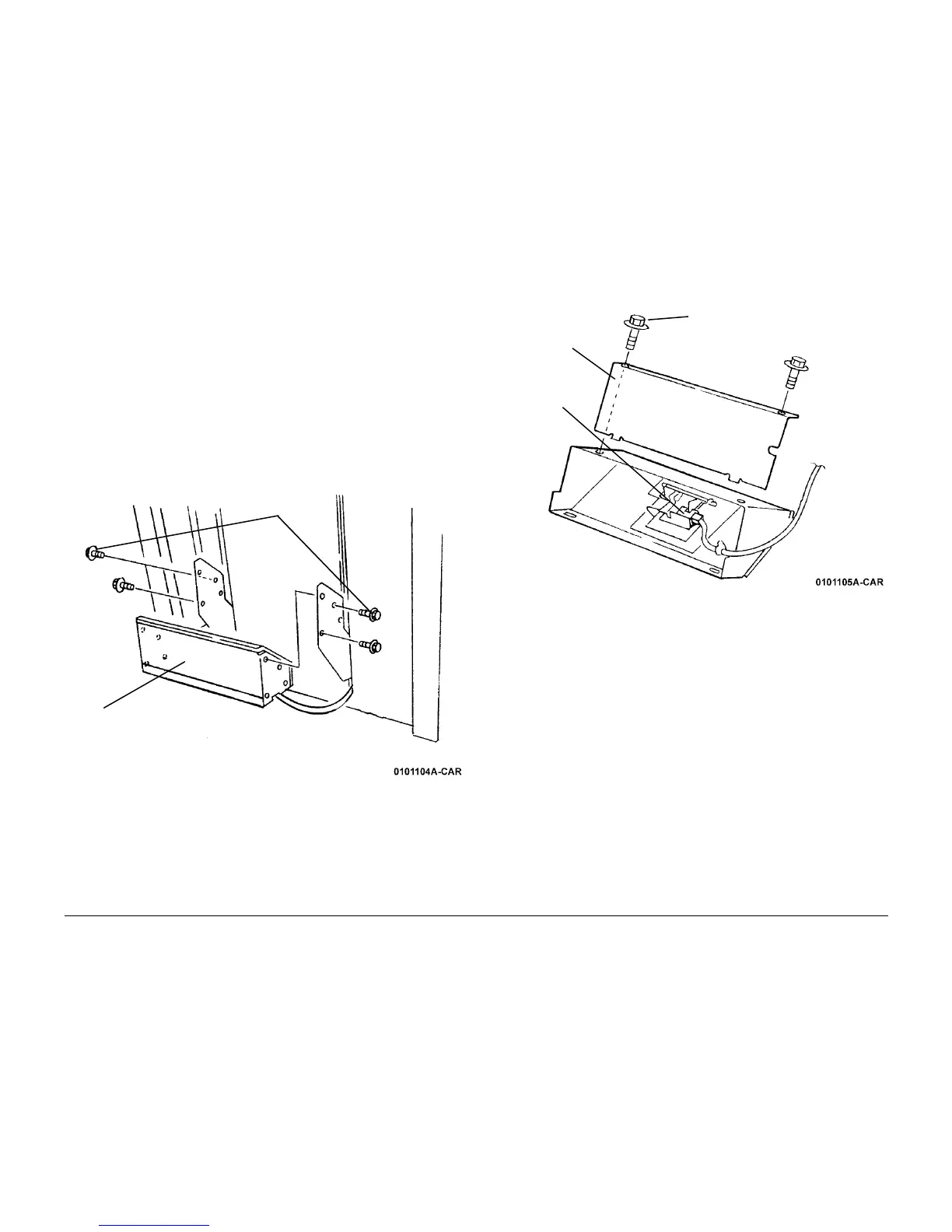

2. Remove the Bracket (Figure 1).
Figure 1 Remove the Bracket
3. Disconnect P/J (Figure 2).
Figure 2 Disconnecting P/J
1
Remove
Screws (4)
2
Remove
Bracket
1
Remove
Screw (2)
2
Remove
Plate
3
Disconnect
P/J
