6/02
4-110
DC1632/2240
REP 12.7
Prelaunch Training/Review
Repairs and Adjustments
REP 12.7 Decurler Roll
Parts List on PL 17.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following parts:
a. Front Cover (PL 17.5)
b. Rear Cover (PL 17.5)
c. Top Cover (PL 17.5)
2. Remove the Arm (Figure 1).

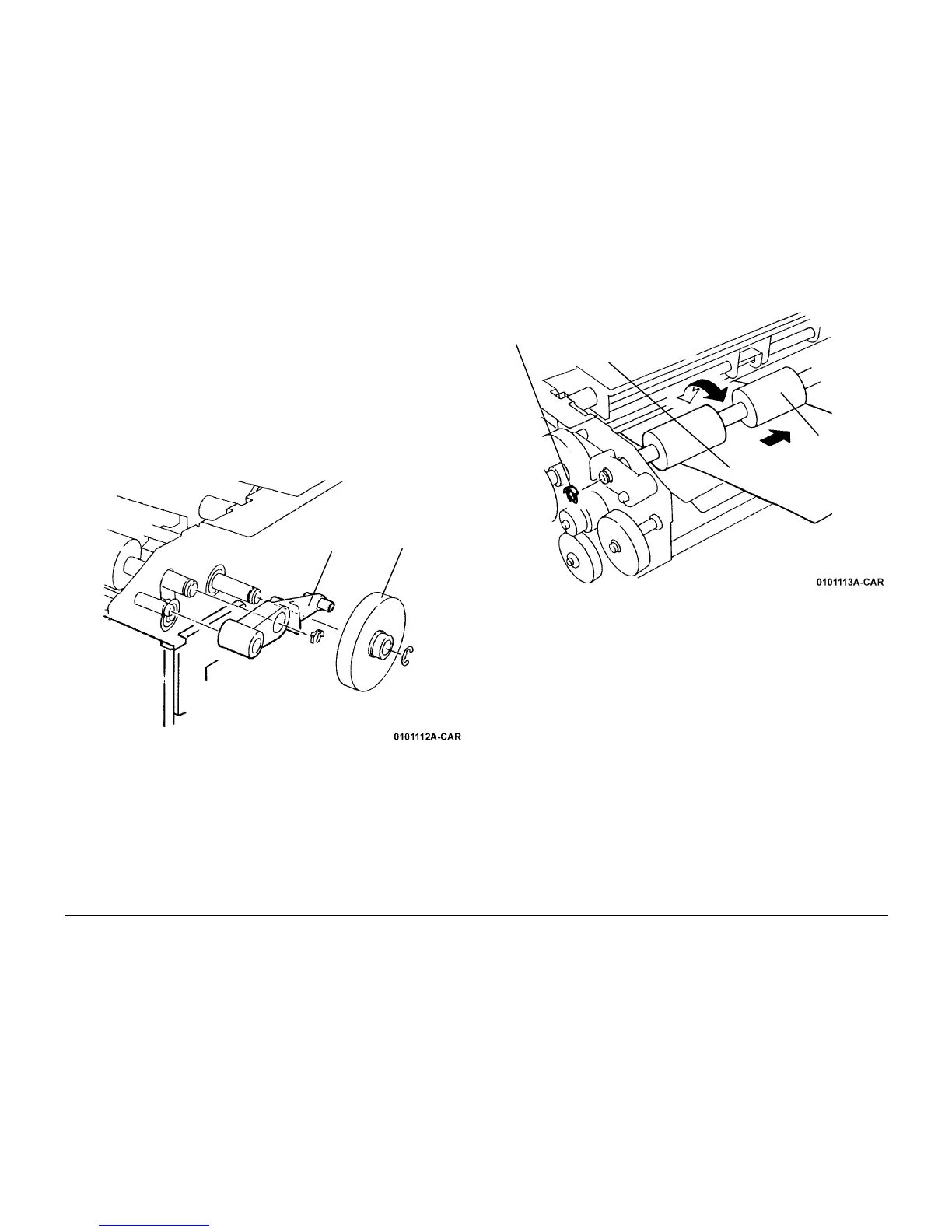

Figure 1 Removing the Arm
3. Remove the Decurler Roll (Figure 2).
Figure 2 Removing the Decurler Roll
1
Remove
Clip and
Gear
2
Remove
Clip and
Arm
1
Remove Clip
2
Insert a sheet of
paper to keep roll-
ers separated
3
Remove
Decurler Roll
To Next Page
