6/02
5-40
DC1632/2240
PL 9.2
Prelaunch Training/Review
Parts List

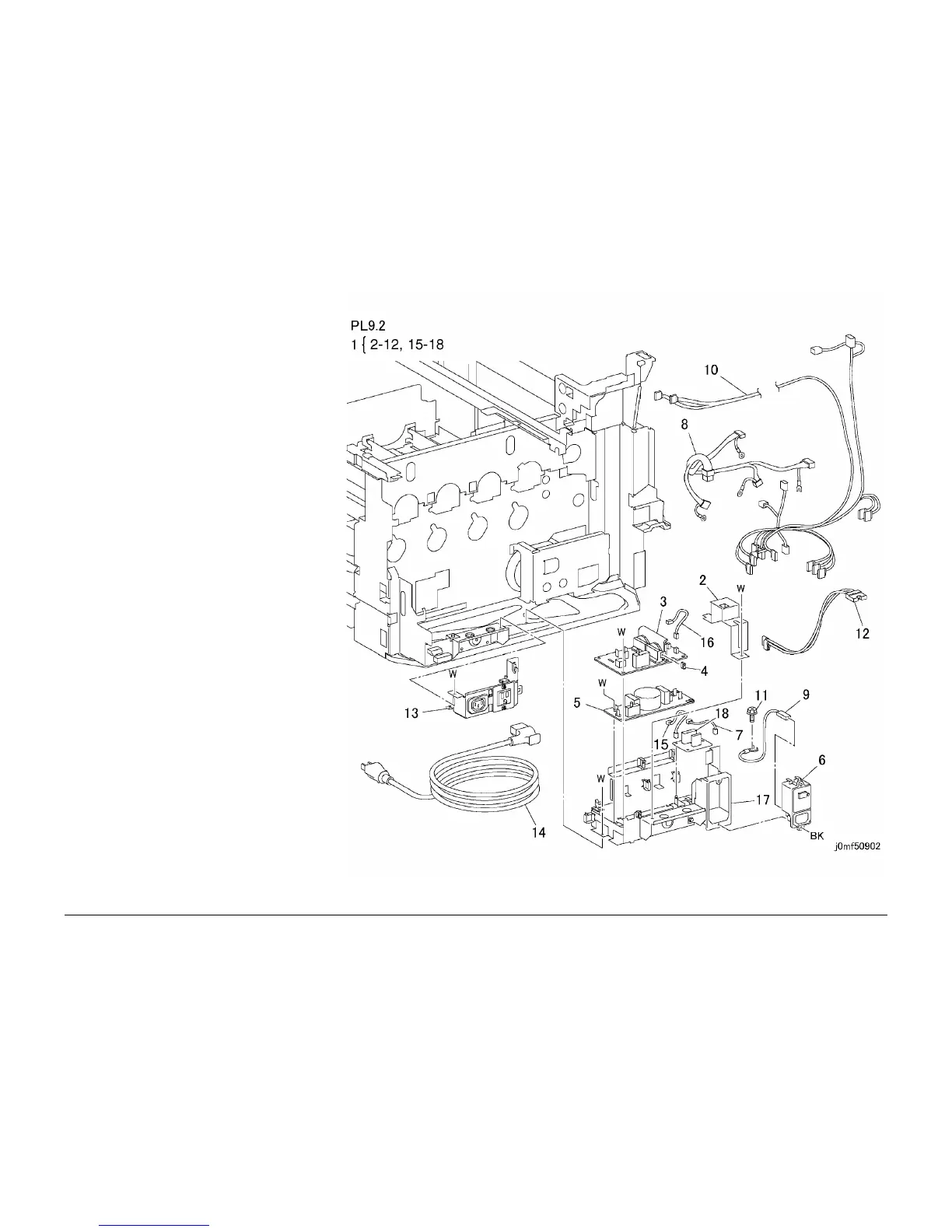

PL 9.2 Electrical Components: 2 of 3
Item Part Description
1 101K38980 AC Power Chassis Assembly
(220V)
– 101K38810 AC Power Chassis Assembly
(110V)
2 – Bracket (P/O PL 9.2 Item 1)
3 160K84820 AC Drive PWB (220V) (REP 1.11)
– 160K76770 AC Drive PWB (110V) (REP 1.11)
4 – Clamp (P/O PL 9.2 Item 1)
5 160K84800 Noise Filter PWB (220V)
– 160K76760 Noise Filter PWB (110V)
6 908W01200 GFI Breaker
7 962K08820 Wire Harness
8 – Wire Harness (P/O PL 9.2 Item 1)
9 – Wire Harness (P/O PL 9.2 Item 1)
10 – Wire Harness (P/O PL 9.2 Item 1)
11 – Screw (P/O PL 9.2 Item 1)
12 – Wire Harness (P/O PL 9.2 Item 1)
13 074K94320 Outlet Panel
14 917W00723 Power Cord (110V)
– 117E94370 Power Cord (220V)
15 162K69330 Wire Harness
16 – Wire Harness (P/O PL 9.2 Item 1)
17 – AC Power Chassis (P/O PL 9.2
Item 1)
18 160K77201 Delay PWB
To Next Page
