6/02
4-100
DC1632/2240
REP 12.2
Prelaunch Training/Review
Repairs and Adjustments
REP 12.2 H Transport Belt
Parts List on PL 17.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the H Transport Assembly (REP 12.1).
2. Remove the following parts:
a. H Transport Front Cover (PL 17.3)
b. H Transport Rear Cover (PL 17.3)
c. Stop (PL 17.3)
3. Remove the H Transport Cover (Figure 1).

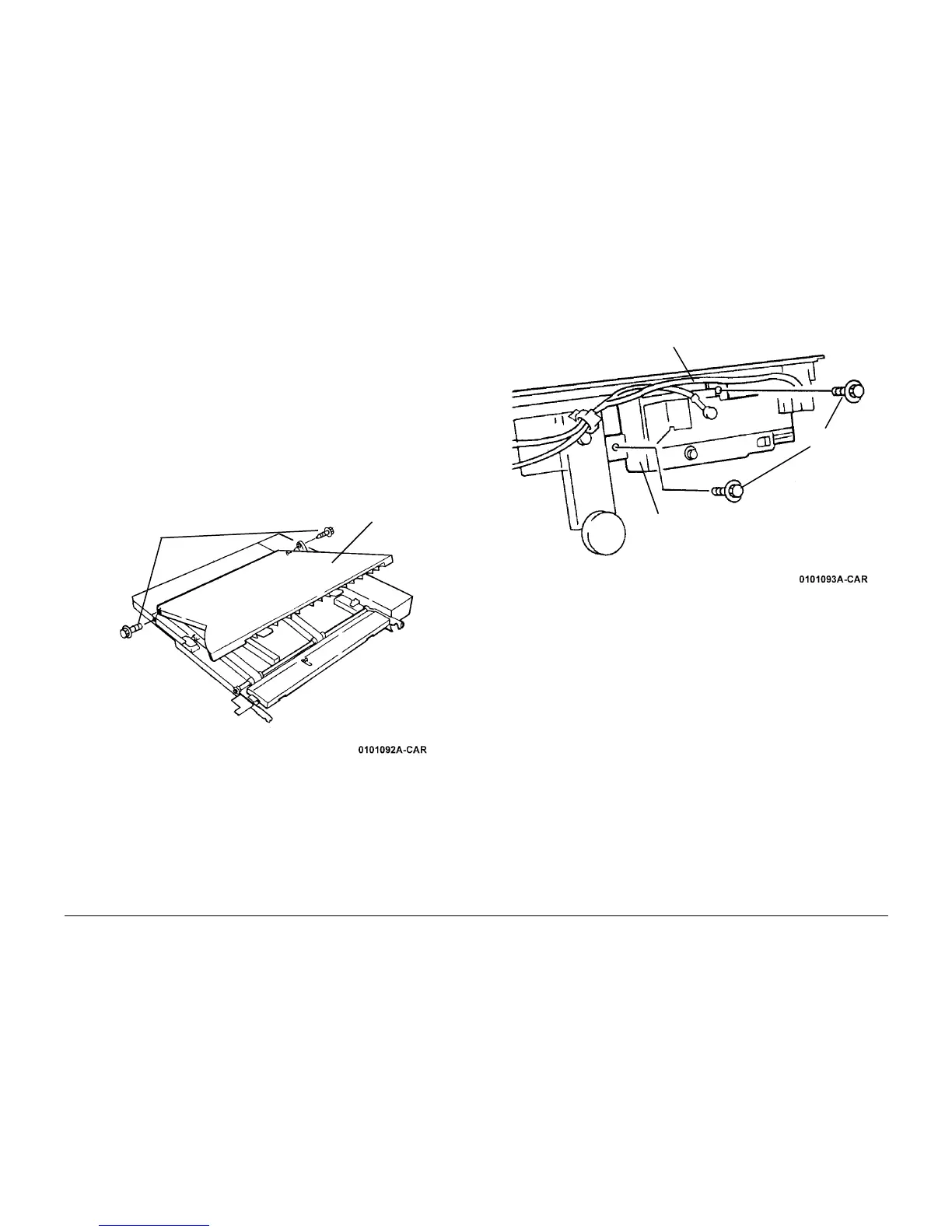

Figure 1 Removing the H Transport Cover
4. Remove the Gate In Solenoid Assembly (Figure 2).
Figure 2 Removing the Gate In Solenoid Assembly
1
Remove
Screw (2)
2
Remove
Cover
2
Remove
Screws (2)
1
Disconnect Wires
as required
3
Remove Sole-
noid Assembly
To Next Page
