Xerox DocuColor 1632 Service Manual

6/02
5-32
DC1632/2240
PL 5.5
Prelaunch Training/Review
Parts List

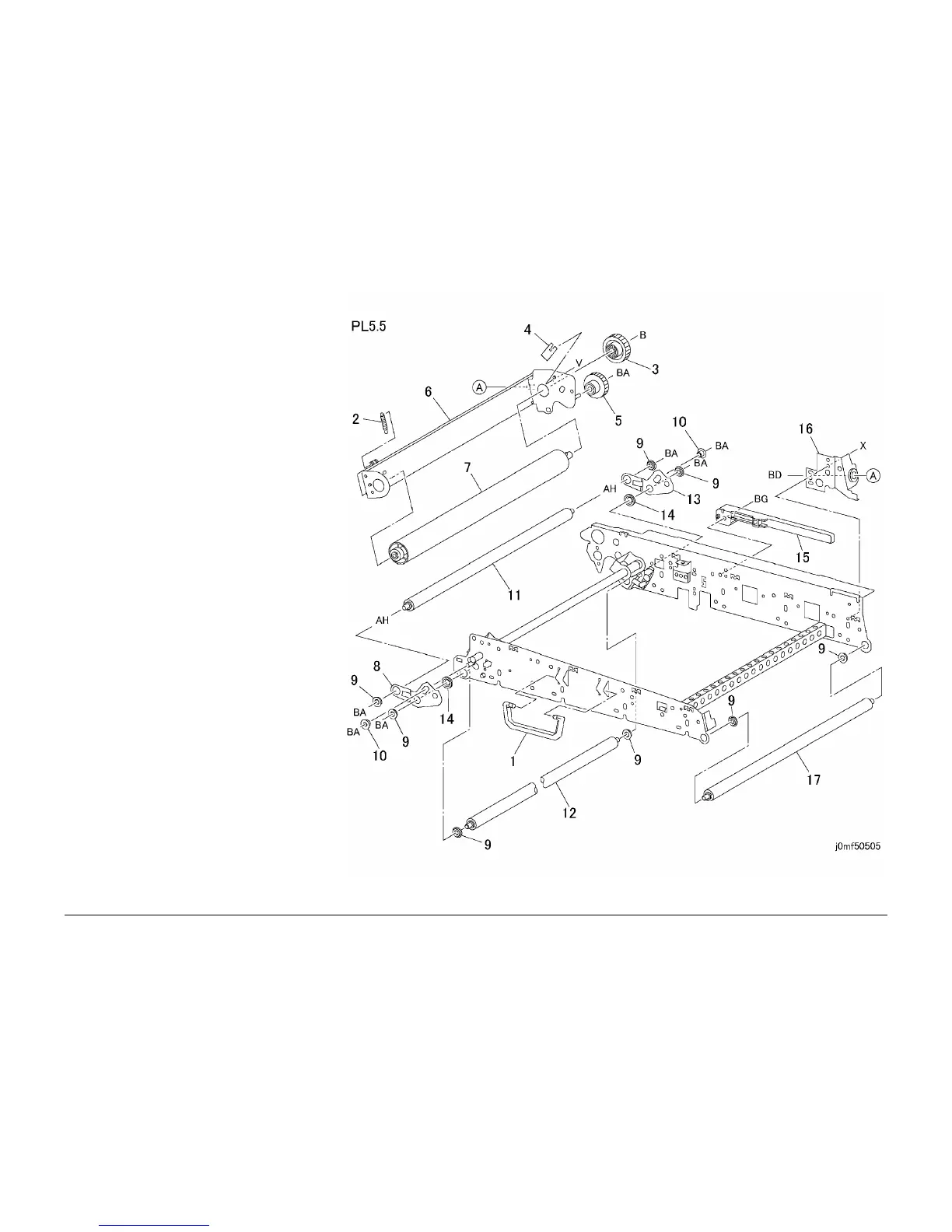

PL 5.5 IBT Frame Assembly: 2 of 2
Item Part Description
1 – Handle (Not Spared)
2 – Spring (Not Spared)
3 – Gear (Not Spared)
4 – Plate (Not Spared)
5 – Gear (Not Spared)
6 – Bracket (Not Spared)
7 – Top Roll (Not Spared)
8 – Front Bracket (Not Spared)
9 – Bearing (Not Spared)
10 – Bearing (Not Spared)
11 – Roll (Not Spared)
12 – Roll (Not Spared)
13 – Rear Bracket (Not Spared)
14 – Collar (Not Spared)
15 – Latch (Not Spared)
16 – Bracket (Not Spared)
17 – Roll (Not Spared)
